AMJ 78T Series Tilt & Turn Window

AMJ 78T Series | Heavy-Duty Thermal Break Tilt & Turn Window

The AMJ 78T Series is engineered for the premium North American market, offering exceptional thermal insulation with its 78.3mm depth profile. The tilt-turn functionality provides superior security and flexible ventilation for modern residential and commercial buildings.

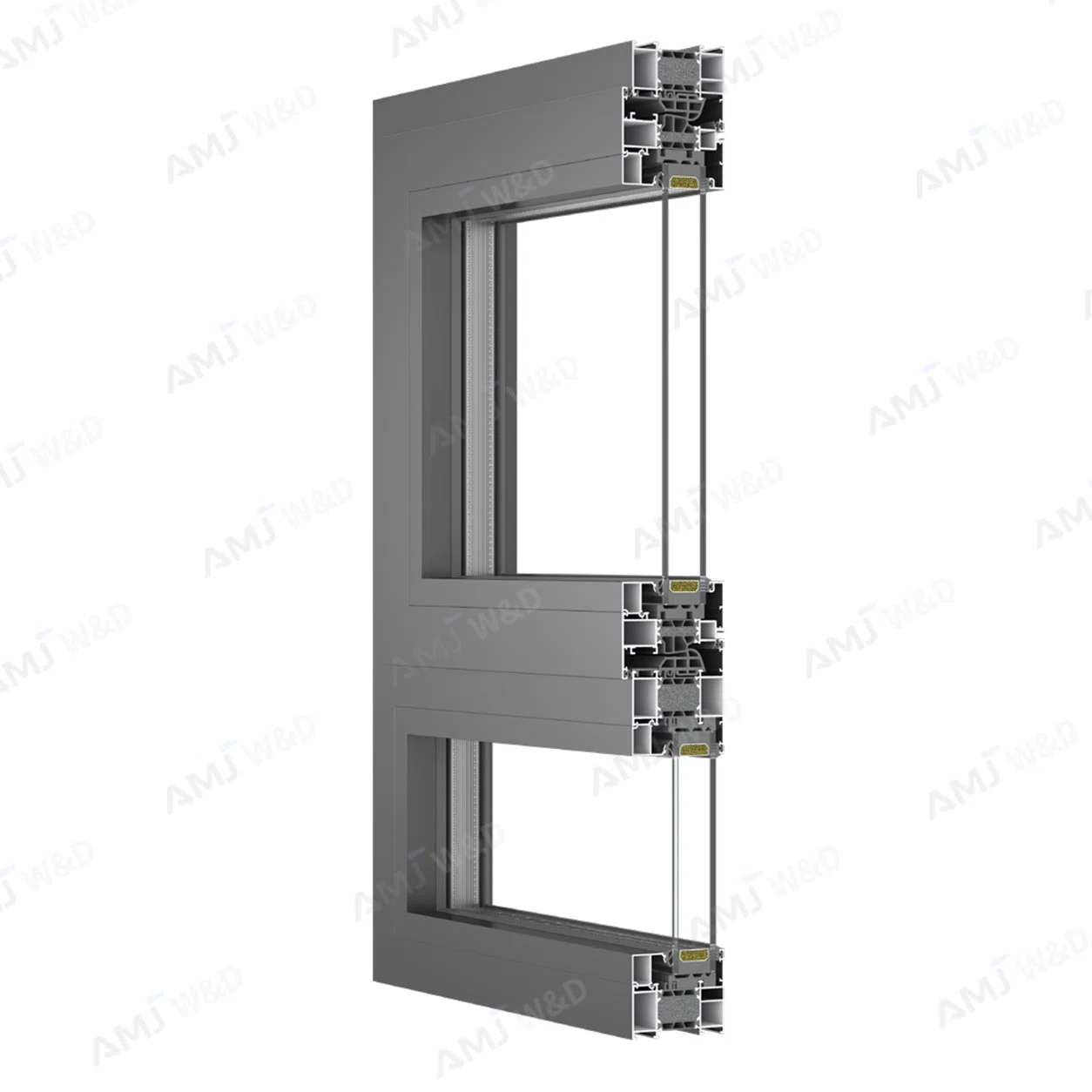

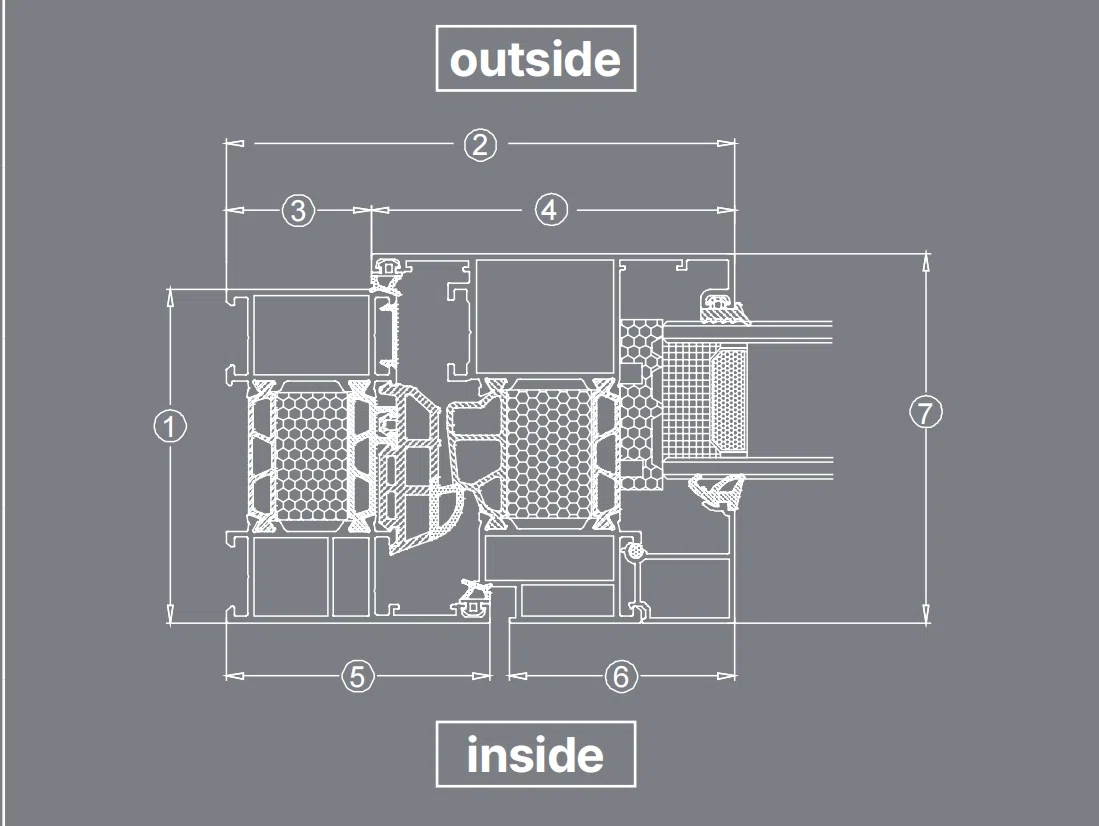

Technical Details (Section Specifications):

Depth of profile: 78.3mm
Visible Width: 119.5mm
Frame Width: 34mm
Sash Width: 85.5mm
Total Frame Width: 62mm
Total Sash Width: 53mm
Inner Sash Width: 87mm

Key Features:

Flush Design: The sash and frame are on the same plane for a seamless, high-end look.

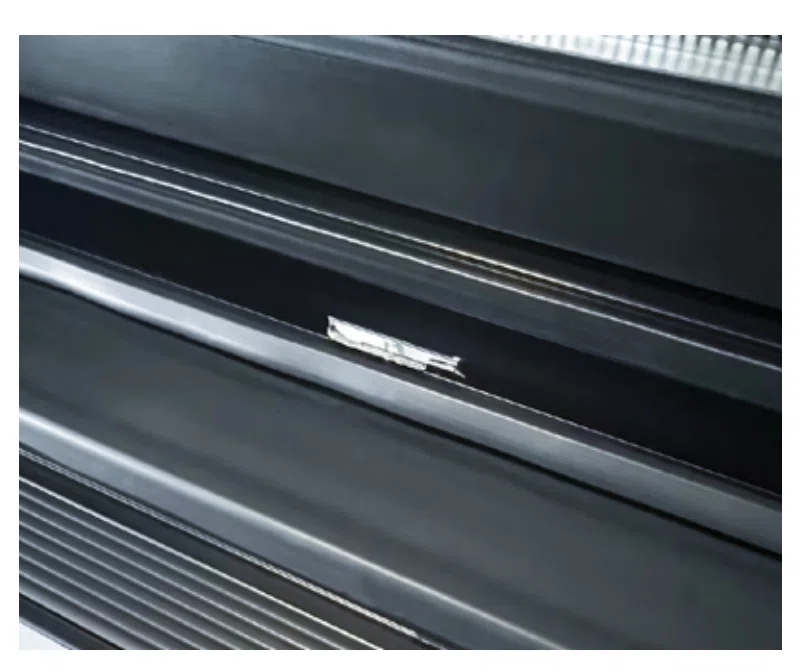

Non-return Drainage System: Specialized design that prevents bugs and pests from entering while ensuring rapid water discharge.

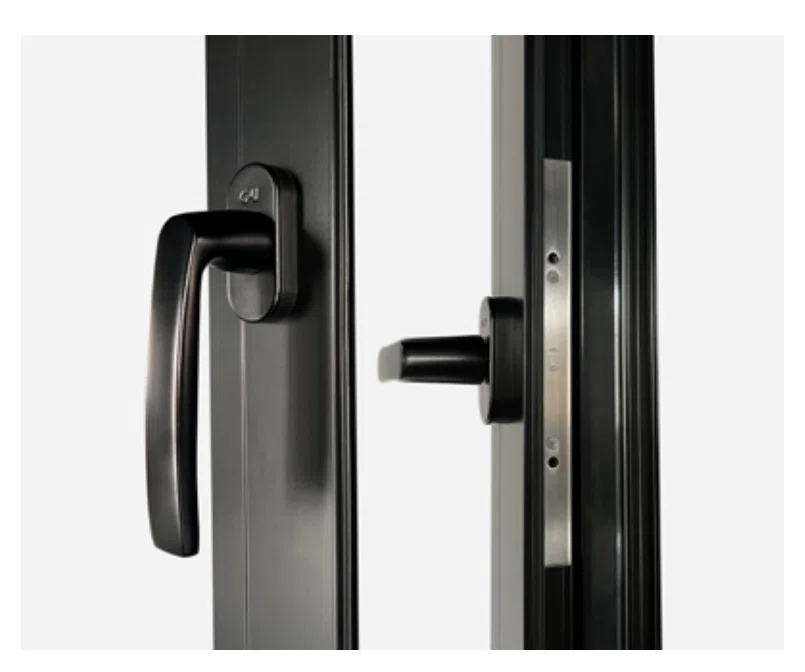

Advanced Security: Adopts the imported G-U multi-point lock system for ultimate anti-forced entry protection.
High-Efficiency Glazing: Standard 27mm Argon-filled space for maximum energy savings in extreme climates.

Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?

Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.

What should I send for a quotation?

Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.

Can you customize products according to project drawings?

Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.

Are your products suitable for export projects?

Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.

Do you have certifications or test reports?

Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.

What types of aluminum windows and doors do you offer?

We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.

How do you control quality before shipment?

Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.

How do you package products for export?

We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.

What is your normal production lead time?

Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.

What warranty and after-sales support do you provide?

AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.

...
