AMJ 78T Thermal Break Aluminum Tilt and Turn Window

The AMJ 78T Series is a thermal break aluminum tilt and turn window designed for North American residential, apartment, villa, and light commercial projects. With a 78.3mm frame depth, 1.8mm aluminum profile thickness, Low-E argon-filled tempered glass, German G-U hardware, and NFRC support, this window system delivers flexible ventilation, reliable sealing, and strong thermal performance.

The tilt and turn opening design supports daily ventilation and convenient inward access for cleaning. Custom sizes, colors, glass options, fixed screen options, and installation methods are available according to project drawings.

Product Advantages

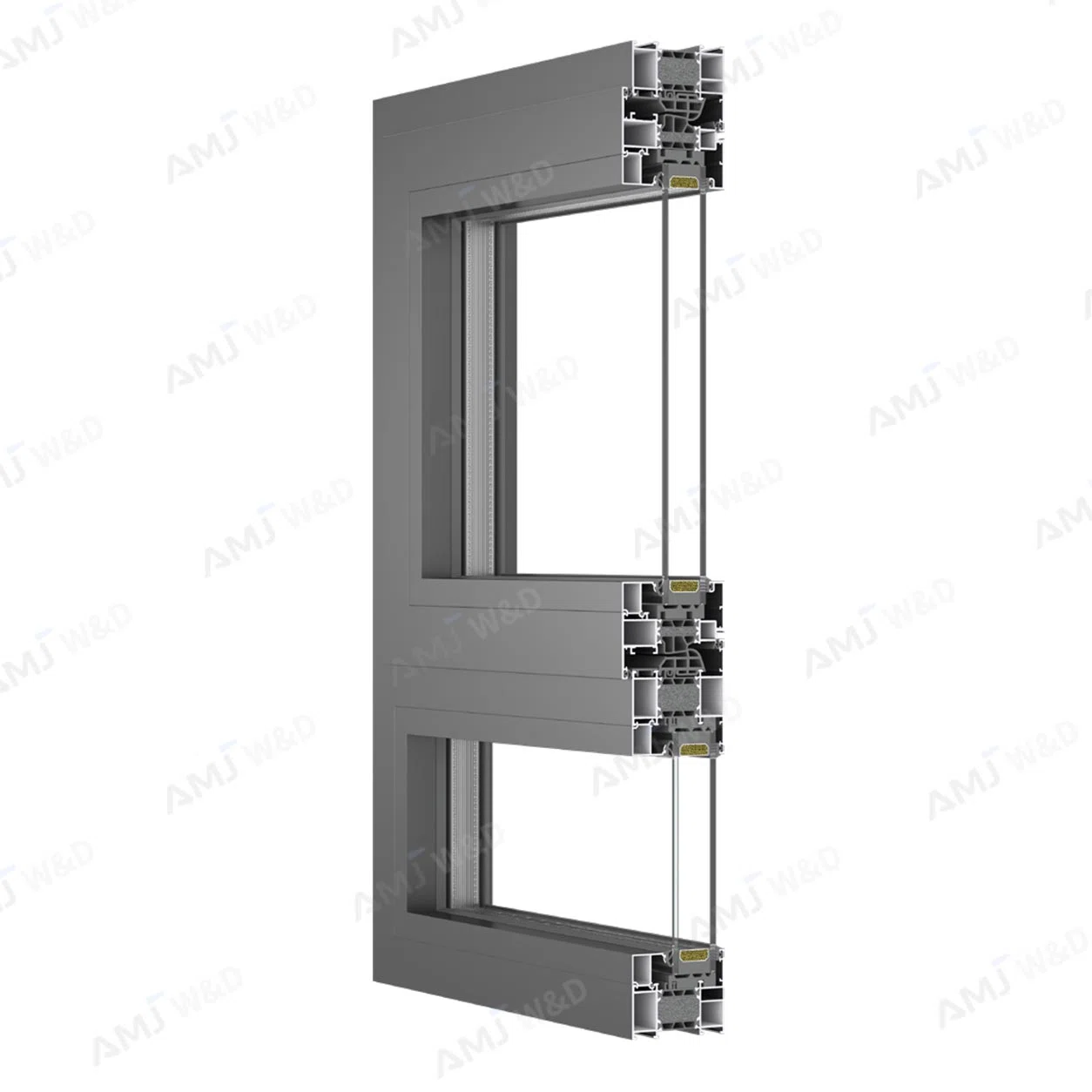

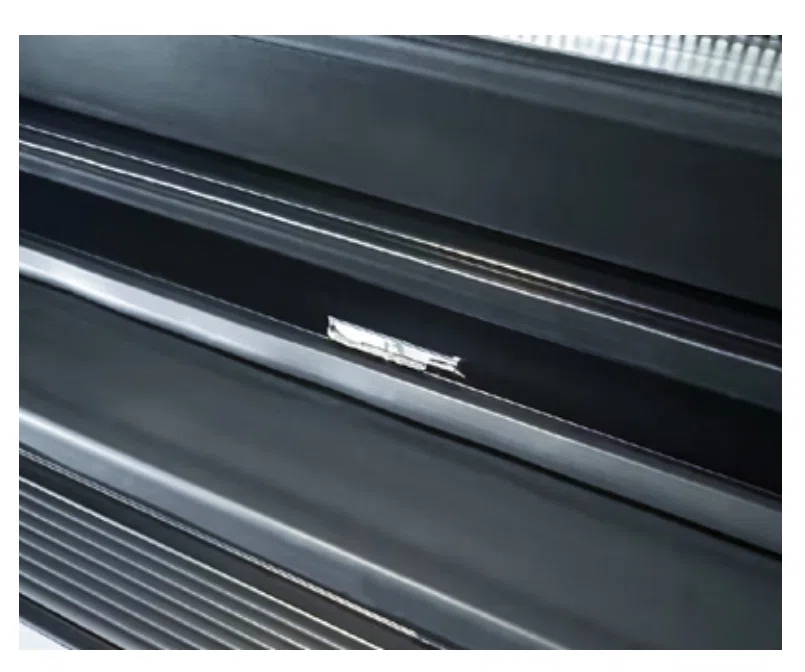

78.3mm Thermal Break Frame

78.3mm frame depth with a 35.3mm thermal break strip helps improve insulation and comfort.

Tilt and Turn Opening

Dual opening function provides secure ventilation and easy inward access for cleaning.

Low-E Argon Glass

Standard 5mm Low-E + 27A Argon + 5mm tempered clear glass supports stronger thermal performance.

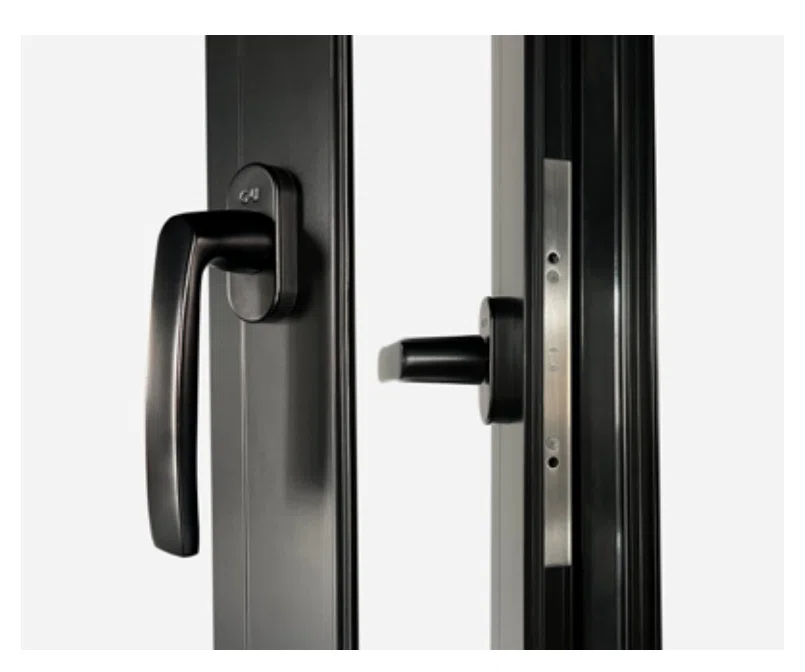

German G-U Hardware

Standard German G-U hardware in black or white supports smooth operation and stable locking.

Strong Weather Performance

Designed for 700Pa water tightness, 0.5m³/(m·h) air tightness, and wind pressure resistance up to 5000Pa.

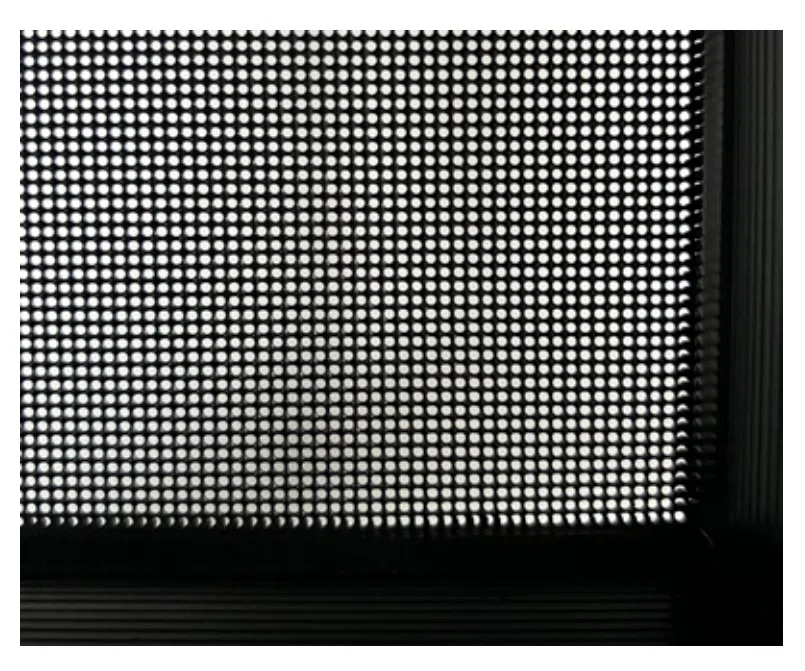

Fixed Screen Options

Can be matched with fixed stainless steel mesh, fiberglass mesh, or aluminum mesh for ventilation and insect protection.

Technical Specifications

Product Name	AMJ 78T Series Tilt & Turn Window
Series	AMJ 78T Thermal Break Tilt and Turn Window
Profile Thickness	1.8mm

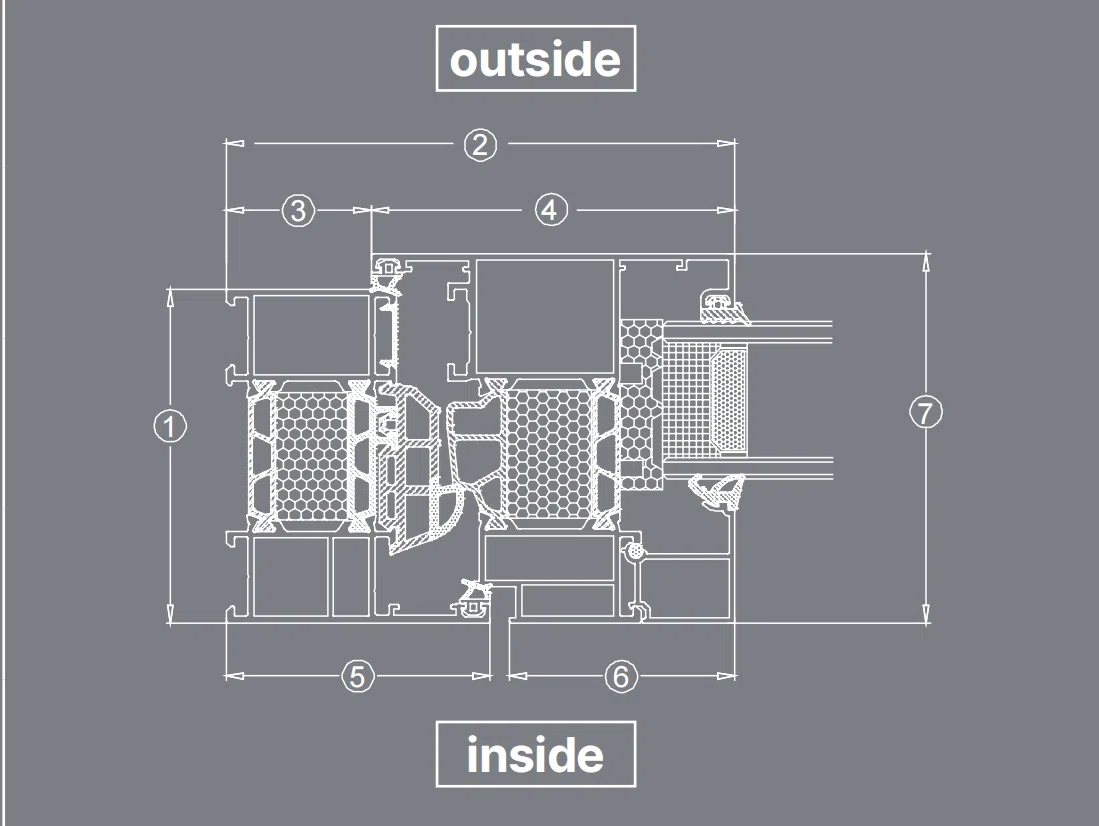

Frame Depth	78.3mm
Frame / Sash / Mullion	Frame 62mm / Sash 70.5mm / Mullion 84mm
Thermal Break Strip	35.3mm
Sash Size Range	500–1000mm width / 500–2800mm height
Maximum Sash Weight	100kg
Standard Glass	5mm Low-E + 27A Argon + 5mm Tempered Clear Glass
Optional Glass	Insulated glass thickness up to 45mm
Standard Hardware	German G-U Hardware, Black / White
Optional Hardware	HK Kinlong Hardware, Black / White
Flyscreen Option	Fixed Stainless Steel Mesh / Fiberglass Mesh / Aluminum Mesh
Installation Options	Nail Fin / Installation Brackets

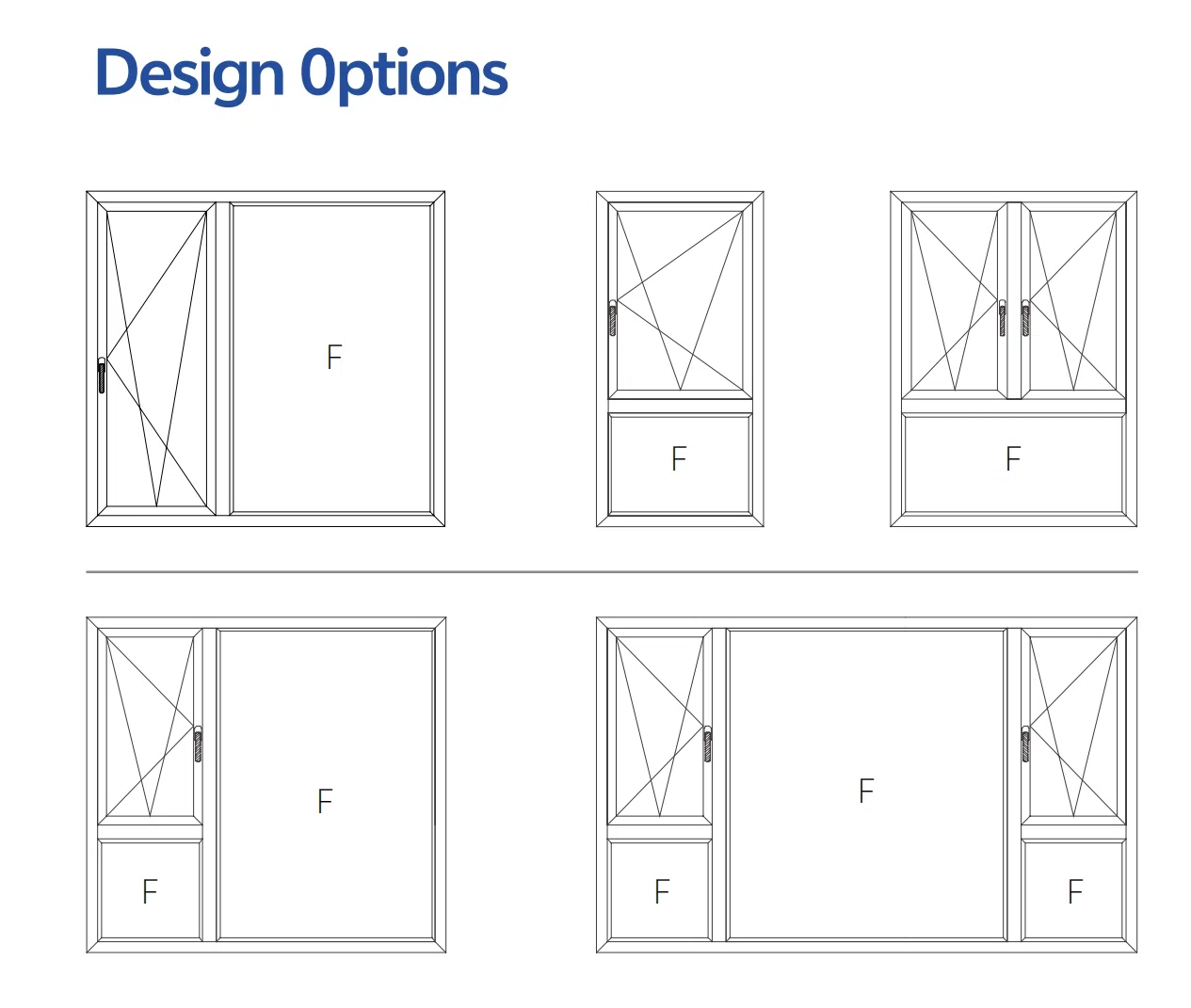

Available Designs	Single Tilt and Turn / Tilt and Turn with Fixed Panel / Fixed Window / 90° and 135° Corner Window
Certification	NFRC Certified / Suitable for U.S. Market

Product Performance

≥1.7 W/㎡·K U-Value

700Pa Water Tightness

0.5m³/(m·h) Air Tightness

≤5000Pa Wind Pressure Resistance

35dB Sound Insulation

Application

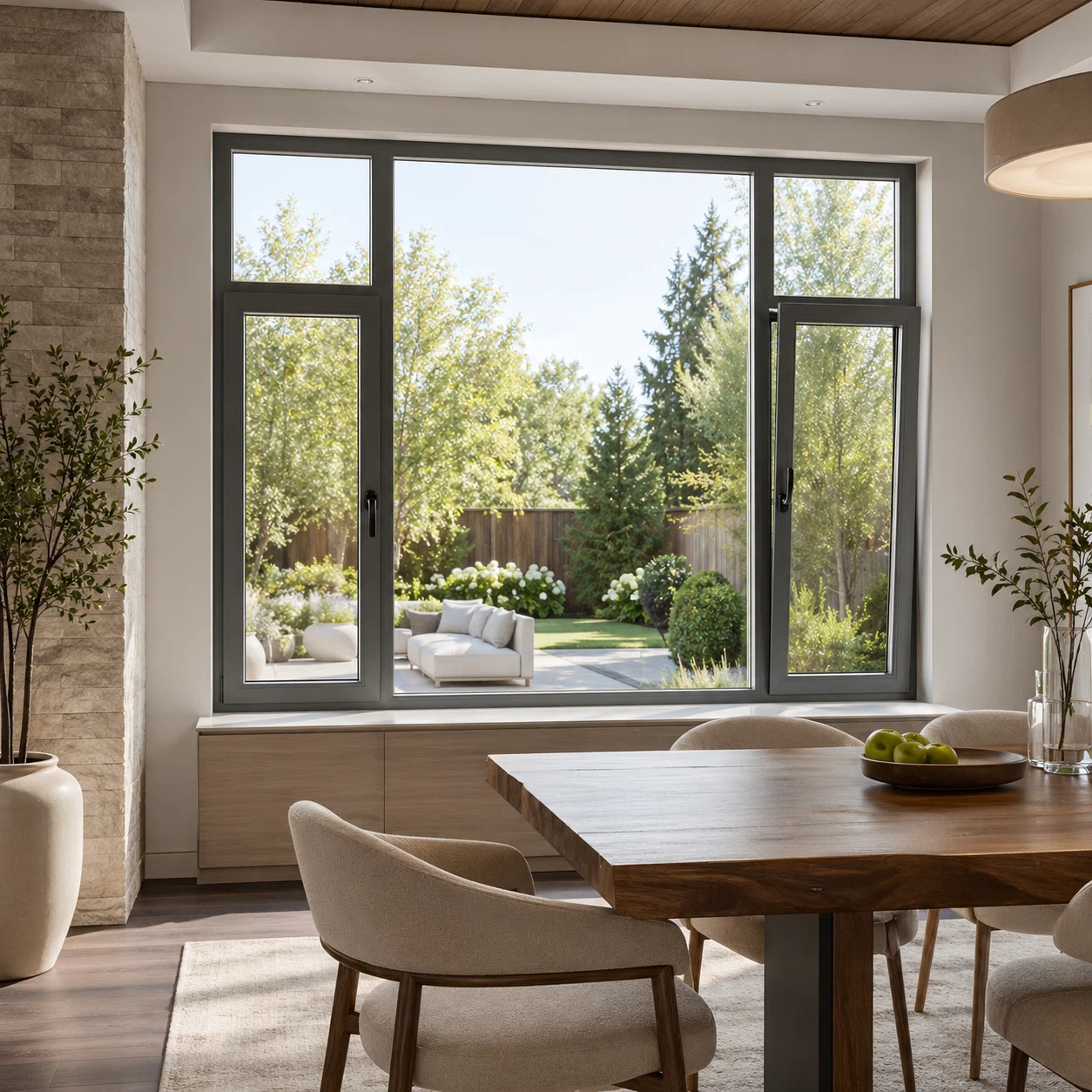

The AMJ 78T tilt and turn window is suitable for apartments, villas, modern homes, and light commercial buildings that require flexible ventilation, thermal insulation, easy cleaning, and a clean architectural appearance.
