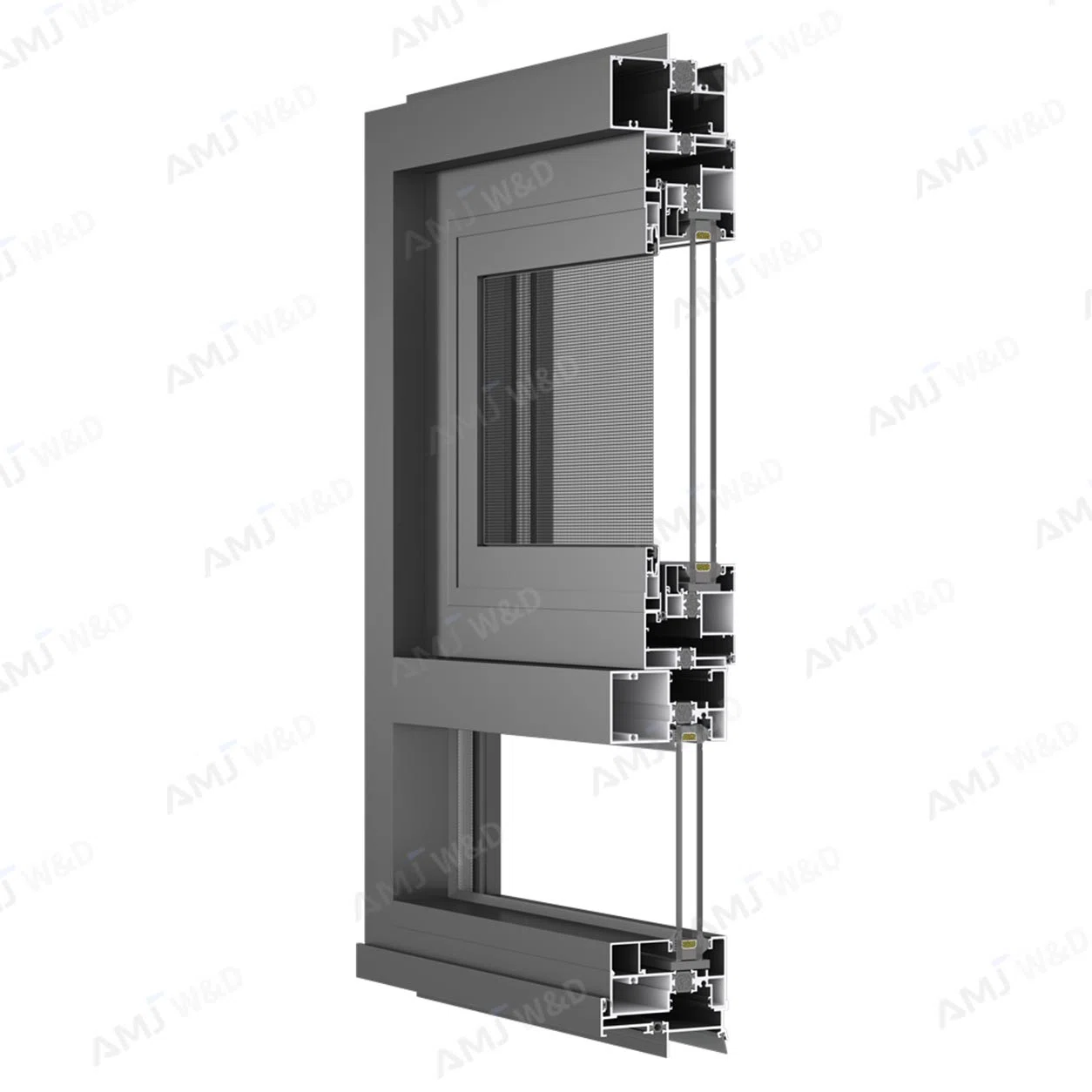

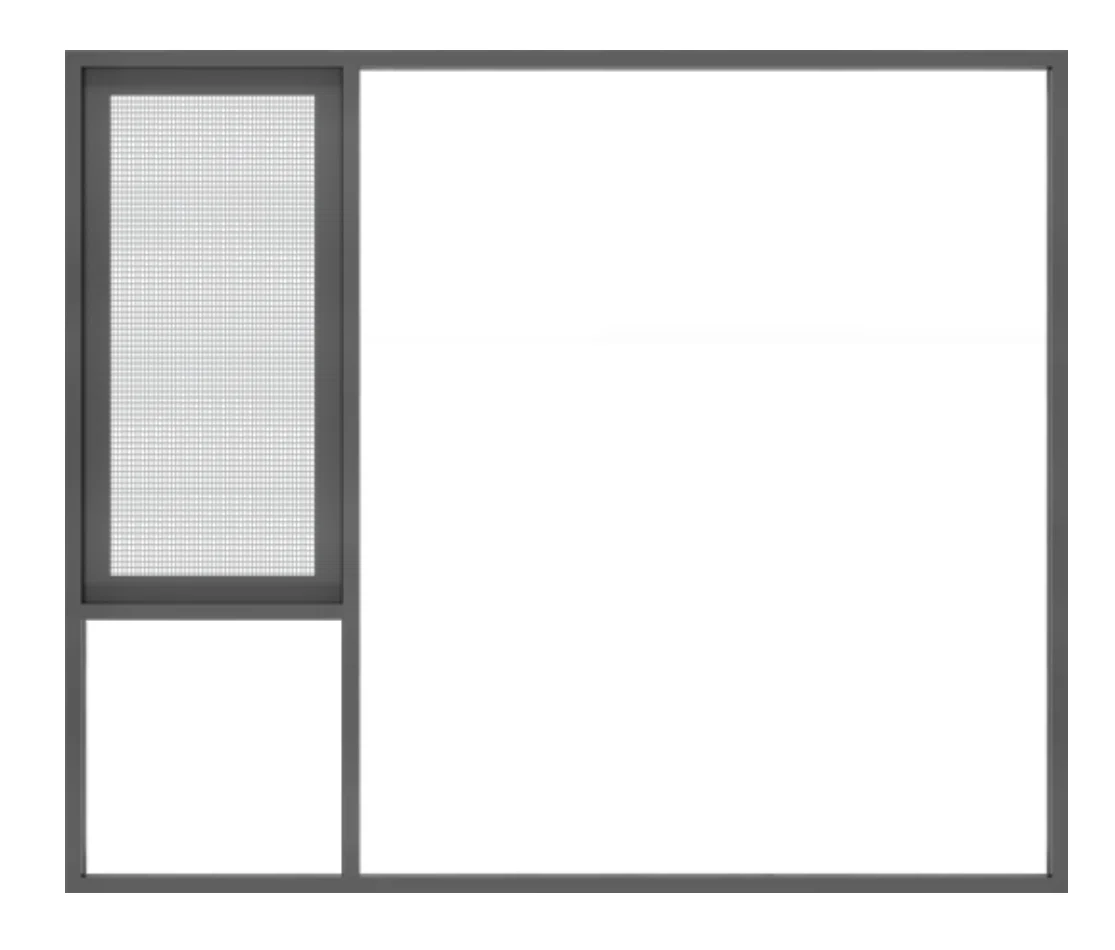

AMJ 100T Thermal Break Aluminum Awning Window

The AMJ 100T Series is a thermal break aluminum awning window with American crank opening hardware, designed for residential, apartment, villa, and light commercial projects. With a 102mm frame depth, 2.0mm aluminum profile thickness, Low-E argon-filled tempered glass, and fixed screen options, this window provides controlled ventilation, practical sealing, and reliable weather performance.

It can be customized as a single awning window, single outward opening window, fixed window, opening with fixed panel, or window with fixed screen according to project requirements.

Product Advantages

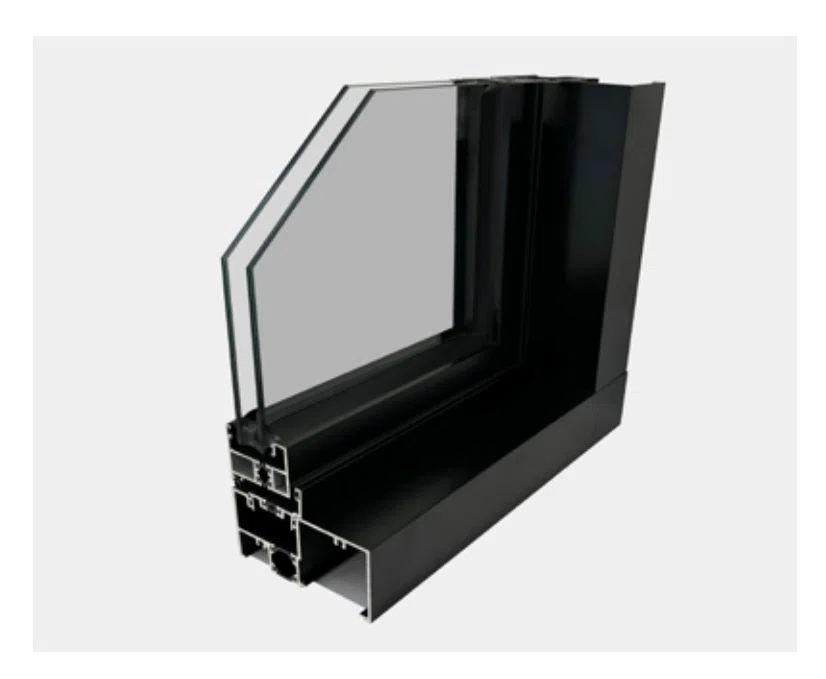

102mm Thermal Break Frame

102mm frame depth with thermal break structure supports residential and project-based construction.

2.0mm Aluminum Profile

2.0mm profile thickness provides stronger structural support for daily use.

Low-E Argon Glass

Standard 5mm Low-E + 12A Argon + 5mm tempered clear glass supports thermal performance.

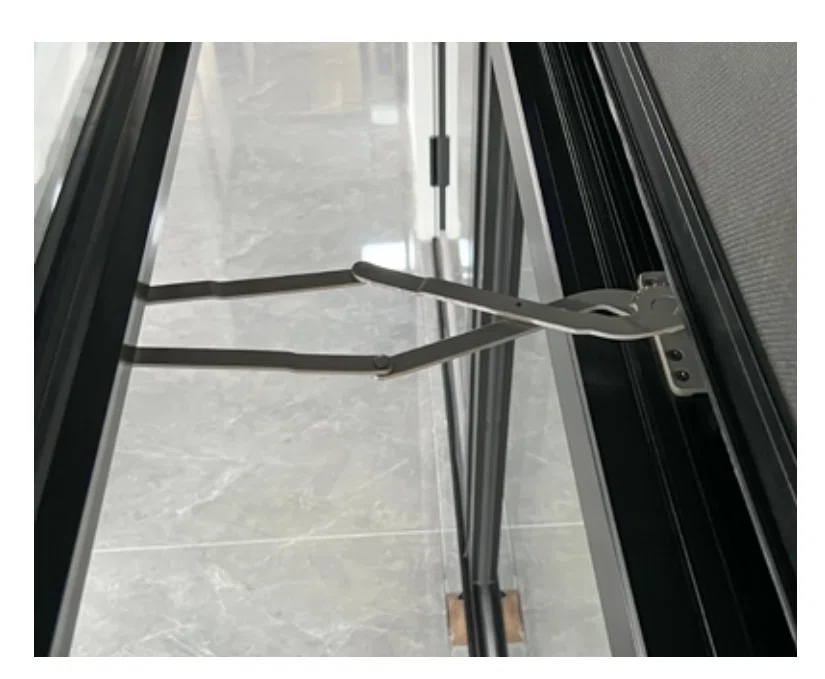

American Crank Hardware

Crank opening hardware allows smooth and controlled awning window operation.

600Pa Water Tightness

Designed with 600Pa water tightness, 0.8m³/(m·h) air tightness, and wind pressure resistance up to 4000Pa.

Flexible Window Designs

Available as single awning, single outward opening, fixed window, opening with fixed panel, and fixed screen design.

Technical Specifications

Product Name	AMJ 100T Series Awning Window
Series	AMJ 100T Thermal Break American Crank Awning Window
Profile Thickness	2.0mm

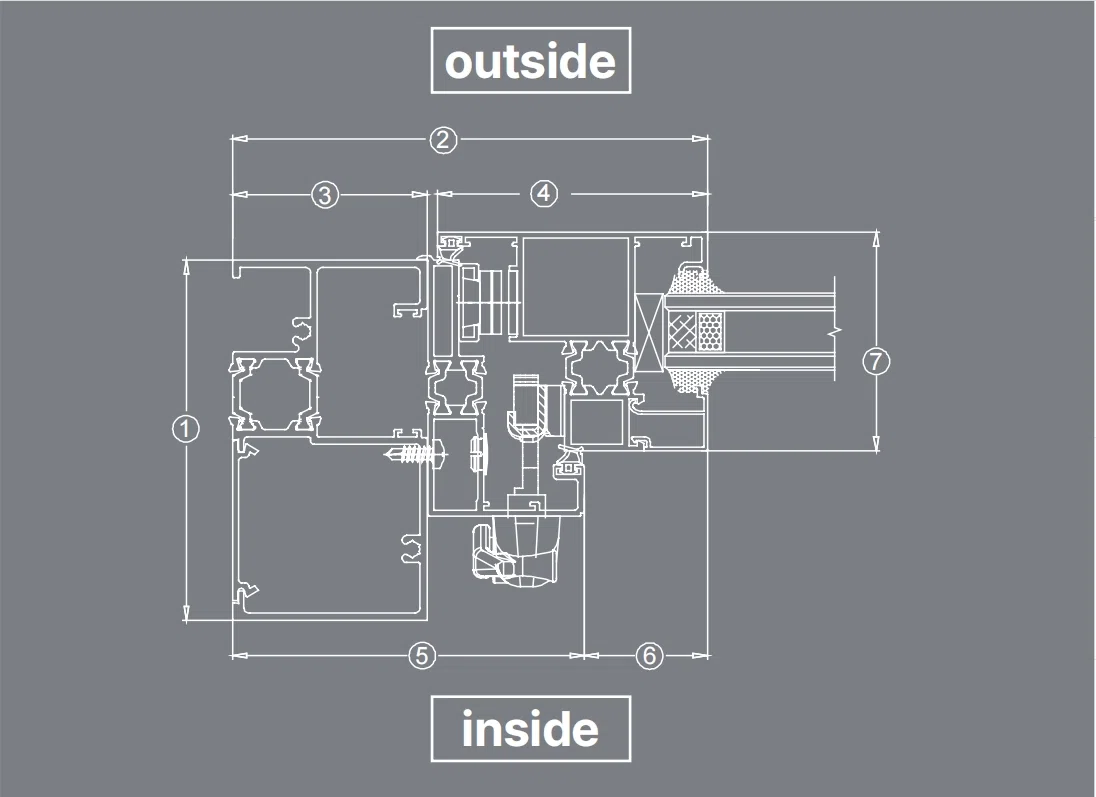

Frame Depth	102mm
Visible Frame / Sash / Mullion	Visible frame 55mm / Sash 76.4mm / Mullion 55mm
Thermal Break Strip	Frame 20mm / Sash and conversion frame 14.8mm
Awning Sash Size Range	450–1000mm width / 600–1800mm height
Maximum Sash Weight	55kg for awning sash
Standard Glass	5mm Low-E + 12A Argon + 5mm Tempered Clear Glass
Optional Glass	Insulated glass thickness up to 26mm

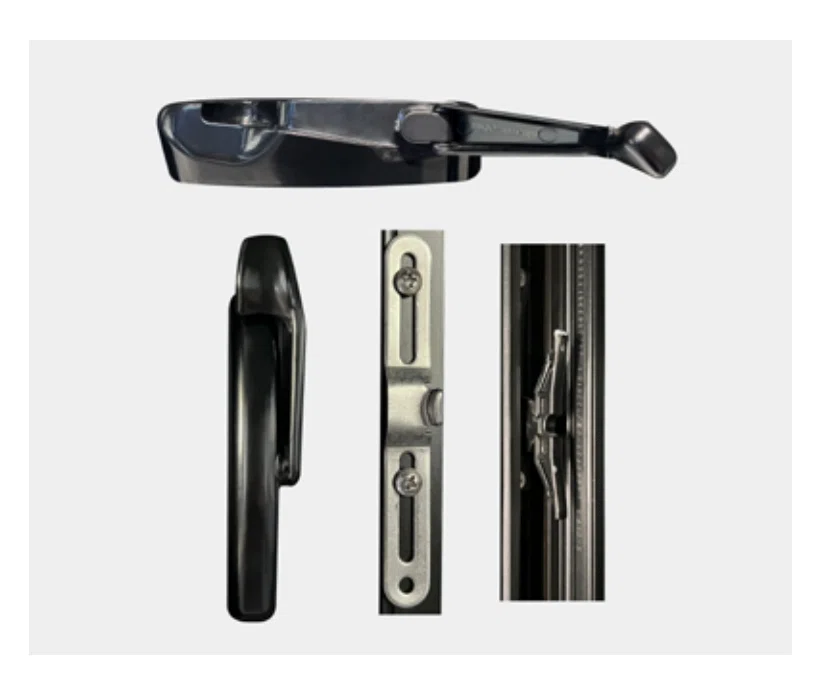

Standard Hardware	American Crank Hardware, Black / White

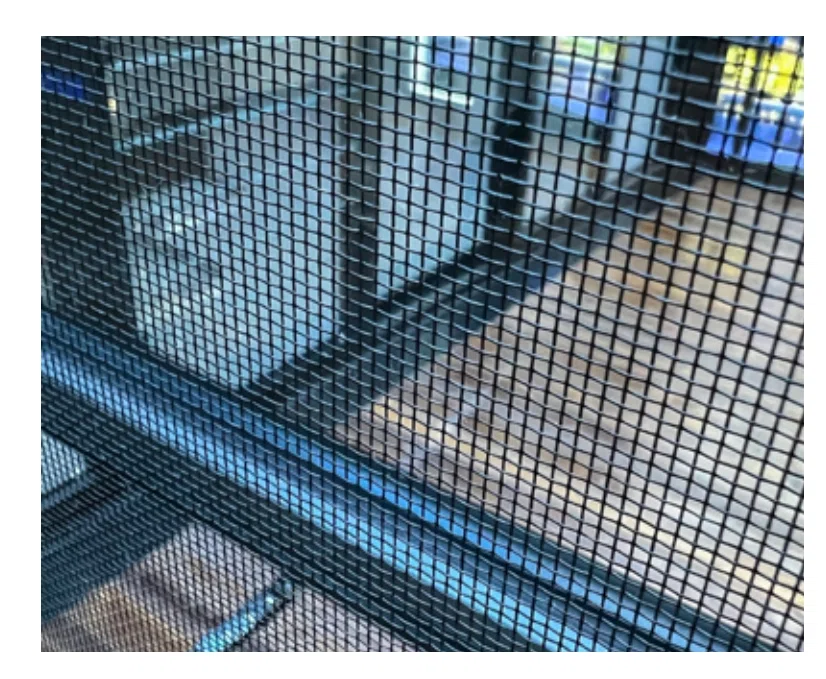

Flyscreen Option	Fixed Stainless Steel Mesh / Fiberglass Mesh / Aluminum Mesh
Installation Options	Nail Fin / Installation Brackets / Sub-frame with Angle Aluminum

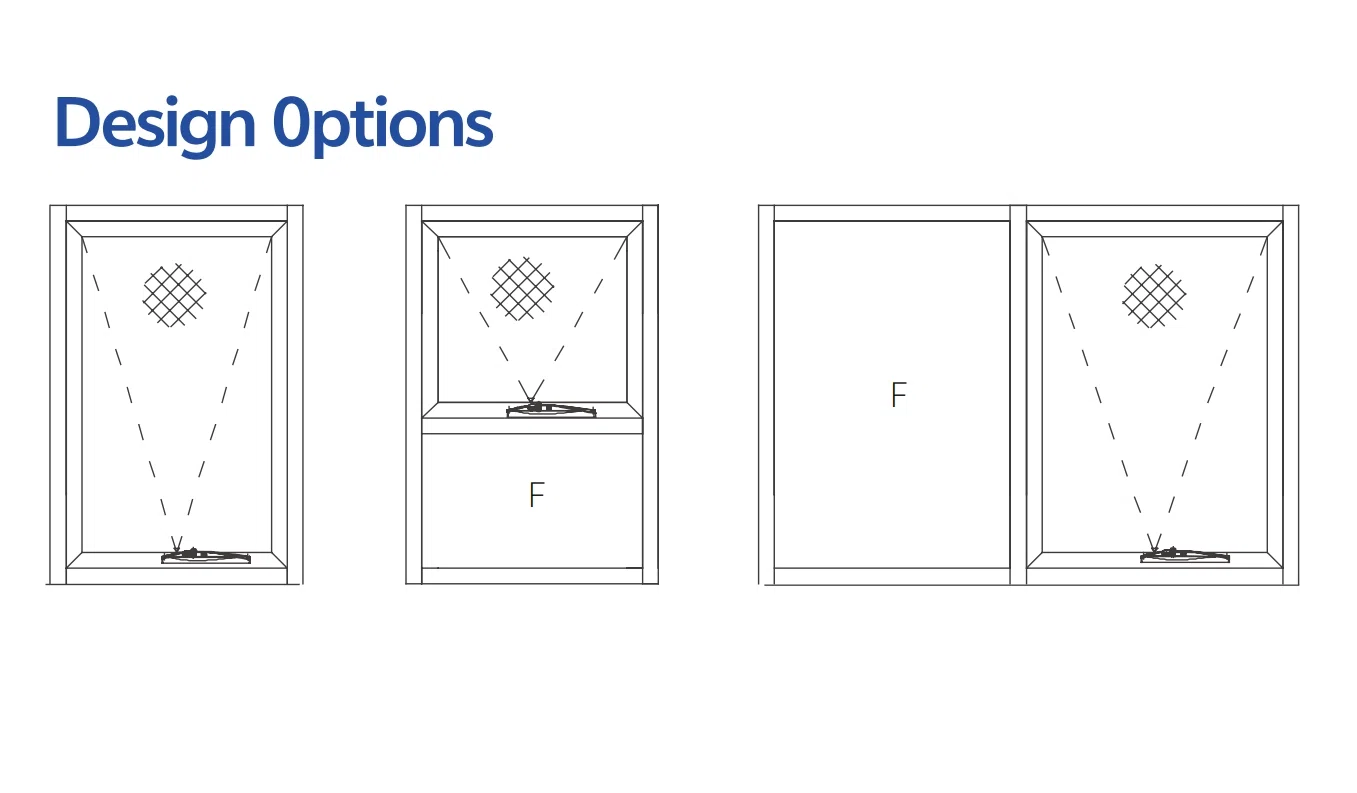

Available Designs	Single Awning / Single Outward Opening / Fixed Window / Opening with Fixed Panel / Fixed Screen Window
Maximum Sash Area	1.8㎡

Product Performance

≥2.9 W/㎡·K U-Value

600Pa Water Tightness

0.8m³/(m·h) Air Tightness

≤4000Pa Wind Pressure Resistance

33dB Sound Insulation

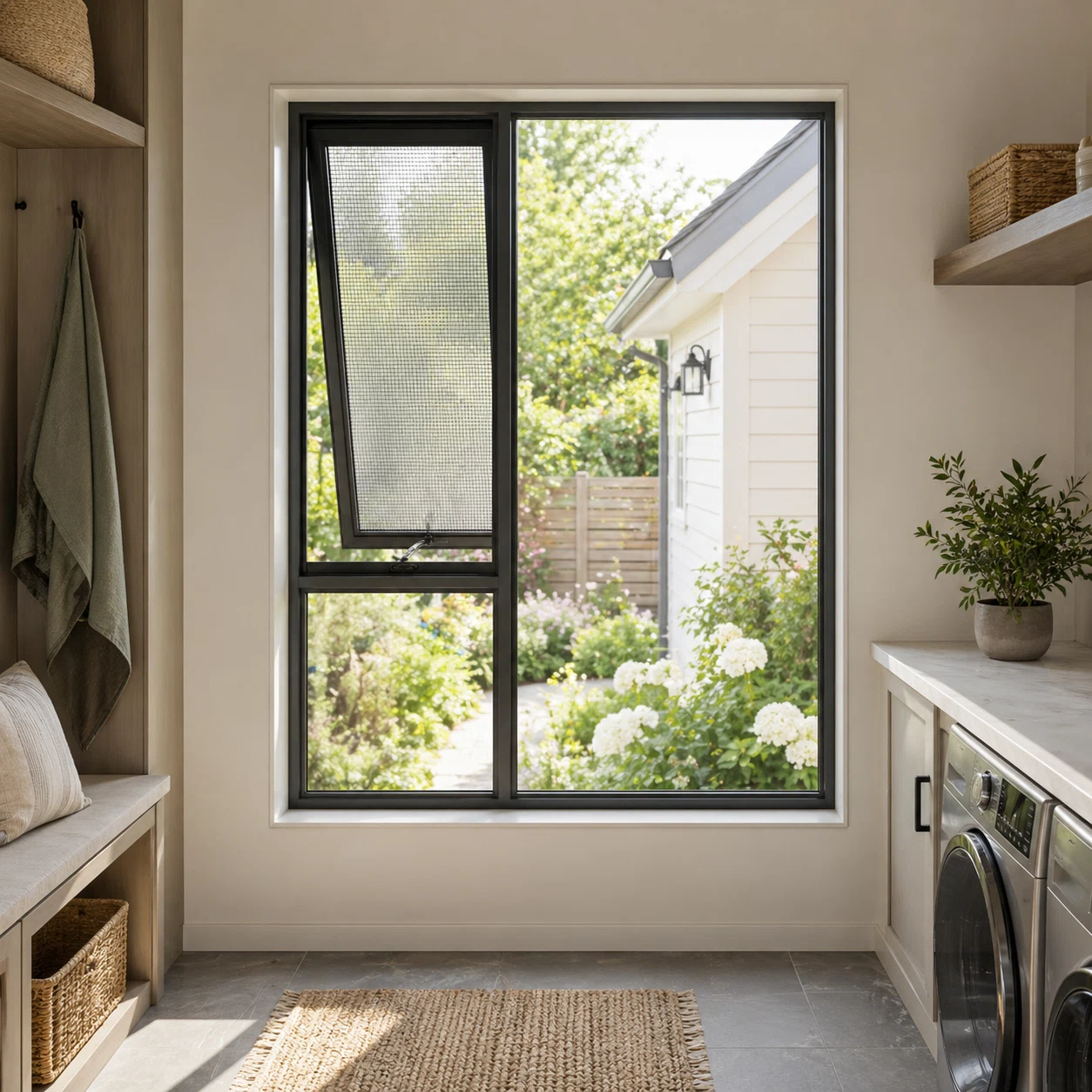

Application

The AMJ 100T awning window is suitable for bathrooms, kitchens, bedrooms, villas, apartments, and light commercial projects that require compact ventilation, crank operation, fixed screen options, and practical weather resistance.

Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?

Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.

What should I send for a quotation?

Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.

Can you customize products according to project drawings?

Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.

Are your products suitable for export projects?

Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.

Do you have certifications or test reports?

Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.

What types of aluminum windows and doors do you offer?

We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.

How do you control quality before shipment?

Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.

How do you package products for export?

We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.

What is your normal production lead time?

Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.

What warranty and after-sales support do you provide?

AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.

...
