AMJ 67T Thermal Break Aluminum Tilt and Turn Window

The AMJ 67T Series is a thermal break aluminum tilt and turn window designed for North American residential, apartment, villa, and light commercial projects. With a 67mm frame depth, 1.8mm aluminum profile thickness, Low-E argon-filled tempered glass, German G-U hardware, and NFRC support, it provides flexible ventilation, reliable sealing, and strong weather performance.

The tilt and turn opening design supports daily ventilation and easy access for cleaning, while custom sizes, colors, glass options, fixed screen options, and installation methods can be adapted to project drawings.

Product Advantages

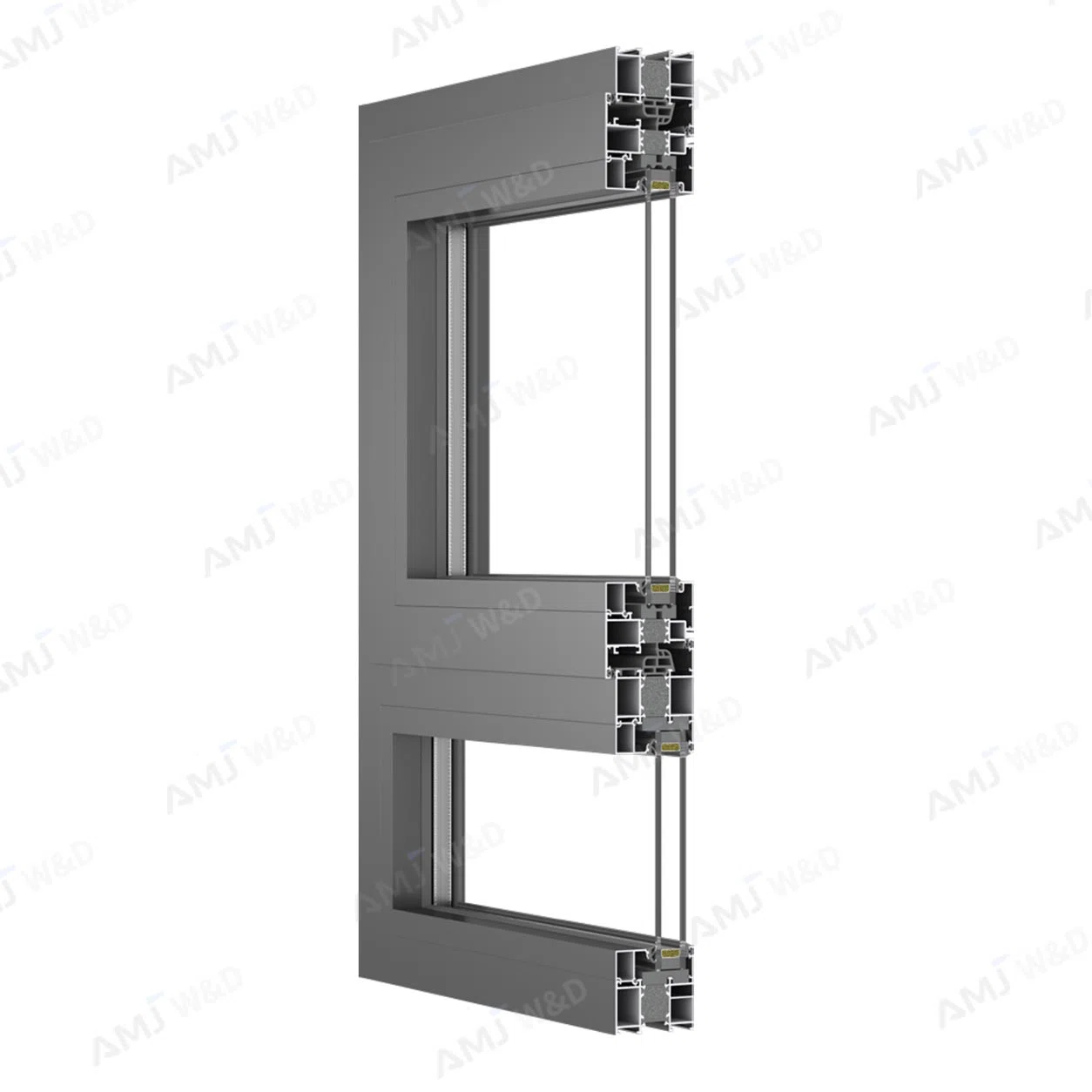

67mm Thermal Break Frame

67mm frame depth with a 24mm thermal break strip helps reduce heat transfer and improve indoor comfort.

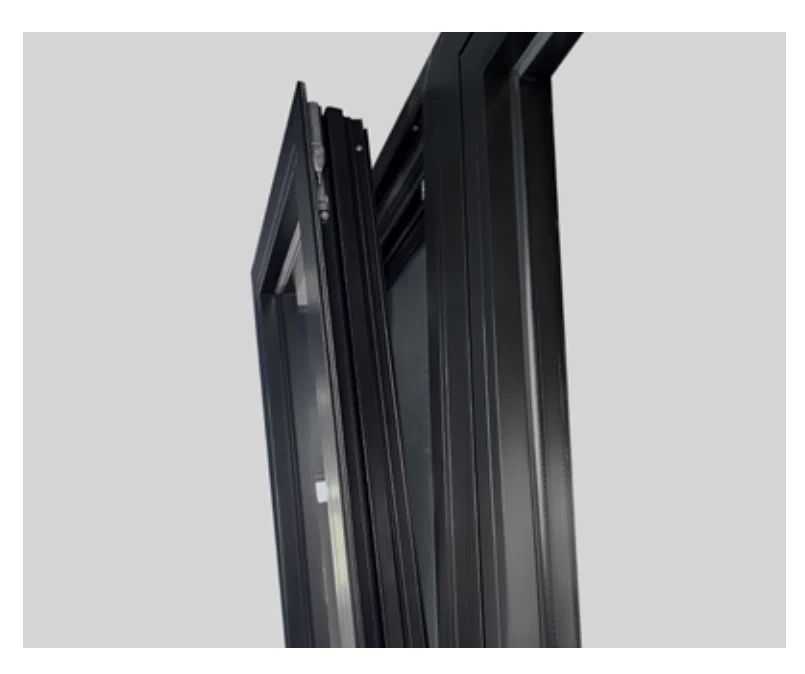

Tilt and Turn Opening

Dual opening function provides secure ventilation and convenient inward access for cleaning.

Low-E Argon Glass

Standard 5mm Low-E + 15A Argon + 5mm tempered clear glass improves insulation performance.

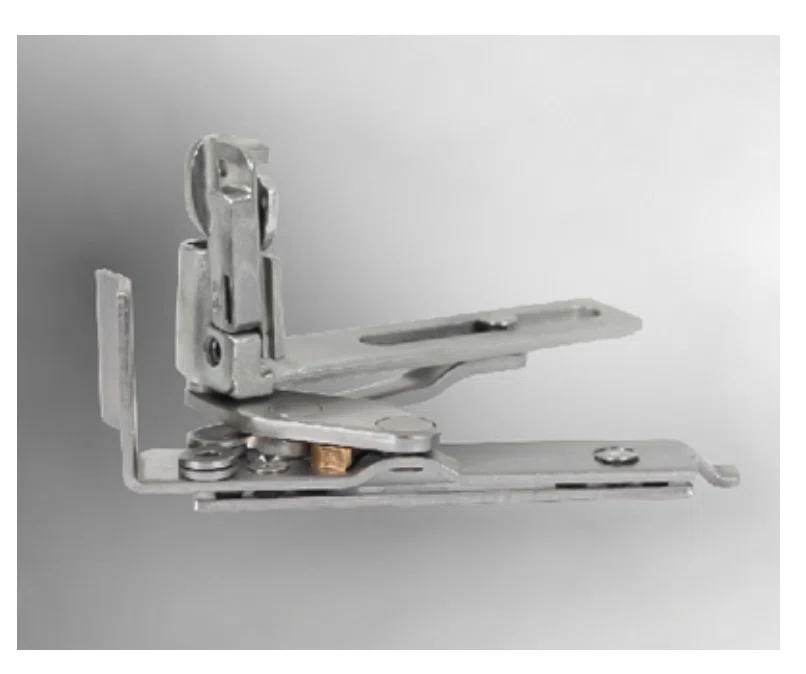

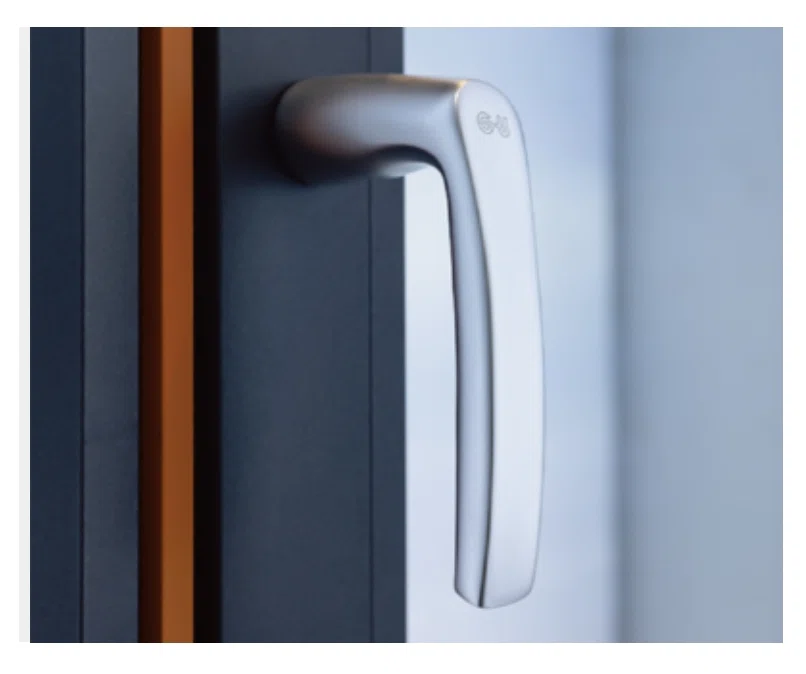

German G-U Hardware

Standard German G-U hardware in black or white supports smooth operation and stable locking.

Strong Weather Performance

Designed for 700Pa water tightness, 0.5m³/(m·h) air tightness, and wind pressure resistance up to 5000Pa.

Fixed Screen Options

Can be matched with fixed stainless steel mesh, fiberglass mesh, or aluminum mesh for ventilation and insect protection.

Technical Specifications

Product Name	AMJ 67T Series Tilt & Turn Window
Series	AMJ 67T Thermal Break Tilt and Turn Window
Profile Thickness	1.8mm
Frame Depth	67mm

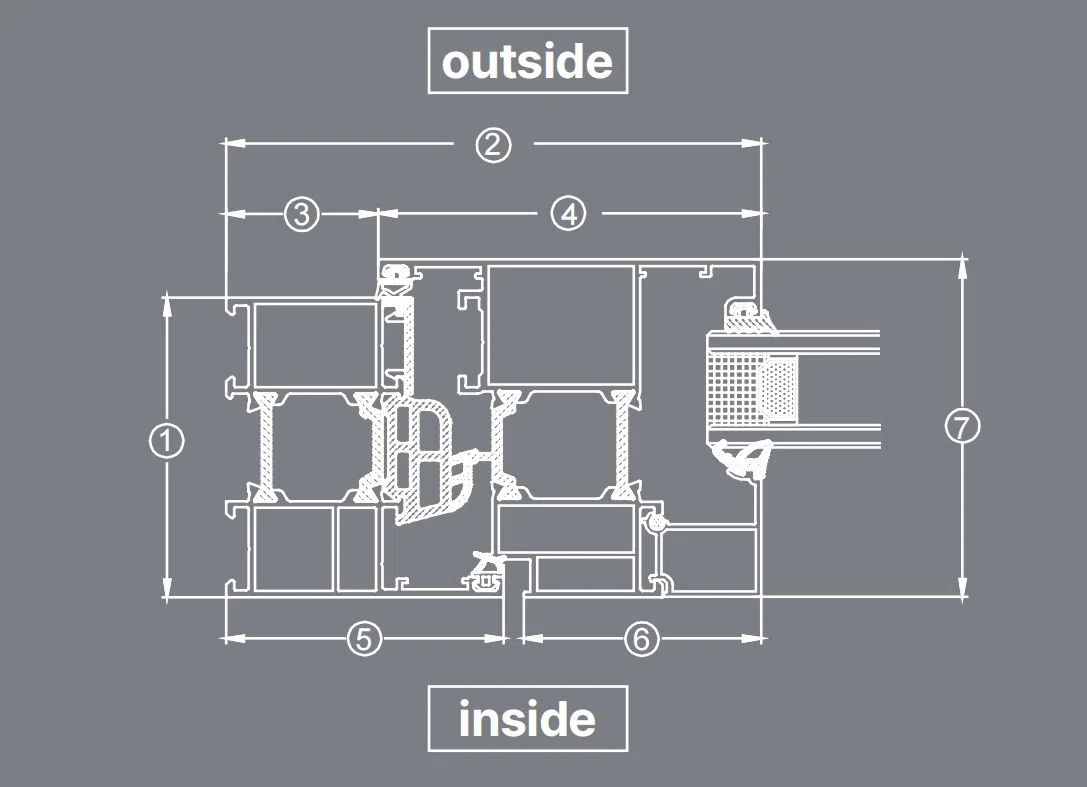

Frame / Sash / Mullion	Frame 62mm / Sash 70.5mm / Mullion 84mm
Thermal Break Strip	24mm
Sash Size Range	500–1000mm width / 500–2800mm height
Maximum Sash Weight	100kg
Standard Glass	5mm Low-E + 15A Argon + 5mm Tempered Clear Glass
Optional Glass	Insulated glass thickness up to 35mm
Standard Hardware	German G-U Hardware, Black / White
Optional Hardware	HK Kinlong Hardware, Black / White
Flyscreen Option	Fixed Stainless Steel Mesh / Fiberglass Mesh / Aluminum Mesh
Installation Options	Nail Fin / Installation Brackets

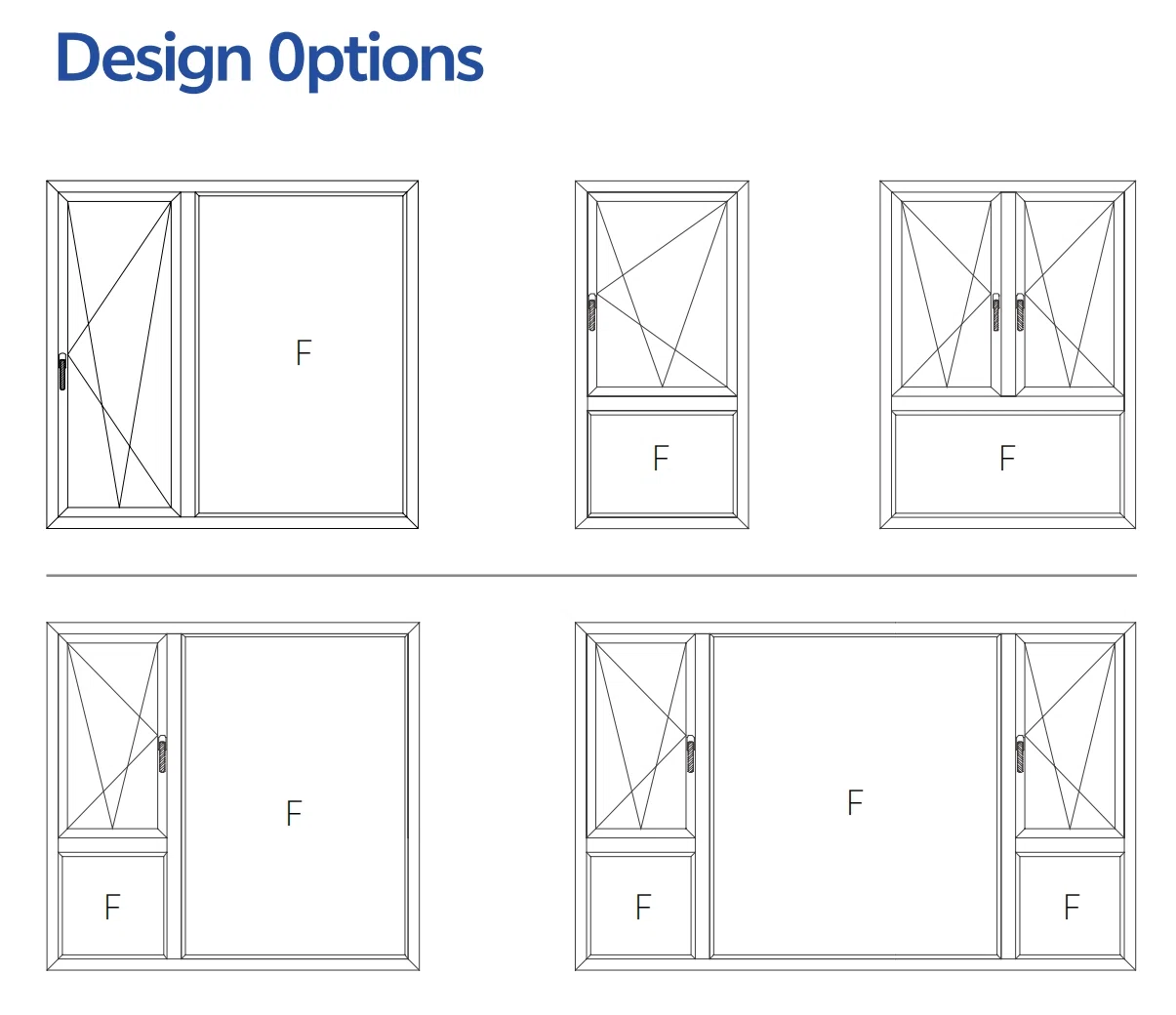

Available Designs	Single Tilt and Turn / Tilt and Turn with Fixed Panel / Fixed Window / 90° and 135° Corner Window
Certification	NFRC Certified / Suitable for U.S. Market

Product Performance

≥1.7 W/㎡·K U-Value

700Pa Water Tightness

0.5m³/(m·h) Air Tightness

≤5000Pa Wind Pressure Resistance

35dB Sound Insulation

Application

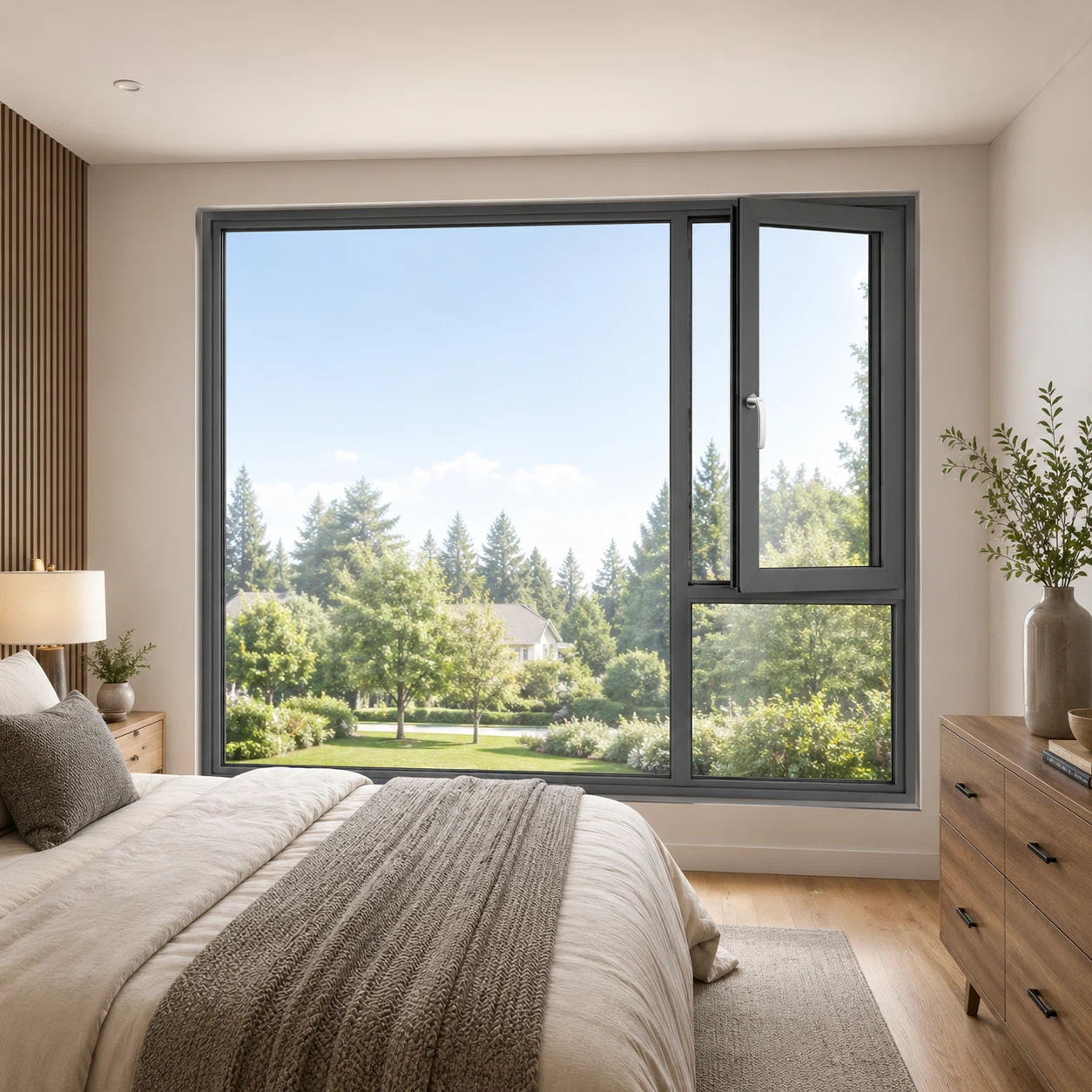

The AMJ 67T tilt and turn window is suitable for bedrooms, living rooms, apartments, villas, and townhouse projects where ventilation, sealing, thermal insulation, and easy cleaning are important.

Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?

Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.

What should I send for a quotation?

Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.

Can you customize products according to project drawings?

Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.

Are your products suitable for export projects?

Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.

Do you have certifications or test reports?

Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.

What types of aluminum windows and doors do you offer?

We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.

How do you control quality before shipment?

Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.

How do you package products for export?

We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.

What is your normal production lead time?

Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.

What warranty and after-sales support do you provide?

AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.

...
