Foshan AMJ Windows and Doors Co., Ltd. AMJ154T ultra narrow aluminum sliding door is designed for modern residential, commercial and modular building projects. With a 21mm visible frame, large glass area and strong aluminum structure, it gives builders and contractors a clean slim frame sliding door solution for high-end spaces.
Ultra Narrow Frame for a Wider View
The AMJ154T narrow frame sliding door reduces the visible aluminum width and increases the glass ratio. It helps create a cleaner façade, better natural light and a more open connection between indoor and outdoor areas.
This aluminum glass sliding door is suitable for villas, apartments, balcony openings, patio doors, hotels, commercial spaces and modular building units.
Designed for Project Supply
For Builders
Custom aluminum doors and windows for villas, apartments, townhouses and modular projects.
For Contractors
Clear drawings, stable structure and flexible sizes help support easier project matching.
For Developers
Factory-direct aluminum sliding door supply for bulk orders and consistent project quality.
Main Product Advantages
21mm Visible Frame
The slim aluminum profile gives the door a minimalist appearance while keeping enough strength for project use.
Strong Load Capacity
The system supports large glass panels, with single sash load capacity up to 400kg.
Smooth Sliding
Quality track structure and hardware allow the door to slide smoothly and remain stable during long-term use.
Good Sealing Performance
The sealing structure supports air tightness, water resistance and wind pressure performance for different climates.
Custom Factory Supply
AMJ supports custom size, glass type, frame color, hardware, screen options and bulk production for B2B projects.
Technical Specifications
- Product Series: AMJ154T Ultra Narrow Aluminum Sliding Door
- Visible Frame Width: 21mm
- Upper / Lower Track: 65.5mm
- Vertical Frame: 25.3mm

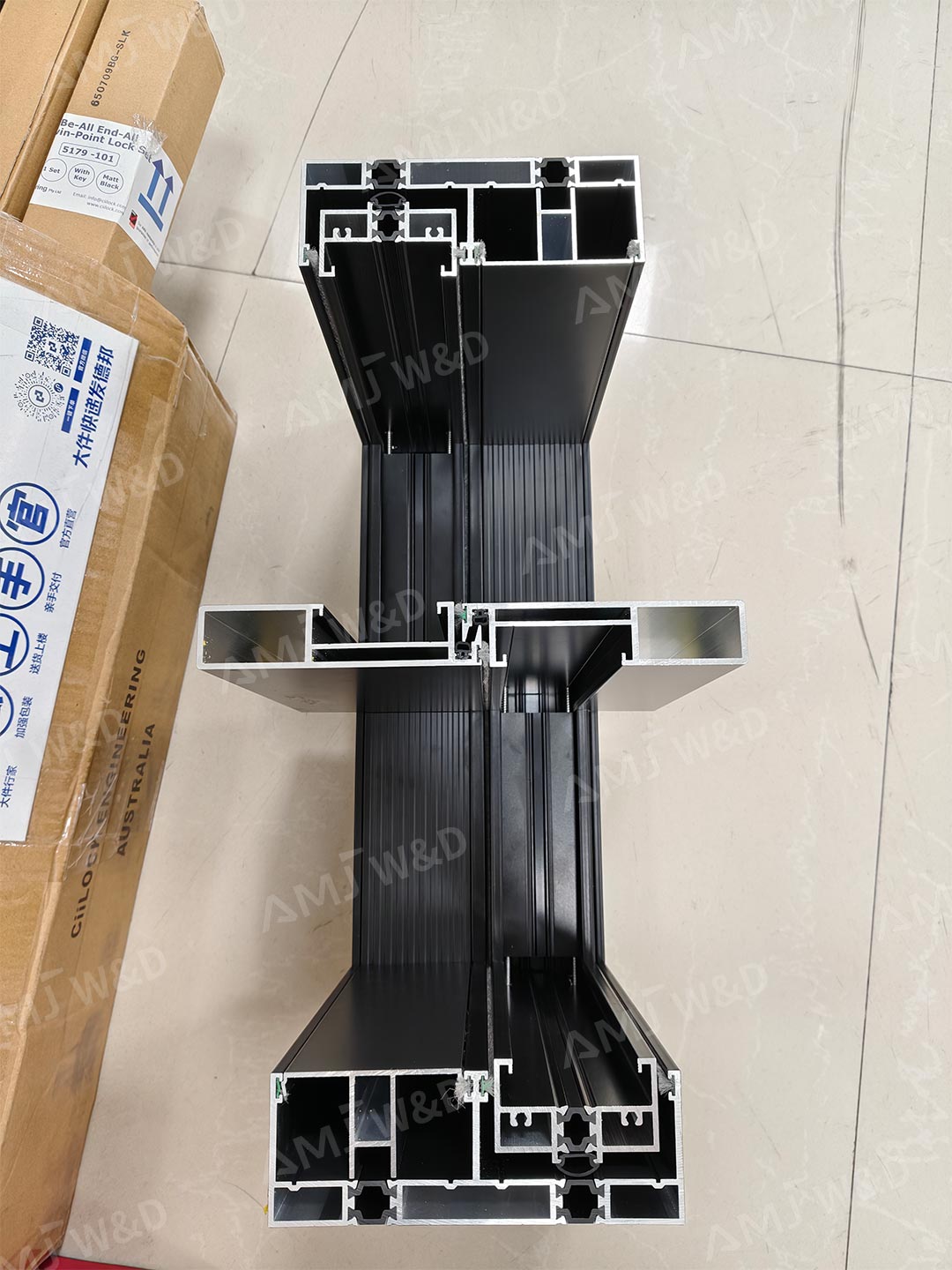

- Profile Thickness: 2.0–3.5mm / 2.0–2.5mm / 2.5–4.0mm
- Glass Option: 8mm + 20A + 8mm double tempered insulated glass
- Sound Insulation: 35dB
- Water Tightness: 220Pa
- Air Tightness: 0.09 L/s㎡
- Wind Pressure Resistance: 2160Pa
- Size Range: Width 800–2500mm / Height 1800–3500mm
- Single Sash Load: Up to 400kg
- Hardware: Customized hardware available
- Screen Option: Optional mosquito screen / windproof screen
Factory Support for Aluminum Door and Window Projects
AMJ is an aluminum window and door factory supplying custom aluminum sliding doors, aluminum windows and door systems for builders, contractors, distributors and developers.
For slim frame sliding door projects, AMJ can support technical drawings, size customization, glass matching, color selection, packaging and bulk order production.
Need a Window & Door Quote for Your Project?
Send your drawings, window schedule or BOQ. AMJ can help prepare a factory-direct aluminum window and door proposal for North America projects.
