Three-Track Aluminum Sliding Window

Q: What aluminum windows and doors can you customize?

AMJ provides custom aluminum casement, tilt and turn, sliding, awning, hung and fixed windows, together with sliding, lift and slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized.

Q: Can you review our drawings and prepare a project quote?

Yes. AMJ's professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions. Project files can be sent to info@amjbm.com for technical review and a project-specific quotation.

Q: Can you meet project performance and local code requirements?

Product selection can be reviewed according to project location and required U-value, SHGC, design pressure, glass safety and other performance requirements.

Q: What glass and thermal performance options are available?

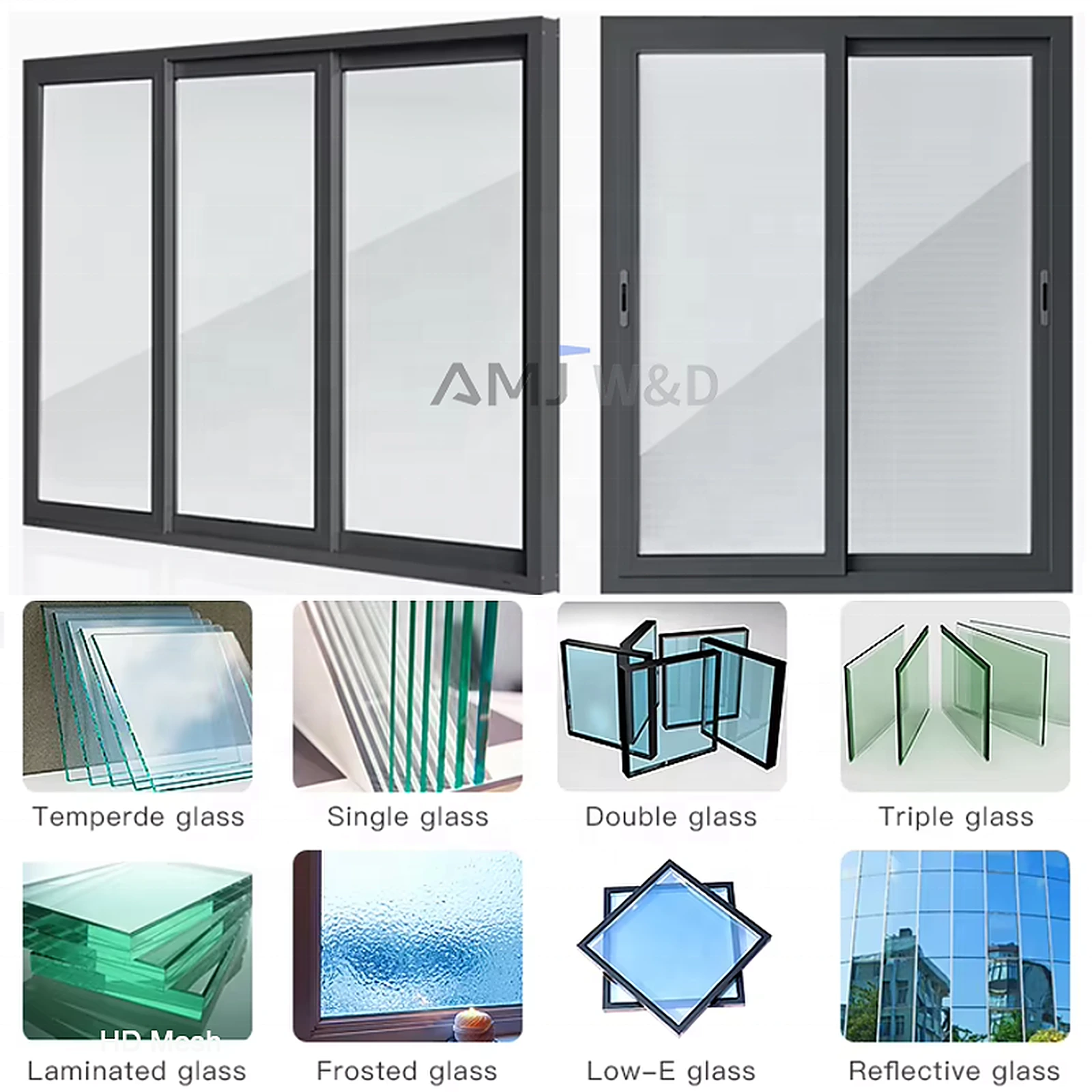

AMJ offers thermal-break aluminum systems with Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations.

Q: How long are production and warranty coverage?

Production can be as fast as 25 days depending on project requirements. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects.

Product Item：AMJ 125T Aluminum Sliding Window

✓ Best for wide residential openings, apartments, villas, and multi-sash window layouts.

✓ Three-track three-sash and three-track six-sash configurations are available.

✓ 124.6mm three-track system with 1.4mm aluminum profiles and a 14.8mm thermal break.

✓ Sash sizes from 600–1500mm wide × 550–1800mm high, up to 120kg.

✓ Low-E insulated glass up to 21mm, with German G-U hardware and fixed metal mesh screen options.

✓ Custom sizes, colors, glass, hardware, screens, sash layouts, and installation options are available.

NFRC / CSA requirements can be reviewed by project.

Production as fast as 25 days · Warranty coverage up to 15 years

Product Detail
FAQs

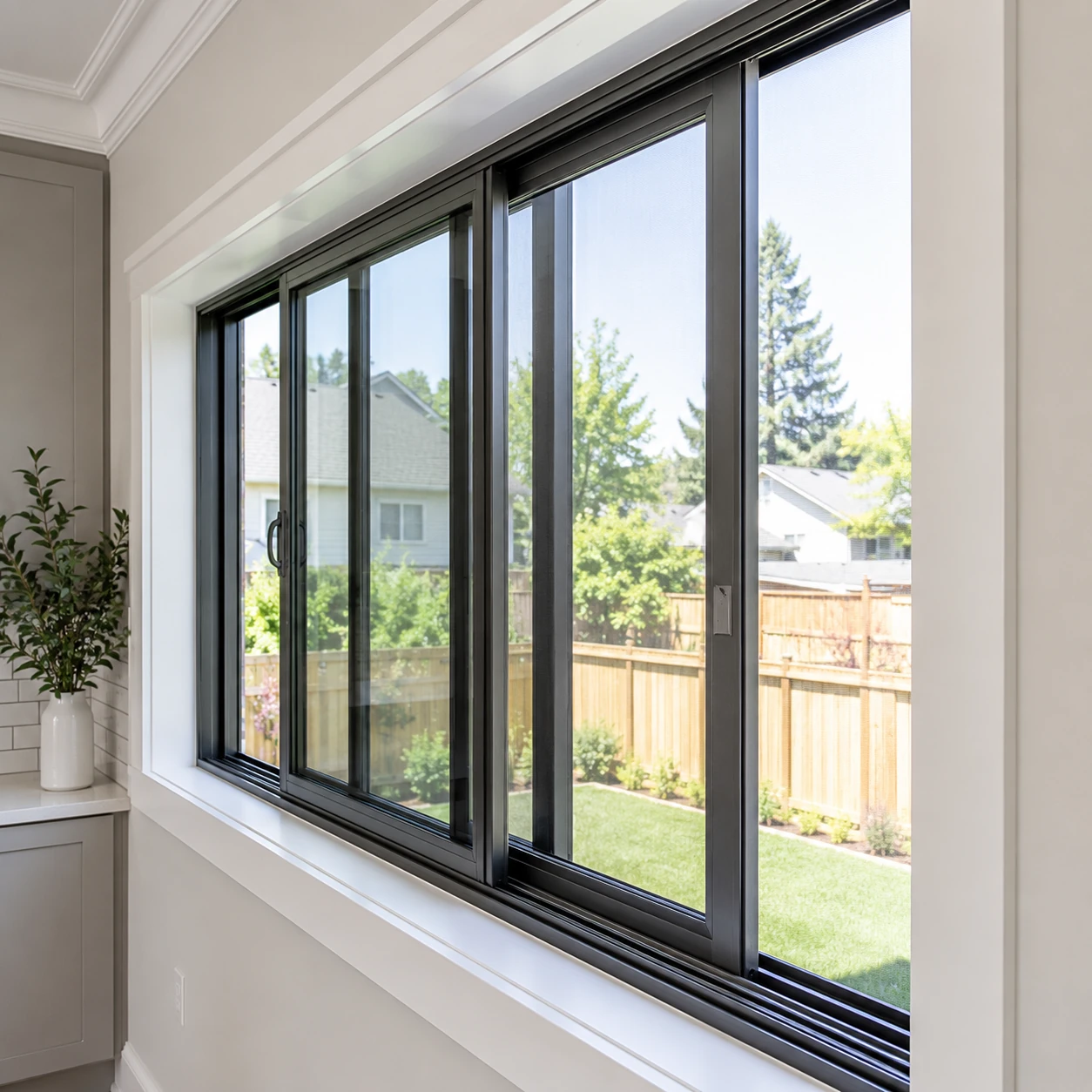

Three Independent Tracks for Wider, More Flexible Sliding Openings

This thermal break aluminum sliding window uses three parallel tracks, allowing three or six sashes to move in a layered horizontal configuration.

The system is suited to wide residential openings, apartments, villas, townhouses, and light commercial projects where more sliding panels and a larger opening area are required.

3 TracksSliding Layout

1.4mmAluminum Profile

21mmMaximum IGU

120kgMaximum Sash Weight

124.6mmSystem Depth

Why Use a Three-Track Aluminum Sliding Window?

The third track creates more panel movement and a wider usable opening without changing the familiar horizontal sliding operation.

Three Parallel Tracks

Three independent tracks allow multiple sashes to stack more efficiently and create a wider opening than a standard two-track window.

Three-Sash or Six-Sash Layouts

Choose a three-track three-sash configuration or a larger three-track six-sash window for broad wall openings.

Wide Sash Proportions

Each sash can be produced from 600–1500mm wide and 550–1800mm high, supporting generous glazing areas.

120kg Sash Capacity

The system supports up to 120kg per sash for larger Low-E insulated glass panels.

Thermal Break Construction

A 14.8mm thermal break strip separates the interior and exterior aluminum sections to reduce direct heat transfer.

Fixed Screen Options

Fixed stainless steel mesh or aluminum mesh can be added according to the project ventilation and insect-control requirements.

Designed for Wide Multi-Sash Window Openings

The three-track layout, sash count, screen, insulated glass, hardware, color, and installation method can be coordinated from the project drawings.

Product Configuration

Track layoutsThree-track three-sash or three-track six-sash.

Sash size600–1500mm wide × 550–1800mm high.

Maximum sash weight120kg.

Standard glass5mm Low-E + 9mm argon + 5mm tempered clear glass.

Maximum IGU21mm.

HardwareGerman G-U in black or white; HK Kinlong available as an option.

ScreenFixed stainless steel mesh or aluminum mesh.

InstallationNail fin, mounting tabs, or screws.

Project Performance References

0.53Reference U-Factor
BTU/(h·ft²·°F)

200PaWater Resistance

0.51 L/s·m²Reference Air Leakage

≤3000PaWind Pressure Resistance

28dBSound Insulation

14.8mmThermal Break Strip

Performance values are engineering references from the latest product specification. Final results depend on size, glass, layout, installation, and the applicable project test report.

Our Strength

Production Process Project Services Certificates

1. Checking & Alignment

2. Cutting & Punching

3. Milling Holes

4. Assembly

5. Glass Assembly

6. Packaging

7. Delivery

8. Installation

Drawing & Engineering Review

Sample Support

Quality Inspection

U.S. Showrooms

48-Hour On-Site Support

Warranty Service

NFRC

CSA

ENERGY STAR

ISO

Compare the Three Aluminum Sliding Window Systems

The main differences are track count, profile thickness, sash capacity, glass capacity, and project application.

Comparison	Standard Two-Track Sliding Window	Heavy-Duty Two-Track Sliding Window	Three-Track Sliding Window CURRENT
Track Layout	Two tracks	Two tracks	Three tracks
Profile Thickness	1.4mm	2.0mm	1.4mm
Sash Size	600–1500 × 550–1800mm	350–1200 × 300–2050mm	600–1500 × 550–1800mm
Sash Capacity	120kg	55kg single / 140kg dual roller	120kg
Standard Glass	5 Low-E + 9 Ar + 5	5 Low-E + 12 Ar + 5	5 Low-E + 9 Ar + 5
Maximum IGU	21mm	26mm	21mm
Water Resistance	200Pa	450Pa	200Pa
Wind Pressure	≤3000Pa	≤4000Pa	≤3000Pa
Best Fit	Standard residential openings	Larger and more demanding openings	Wide multi-sash openings

Frequently Asked Questions

What are the main advantages of this three-track sliding window?

The third track supports three- or six-sash layouts, allows more panels to stack, and creates a wider usable opening while maintaining simple horizontal operation.

Does this window include a sliding screen sash?

The latest standard specification lists fixed stainless steel mesh or aluminum mesh options. The screen configuration should be confirmed from the project drawings before production.

What should I send for a quotation?

Send drawings, rough opening sizes, BOQ or a window schedule, quantity, project location, glass, color, screen option, and delivery target to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. You can order sample sets for evaluation, and competitive tiered pricing is available for full container load (FCL) project orders.

What are the typical lead time and warranty?

Standard production can start from approximately 25 days after drawing and material approval. Larger customized projects commonly require 30–55 days. Warranty coverage up to 15 years, with longer terms available for selected projects

Start Your Three-Track Sliding Window Project

Send your drawings, BOQ, window schedule, or rough opening sizes for track layout, glass, screen, installation, and project pricing review.

Request a Project Quote Chat on WhatsApp

01 Why work with AMJ for aluminum window and door projects?

AMJ is a professional aluminum window and door manufacturer with nearly 20 years of industry experience and a 430,000 sq ft production base. Our engineering, production, quality-control and project teams support builders, contractors, developers, dealers and importers from product selection through production and delivery.

02 What aluminum windows and doors can you customize?

We provide custom aluminum casement, tilt & turn, sliding, awning, hung and fixed windows, together with sliding, lift & slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized for residential and commercial projects.

03 What certifications do AMJ windows and doors have?

Selected AMJ aluminum window and door systems are available with NFRC and CSA certification support, ENERGY STAR options and Intertek testing experience. Certification depends on the specific product system, glass configuration, size and project requirements. Our team will confirm the applicable certified solution before quotation.

04 Can you review our drawings and prepare a project quote?

Yes. Our professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions, then help confirm suitable window and door systems, glass, hardware and configurations. Send your project files to info@amjbm.com for technical review and a project-specific quotation.

05 Can you meet project performance and local code requirements?

Product selection can be reviewed according to the project location and required U-value, SHGC, design pressure, glass safety and other performance requirements. Share the project location and specifications with our team so the appropriate frame and glass configuration can be checked before production.

06 What glass and thermal performance options are available?

AMJ offers thermal-break aluminum systems with options including Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations. The final setup is matched to the product system and project performance requirements.

07 How long are production and warranty coverage?

Production can be as fast as 25 days depending on quantity, configuration, glass, finish and project complexity. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects. Final terms are confirmed according to the order specification.

08 What happens if we need replacement parts or after-sales support?

AMJ supports replacement hardware and service parts for AMJ project orders. Commonly used service components are kept available so our team can respond quickly when replacement or supplementary items are required. Order records also help us confirm the correct specification before arranging support.

09 How are orders packed and delivered?

Products are inspected before packing and protected according to the product type and shipping method. AMJ can support factory, port and door-to-door delivery options. Shipping terms and freight costs are confirmed according to the destination, quantity and project requirements.

...
