Two-Track Thermal Break Aluminum Sliding Door

  1. Home
    2.   >
  2. Products
    3.   >
  3. Aluminum Doors
    4.   >
  4. Sliding Doors
Two-Track Thermal Break Aluminum Sliding Door
  1. Two-Track Thermal Break Aluminum Sliding Door
  2. Two-Track Thermal Break Aluminum Sliding Door
  3. Two-Track Thermal Break Aluminum Sliding Door
  4. Two-Track Thermal Break Aluminum Sliding Door
  5. Two-Track Thermal Break Aluminum Sliding Door
  6. Two-Track Thermal Break Aluminum Sliding Door
  7. Two-Track Thermal Break Aluminum Sliding Door
  8. Two-Track Thermal Break Aluminum Sliding Door

Two-Track Thermal Break Aluminum Sliding Door

Product Item：AMJ 100T Series Sliding Door
✓ Best for patios, villas, apartments, and large residential openings.

✓ Two-track two-panel, four-panel, fixed-panel, center-opening, and post-free corner layouts are available.

✓ 102mm two-track system with 2.0mm aluminum profiles and thermal break construction.

✓ Panel sizes from 700–1600mm wide × 2050–3000mm high; 140kg with two rollers or 200kg with four rollers.

✓ Low-E insulated glass up to 26mm, with HK Kinlong hardware.

✓ Custom sizes, colors, glass, hardware, panel layouts, corner options, and installation details are available.

NFRC / CSA requirements can be reviewed by project.

Production as fast as 25 days · Warranty coverage up to 15 years
Send Inquiry Live chat
  • Product Detail
  • FAQs

Two-Track Thermal Break Aluminum Sliding Door

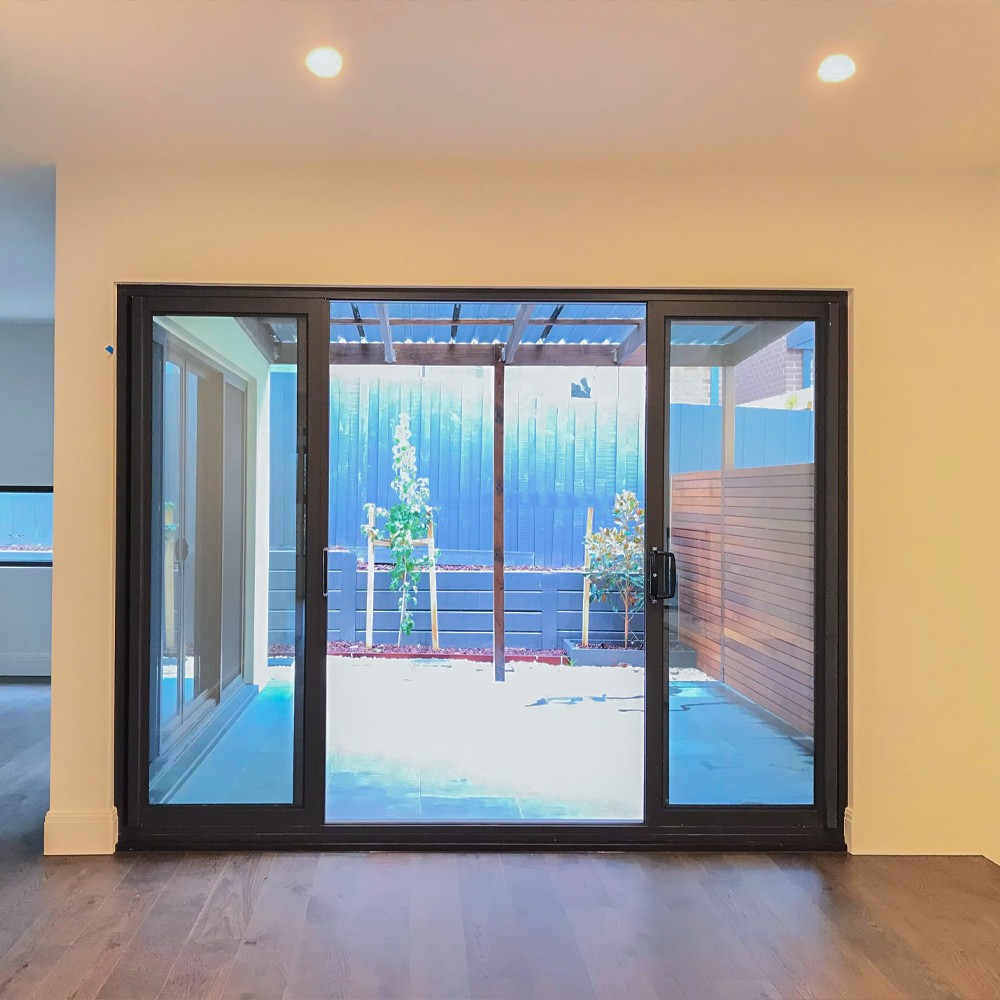

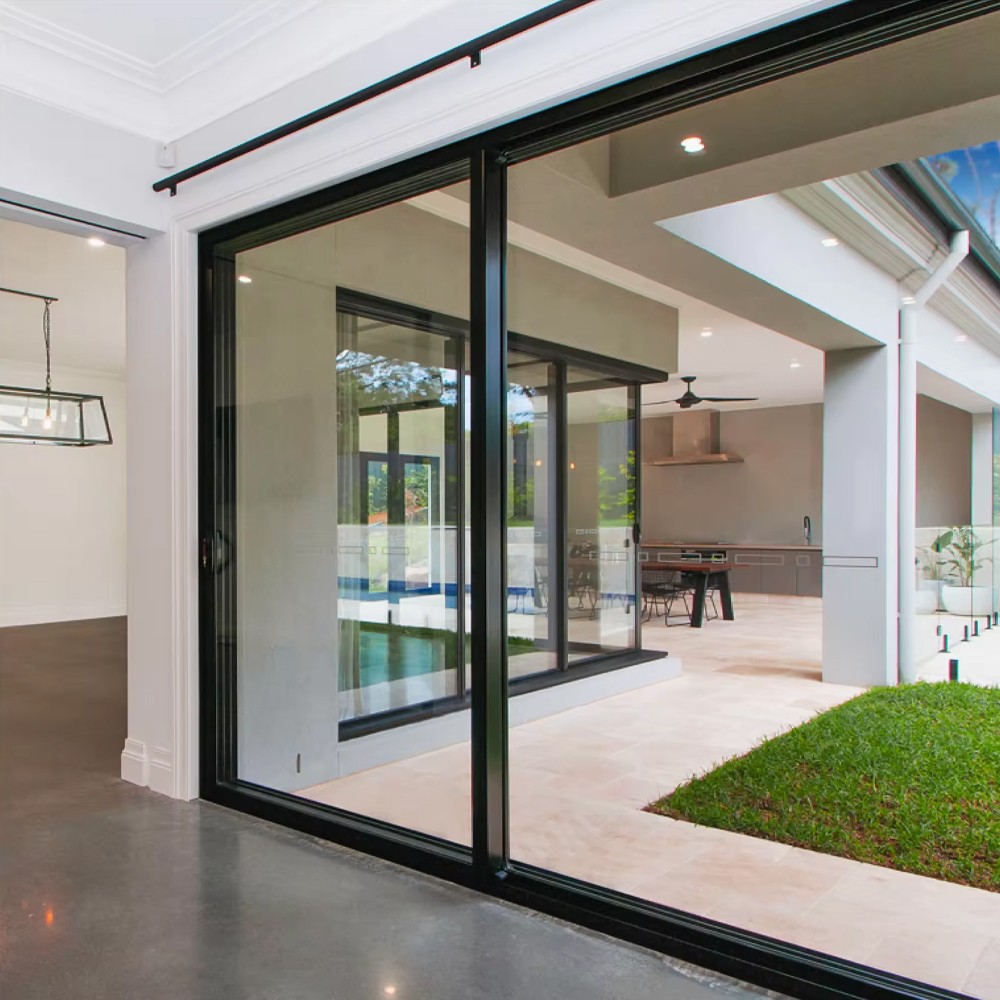

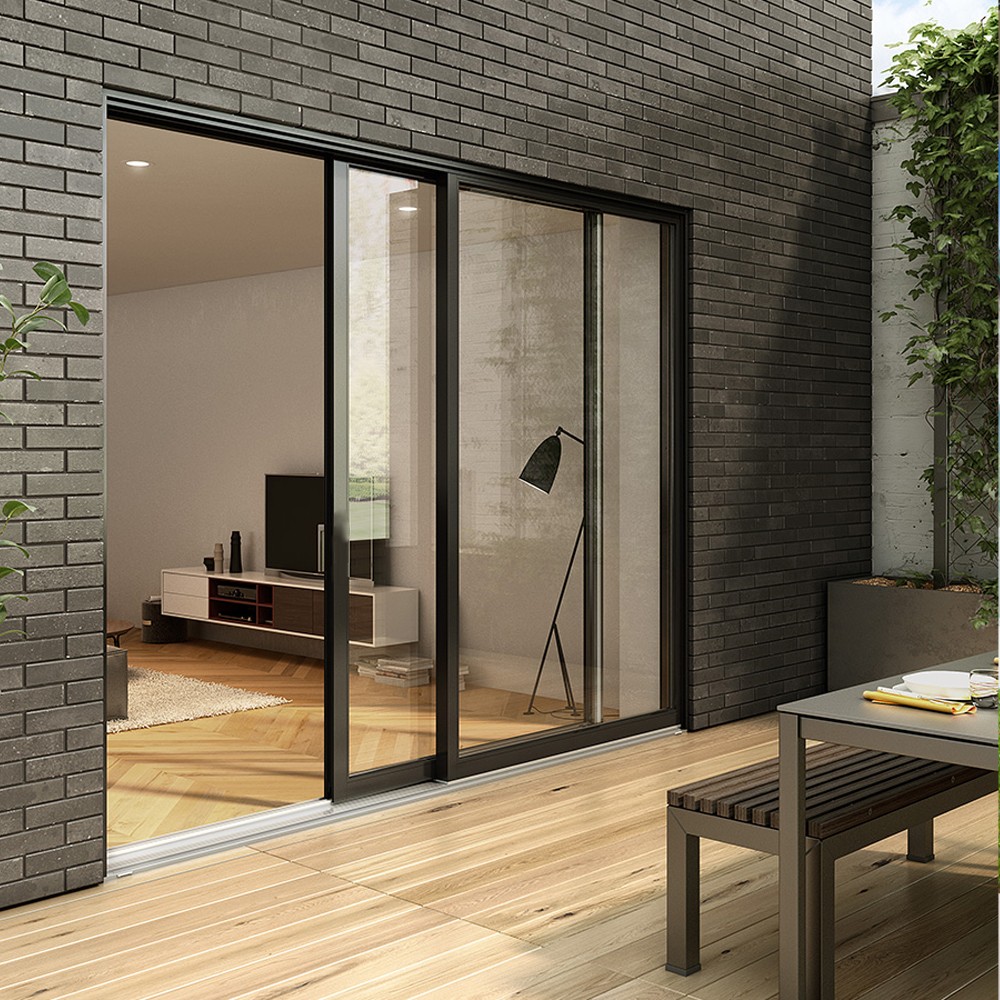

This two-track thermal break aluminum sliding door is built for patios, villas, apartments, and large residential openings that need simple operation and flexible panel layouts.

The system uses 2.0mm aluminum profiles, Low-E argon-filled insulated glass, HK Kinlong hardware, and panel capacities up to 200kg with four rollers.

A Straightforward Aluminum Patio Door for Large Openings

The two-track layout keeps the system simple while supporting two-panel, four-panel, fixed-panel, and post-free corner configurations.

Panel range700–1600 × 2050–3000mm
Roller capacity140kg with 2 rollers / 200kg with 4
Main differenceTwo-track system without an integrated screen track
2.0mmAluminum Profile
102mmTwo-Track Depth
26mmMaximum IGU
140kg / 200kg2-Roller / 4-Roller Capacity
4.4m²Maximum Single Panel Area

Why Choose This Two-Track Sliding Door?

A practical thermal break sliding door for standard patio openings, large glass panels, and custom fixed-panel combinations.

2 Tracks

Clean, Simple Layout

A dedicated two-track frame suits common two-panel and four-panel aluminum patio door layouts.

200kg

Four-Roller Capacity

The four-roller setup supports panels up to 200kg; the two-roller setup supports 140kg.

90°

Post-Free Corner Option

A post-free corner configuration can be reviewed from project drawings.

26mm

Low-E Insulated Glass

Standard glazing is 5mm Low-E + 12mm argon + 5mm tempered clear glass.

Aluminum Sliding Door Operation

See the operating method, panel movement, and hardware behavior of this aluminum sliding door system.

Configured for Two-Track Aluminum Patio Door Projects

Send the opening size, panel layout, quantity, glass, finish, installation detail, and project ZIP code for review.

Product Configuration

Profile thickness2.0mm.

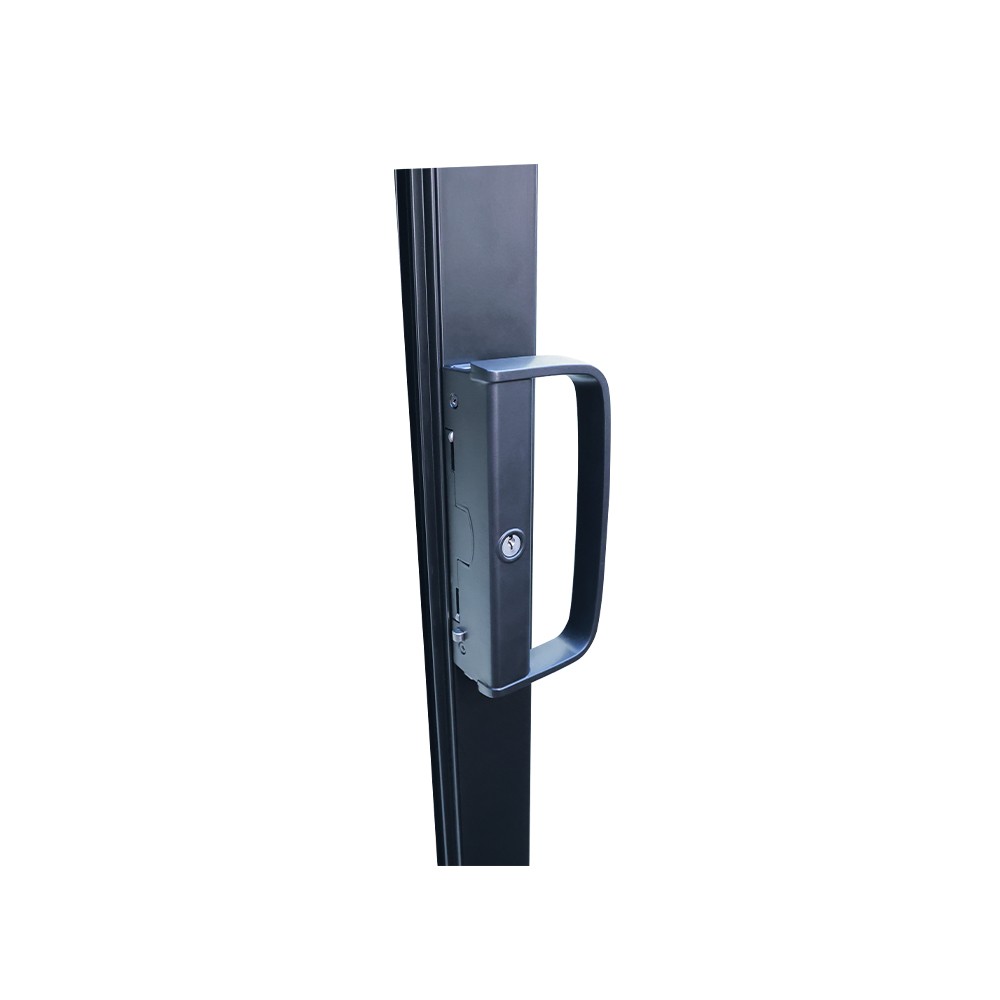

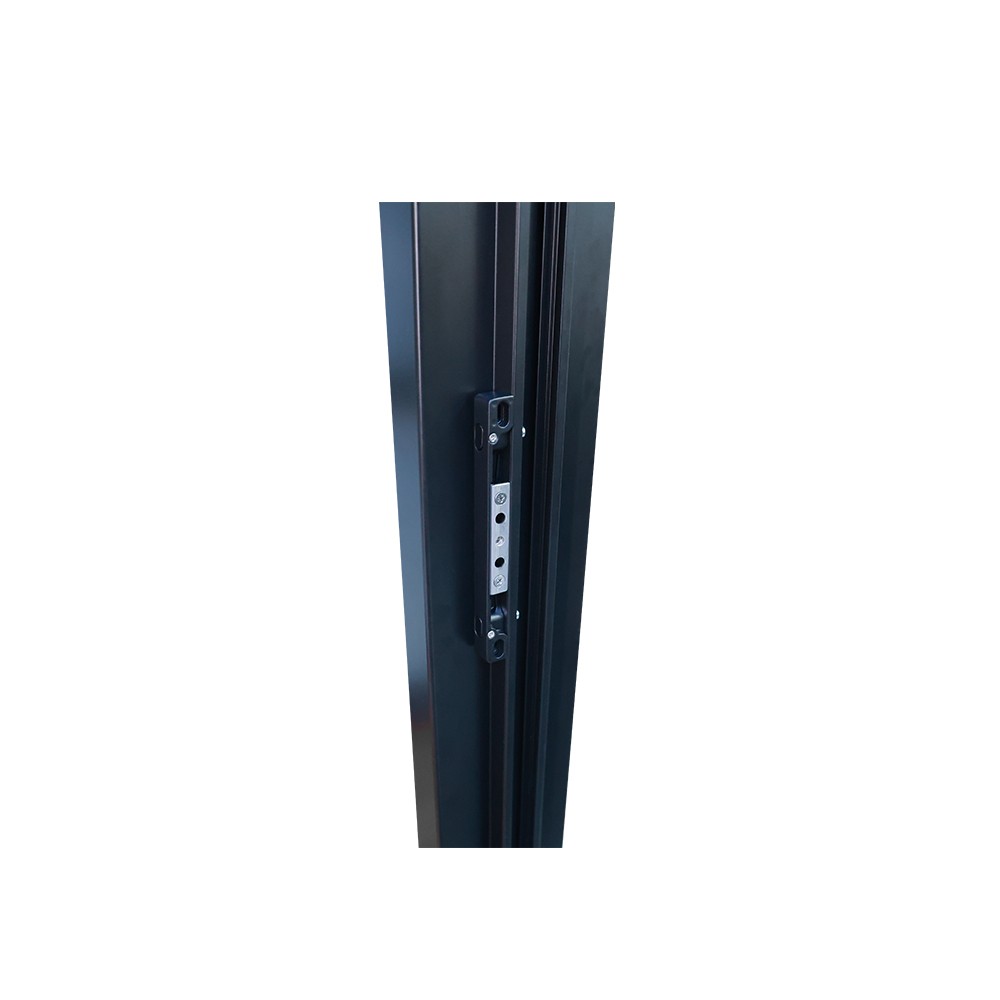

Standard hardwareHK Kinlong in black or white.
Panel size700–1600mm wide × 2050–3000mm high.
Panel capacity140kg with two rollers; 200kg with four rollers.
Standard glass5mm Low-E + 12mm argon + 5mm tempered clear glass.
Maximum IGU26mm.
ScreenNo integrated screen option is listed for this system.
InstallationNail fin, mounting tabs, or screws.
Available layoutsTwo-track two-panel, two-track four-panel, top fixed, side fixed, center opening with fixed sides, and 90° post-free corner.

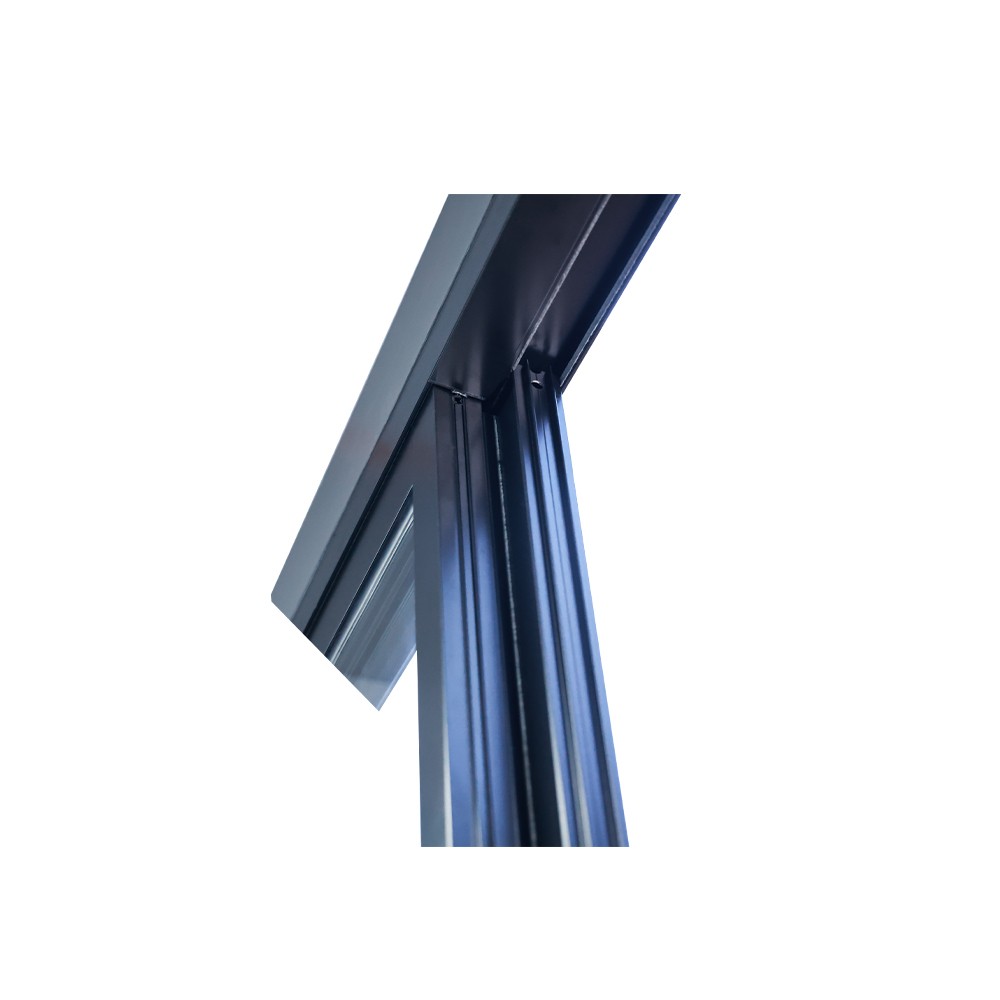

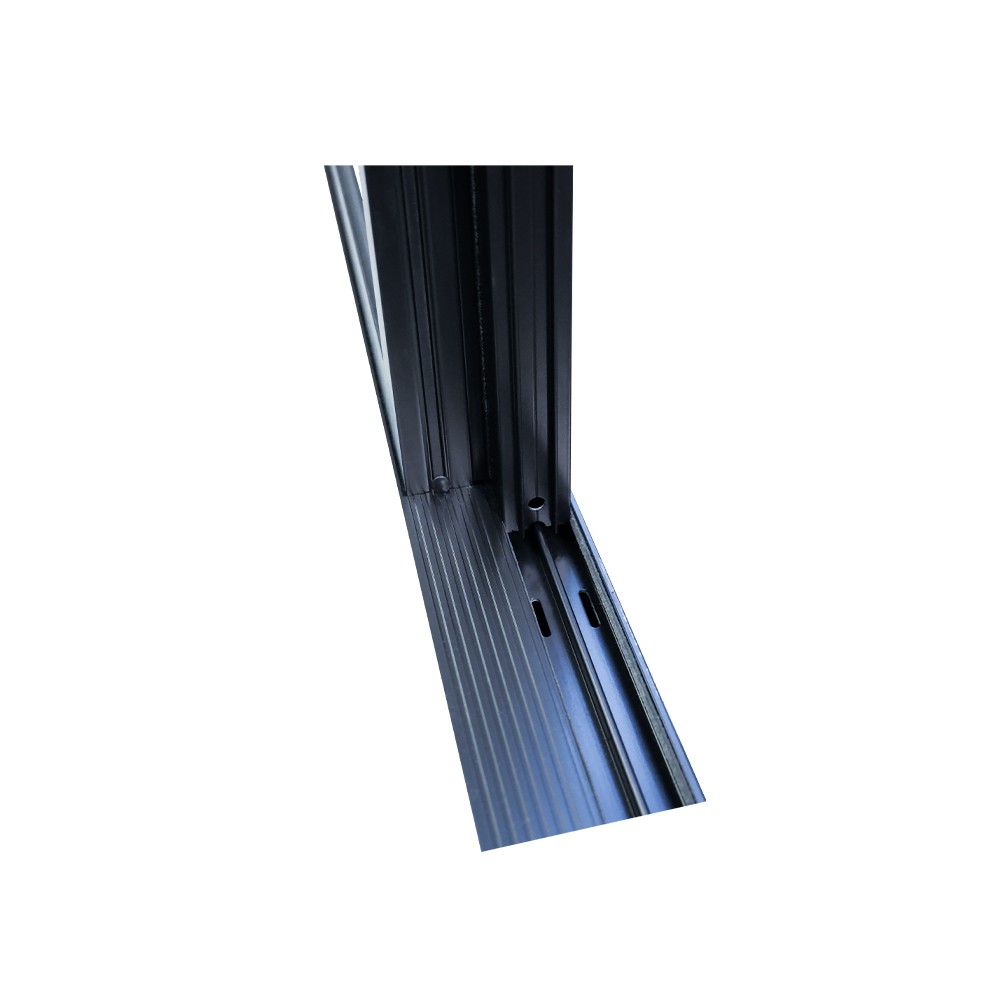

System dimensions102mm two-track depth; 55mm jamb and tracks; 69.8mm lock stile; 48.7mm meeting stile; 71mm top and bottom rail; 20mm frame thermal break; 14.8mm sash thermal break.

Estimated Performance References

≥0.53Estimated U-Factor
BTU/(h·ft²·°F)
300PaEstimated Water Resistance
2.9 L/s·m²Estimated Air Leakage
≤3000PaEstimated Wind Pressure
33dBEstimated Sound Insulation
2.0mmAluminum Profile
All values are estimated performance references from the latest AMJ product specification V2 dated July 23, 2026. Final results depend on panel size, glass, configuration, installation, and the applicable project test report.
For panels below 2800mm high, the V2 specification lists a single reinforced meeting stile. Maximum single-panel area: 4.4m².

Available Sliding Door Layouts

Final panel direction, fixed sections, screen position, and track layout should be confirmed from the project drawings.

Two-Track Two-Panel

Standard two-panel patio opening.

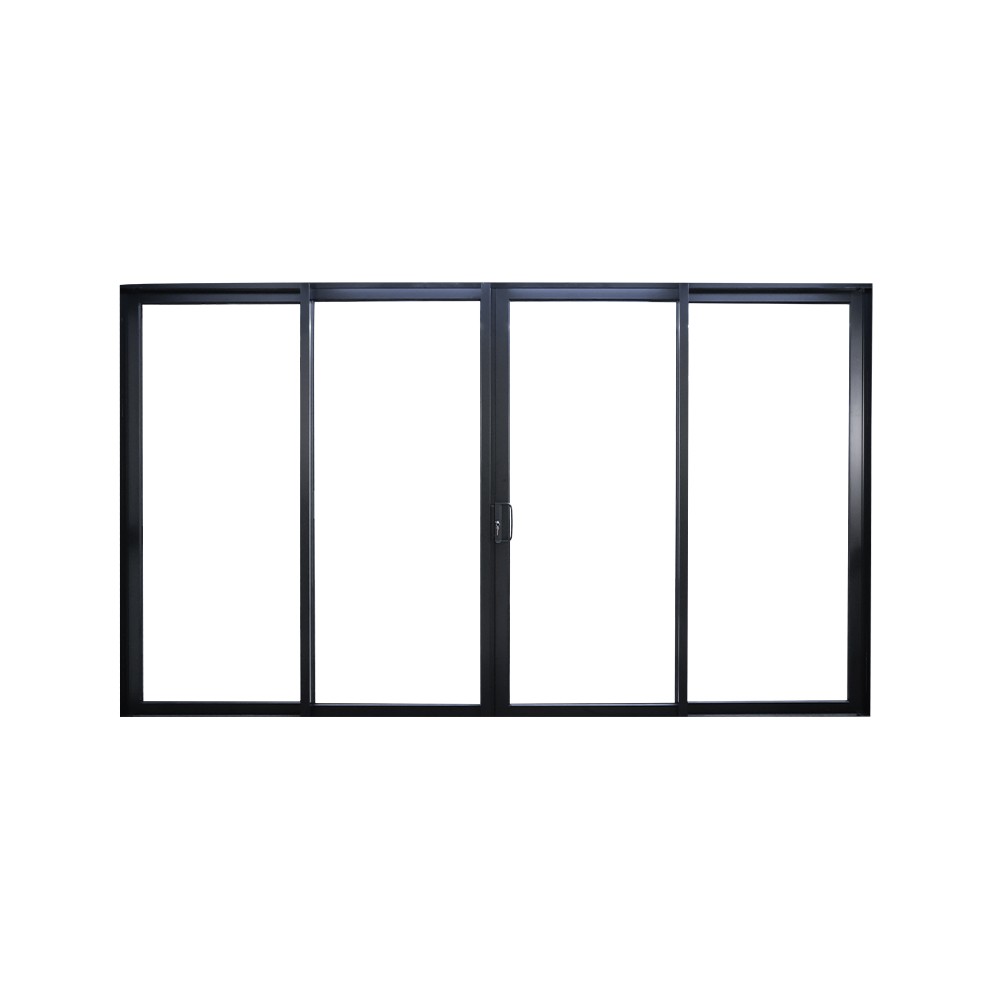

Two-Track Four-Panel

Four panels for wider residential openings.

Center Opening + Fixed Sides

Center panels slide with fixed side panels.

90° Post-Free Corner

Corner layout subject to drawing review.

Our Strength

Checking and Alignment

1. Checking & Alignment

Cutting and Punching

2. Cutting & Punching

Milling Holes

3. Milling Holes

Assembly

4. Assembly

Glass Assembly

5. Glass Assembly

Packaging

6. Packaging

Delivery

7. Delivery

Installation

8. Installation

Drawing and Engineering Review

Drawing & Engineering Review

Sample Support

Sample Support

Quality Inspection

Quality Inspection

U.S. Showrooms

U.S. Showrooms

Local On-Site Support

48-Hour On-Site Support

Warranty Service

Warranty Service

NFRC Certificate

NFRC

CSA Certificate

CSA

ENERGY STAR Certificate

ENERGY STAR

ISO Certificate

ISO

Which Aluminum Sliding Door Fits Your Project?

Only the main differences are shown, so buyers can compare the four sliding door systems quickly.

CURRENT

Two-Track Thermal Break Aluminum Sliding Door

Best forSimple two-track patio openings
Panel range700–1600 × 2050–3000mm
Capacity140kg / 200kg
Main differenceTwo-track system; no screen listed

Screen-Ready Three-Track Aluminum Sliding Door

Best forGlass-and-screen patio openings
Panel range700–1600 × 2050–3000mm
Capacity140kg / 200kg
Main differenceDedicated screen track

Ultra-Slim Panoramic Aluminum Sliding Door

Best forMinimal sightlines and oversized glass
Panel range800–2500 × 1800–3500mm
Capacity400kg / 800kg
Main difference21mm meeting stile

Heavy-Duty Thermal Break Lift and Slide Door

Best forLift-and-slide operation and larger panels
Panel range800–2400 × 1800–3000mm
Capacity200kg / 300kg
Main differenceG-U lift-and-slide hardware

Frequently Asked Questions

What are the main advantages of this two-track sliding door?

It offers a simple two-track layout, 2.0mm profiles, Low-E insulated glass, panel capacities up to 200kg, and flexible fixed-panel or corner configurations.

Does this sliding door include a screen track?

No integrated screen option is listed for this system. For a glass-and-screen layout, use the screen-ready three-track sliding door.

What is the maximum panel size?

The listed panel range is 700–1600mm wide and 2050–3000mm high, with a maximum single-panel area of 4.4m².

What information should I send for a quotation?

Send the project location, opening sizes, panel layout, quantity, glass, color, screen requirement, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

Start Your Two-Track Sliding Door Project

Send your drawings, opening sizes, panel layout, or BOQ for glass, hardware, track configuration, and project pricing.

Request a Project Quote Chat on WhatsApp

01 Why work with AMJ for aluminum window and door projects?

AMJ is a professional aluminum window and door manufacturer with nearly 20 years of industry experience and a 430,000 sq ft production base. Our engineering, production, quality-control and project teams support builders, contractors, developers, dealers and importers from product selection through production and delivery.

02 What aluminum windows and doors can you customize?

We provide custom aluminum casement, tilt & turn, sliding, awning, hung and fixed windows, together with sliding, lift & slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized for residential and commercial projects.

03 What certifications do AMJ windows and doors have?

Selected AMJ aluminum window and door systems are available with NFRC and CSA certification support, ENERGY STAR options and Intertek testing experience. Certification depends on the specific product system, glass configuration, size and project requirements. Our team will confirm the applicable certified solution before quotation.

04 Can you review our drawings and prepare a project quote?

Yes. Our professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions, then help confirm suitable window and door systems, glass, hardware and configurations. Send your project files to info@amjbm.com for technical review and a project-specific quotation.

05 Can you meet project performance and local code requirements?

Product selection can be reviewed according to the project location and required U-value, SHGC, design pressure, glass safety and other performance requirements. Share the project location and specifications with our team so the appropriate frame and glass configuration can be checked before production.

06 What glass and thermal performance options are available?

AMJ offers thermal-break aluminum systems with options including Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations. The final setup is matched to the product system and project performance requirements.

07 How long are production and warranty coverage?

Production can be as fast as 25 days depending on quantity, configuration, glass, finish and project complexity. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects. Final terms are confirmed according to the order specification.

08 What happens if we need replacement parts or after-sales support?

AMJ supports replacement hardware and service parts for AMJ project orders. Commonly used service components are kept available so our team can respond quickly when replacement or supplementary items are required. Order records also help us confirm the correct specification before arranging support.

09 How are orders packed and delivered?

Products are inspected before packing and protected according to the product type and shipping method. AMJ can support factory, port and door-to-door delivery options. Shipping terms and freight costs are confirmed according to the destination, quantity and project requirements.

...
