North American Crank-Out Aluminum Awning Window

Crank-Controlled Ventilation with a Fixed Interior Screen

This North American-style crank-out awning window uses a hand-operated crank to open the top-hinged sash outward from the bottom.

A 2.0mm aluminum profile, 102mm system depth, Low-E argon-filled tempered glass, fixed interior screen options, and strong weather references make it suitable for kitchens, basements, bathrooms, modular homes, apartments, and light commercial projects.

2.0mm Aluminum Profile

102mm System Depth

26mm Maximum IGU

55kg Awning Sash Capacity

600Pa Estimated Water Resistance

Why Choose a Crank-Out Awning Window?

The crank operator and fixed interior screen are the main differences from the standard handle-operated awning systems.

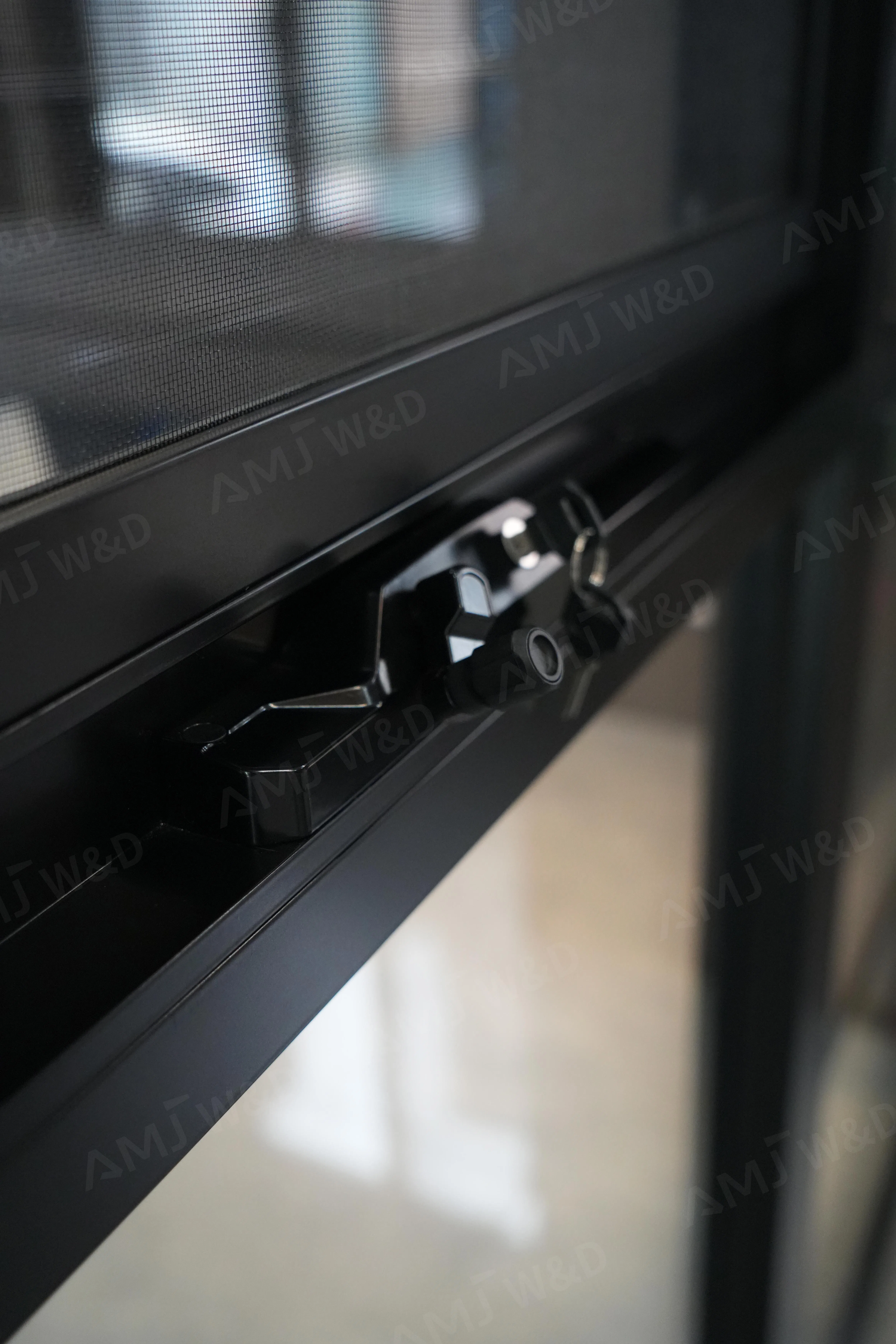

Controlled Crank Operation

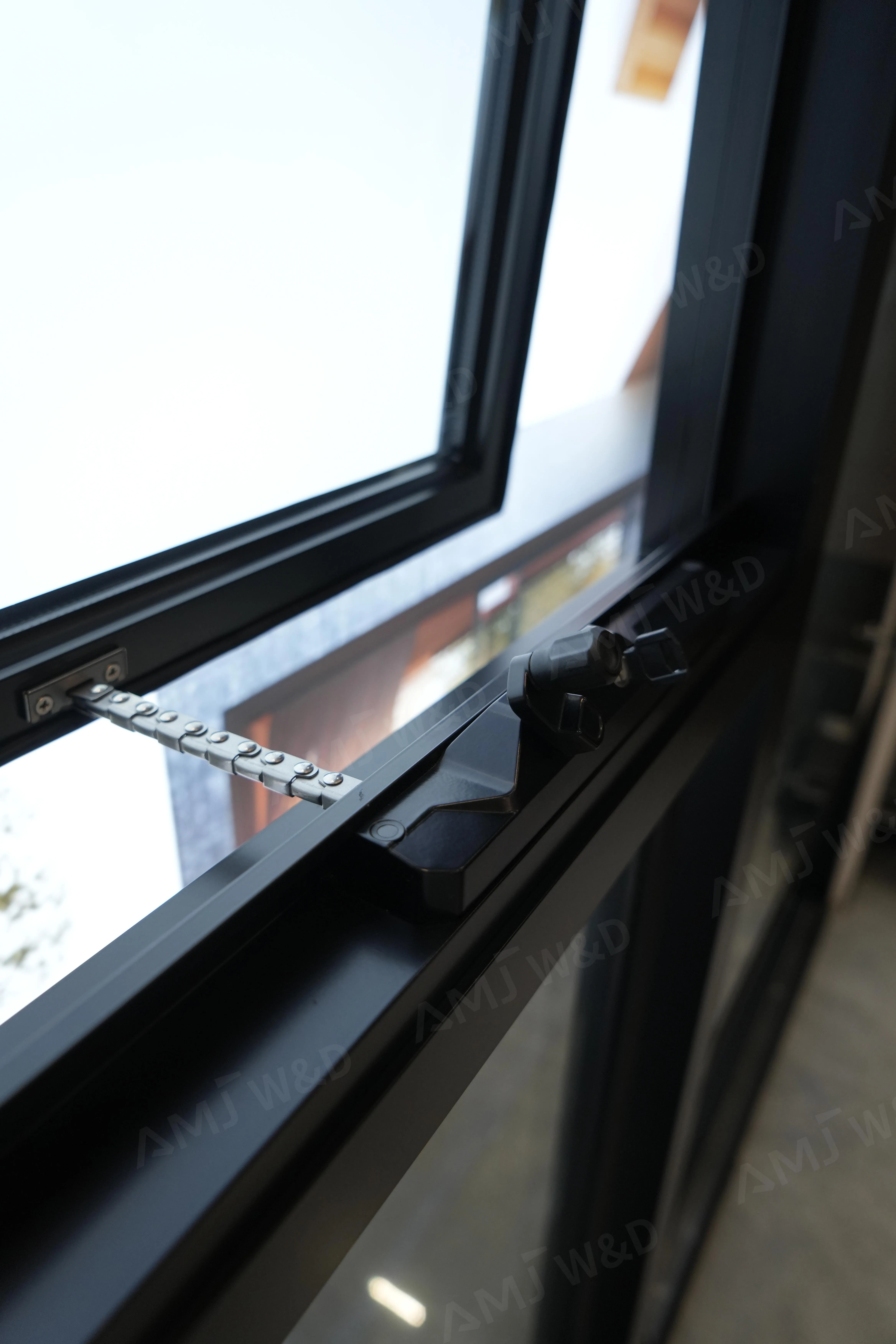

The hand crank opens and closes the sash with controlled movement without pushing the glass directly.

Fixed Interior Screen

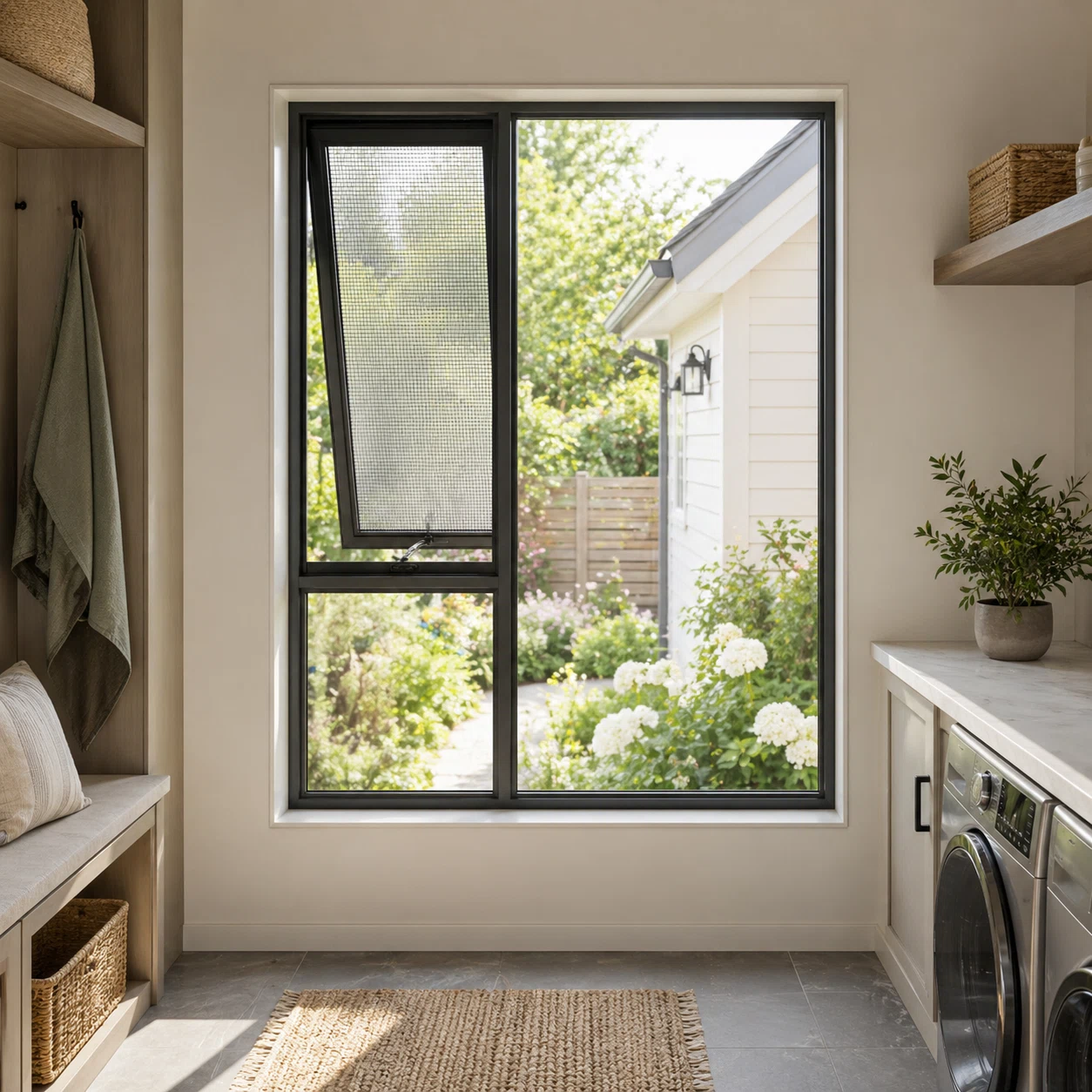

The screen stays on the room side while the sash opens outward. Stainless steel, fiberglass, and aluminum mesh are available.

Strong 2.0mm Profile

The 2.0mm aluminum profile and 102mm system depth provide a solid platform for residential and project windows.

Low-E Argon Glass

Standard 5mm Low-E + 12mm argon + 5mm tempered clear glass supports indoor comfort and energy performance.

600Pa Water Reference

The latest specification lists a 600Pa water-resistance reference for properly configured units.

Up to 4000Pa Wind Reference

The system carries a wind-pressure reference up to 4000Pa, subject to final sizing and installation.

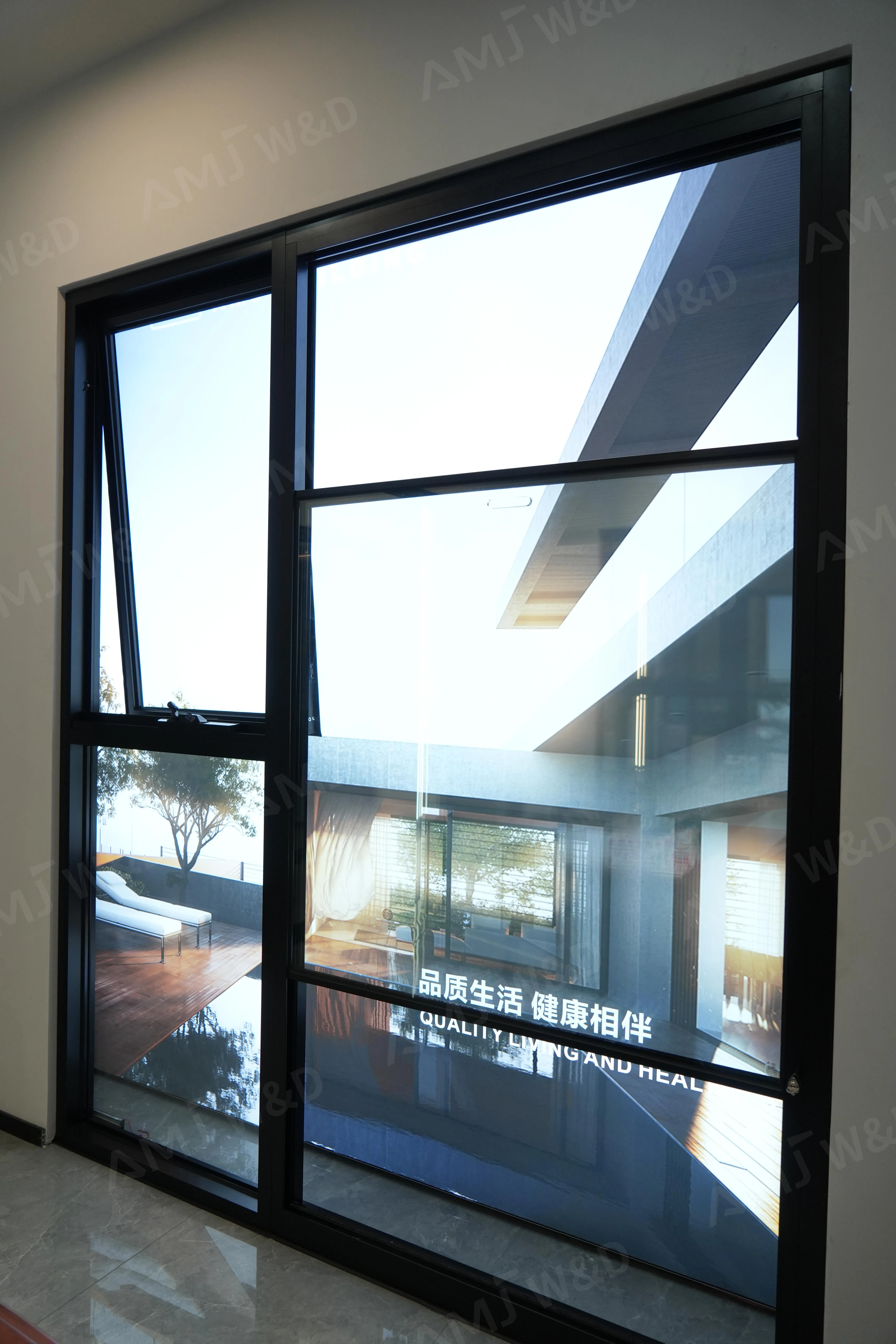

Crank-Out Awning Window Operation

See how the crank operator controls the top-hinged outward-opening sash and works with a fixed interior screen.

Configured for North American Crank Window Applications

The crank hardware, fixed screen, glass, sash size, installation method, and opening combination can be confirmed from the project drawings.

Product Configuration

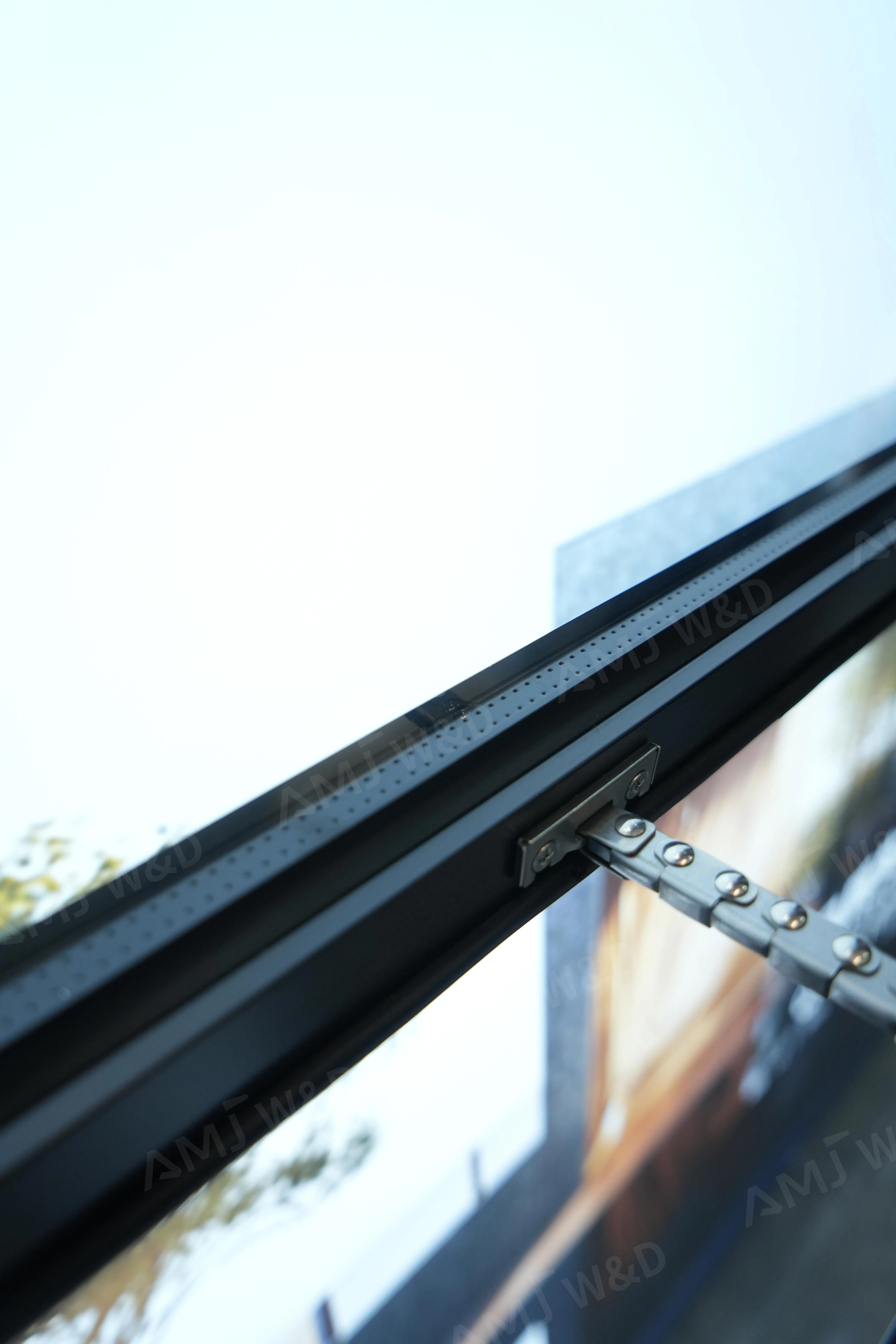

Opening methodCrank-operated top-hinged sash opening outward from the bottom.

Profile thickness2.0mm.

Standard hardwareDomestic crank hardware, black or white.

Awning sash size450–1000mm wide × 600–1800mm high.

Maximum sash weight55kg for the awning configuration.

Maximum sash area1.8m².

Standard glass5mm Low-E + 12mm argon + 5mm tempered clear glass.

Maximum IGU26mm.

Fixed screenStainless steel mesh, fiberglass mesh, or aluminum mesh.

InstallationNail fin or mounting tabs; upper and lower subframes with angle aluminum are also available.

Available layoutsSingle awning, single casement, pure fixed, one operable with one fixed panel, and fixed-screen combinations.

System dimensions102mm system depth; 55mm visible vertical frame; 76.4mm sash; 55mm mullion; 20mm frame thermal break; 14.8mm sash/conversion-frame thermal break.

Project Performance References

≥0.44Estimated U-Factor
BTU/(h·ft²·°F)

600PaEstimated Water Resistance

0.05 L/s·m²Estimated Air Leakage

≤4000PaEstimated Wind Pressure Resistance

33dBEstimated Sound Insulation

2.0mmAluminum Profile

All values shown here are estimated performance values from the latest AMJ product specification V2 dated July 23, 2026. Final values depend on window size, glass, configuration, installation, and the applicable test report.

Size Reference	Available Range	Weight / Area Limit
Awning sash width	450–1000mm	55kg maximum
Awning sash height	600–1800mm	1.8m² maximum area
