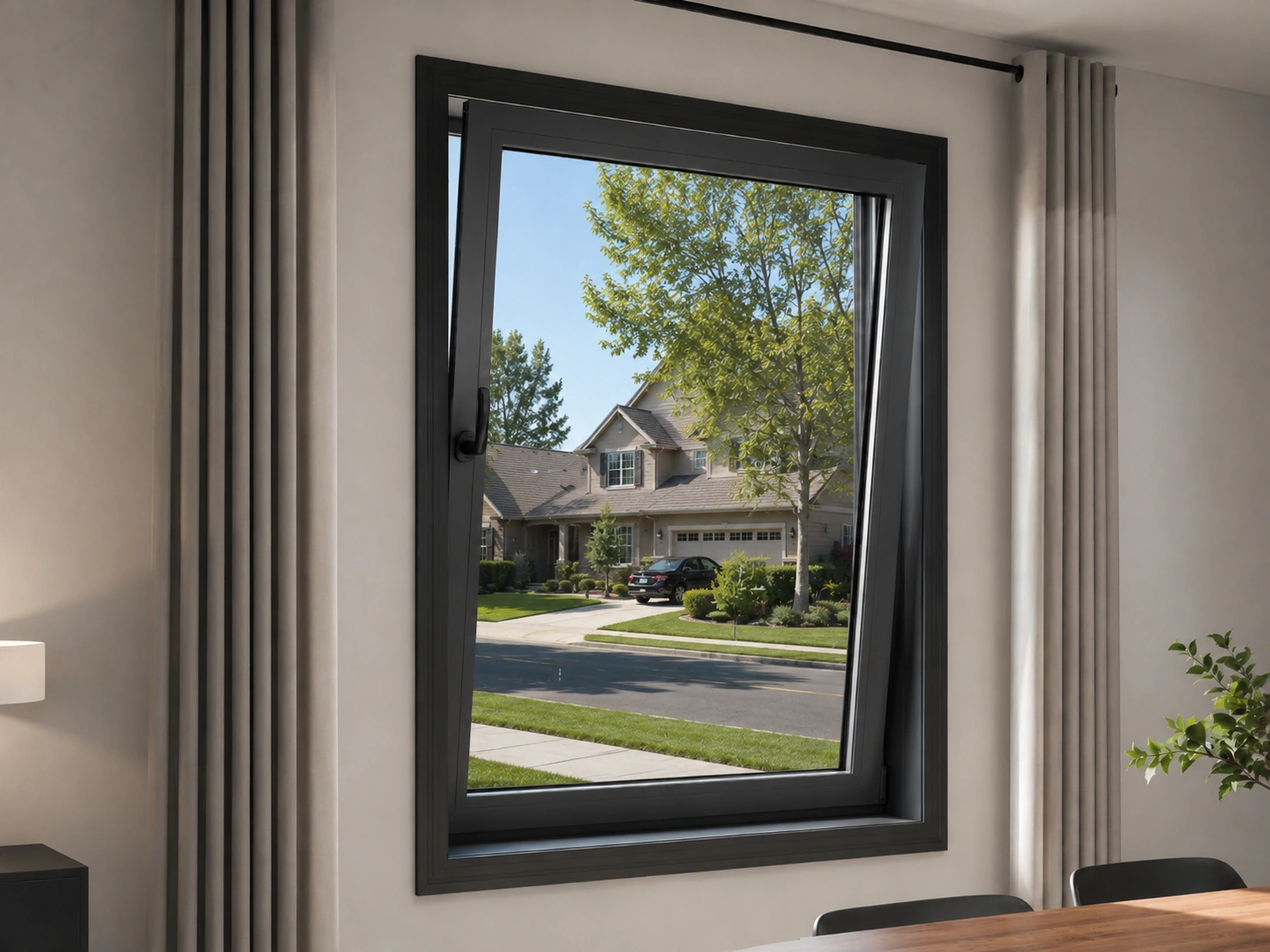

AMJ 88T Thermal Break Tilt & Turn Window

The AMJ 88T Series is a high-performance thermal break aluminum tilt and turn window designed for North American residential, villa, apartment, and light commercial projects. With an 88.4mm frame depth, triple Low-E argon-filled insulated glass, and German G-U hardware, this window system provides strong insulation, reliable sealing, and flexible inward opening ventilation.

Custom sizes, colors, glass options, screen options, and fixed-panel combinations are available according to project drawings and window schedules.

Product Advantages

88.4mm Thermal Break Frame

Wider thermal break structure helps improve insulation and indoor comfort for demanding climates.

Triple Low-E Argon Glass

Standard triple insulated glass supports better thermal performance and sound control.

Tilt & Turn Operation

Inward opening design allows secure ventilation and full opening for cleaning or access.

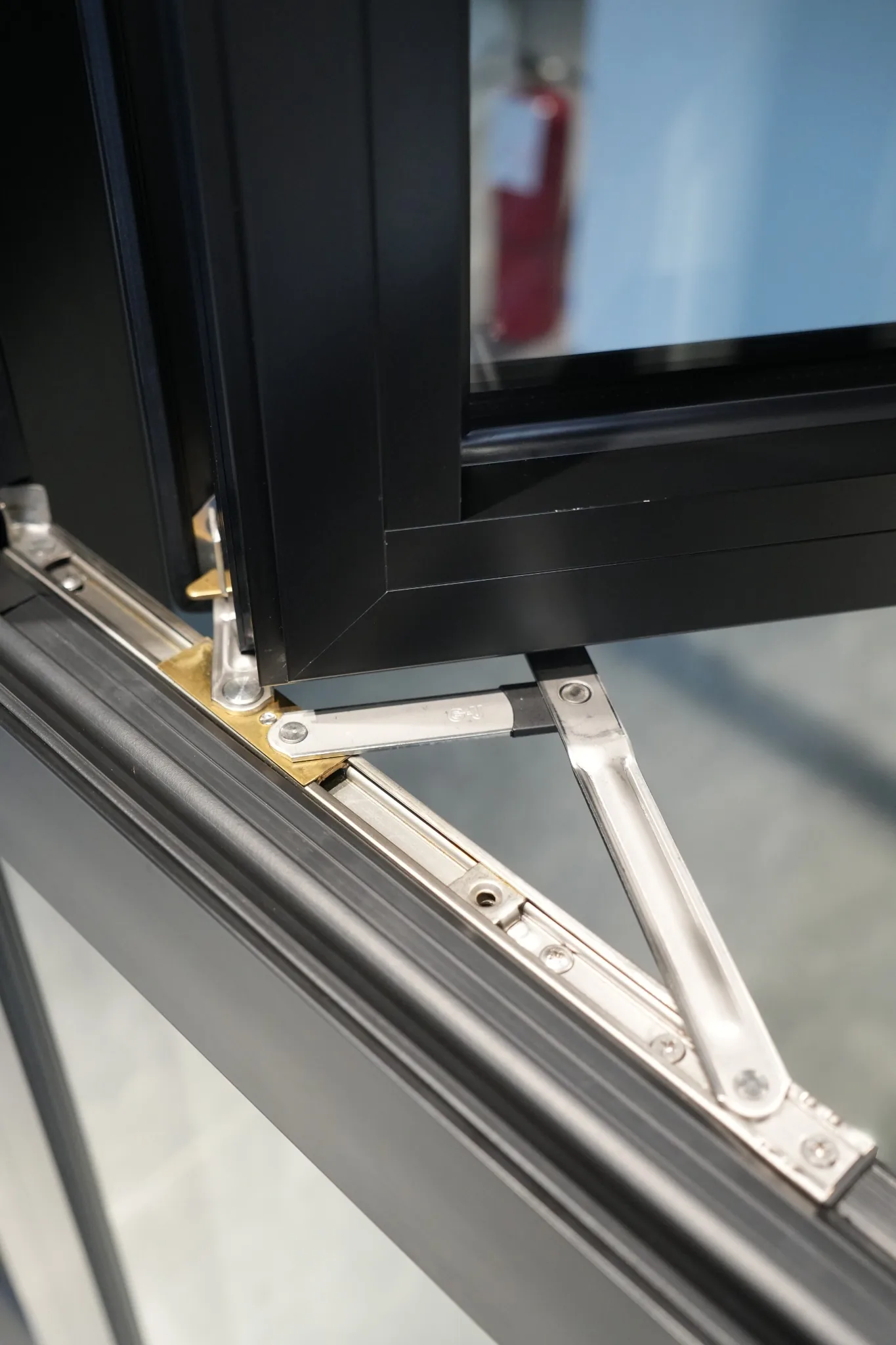

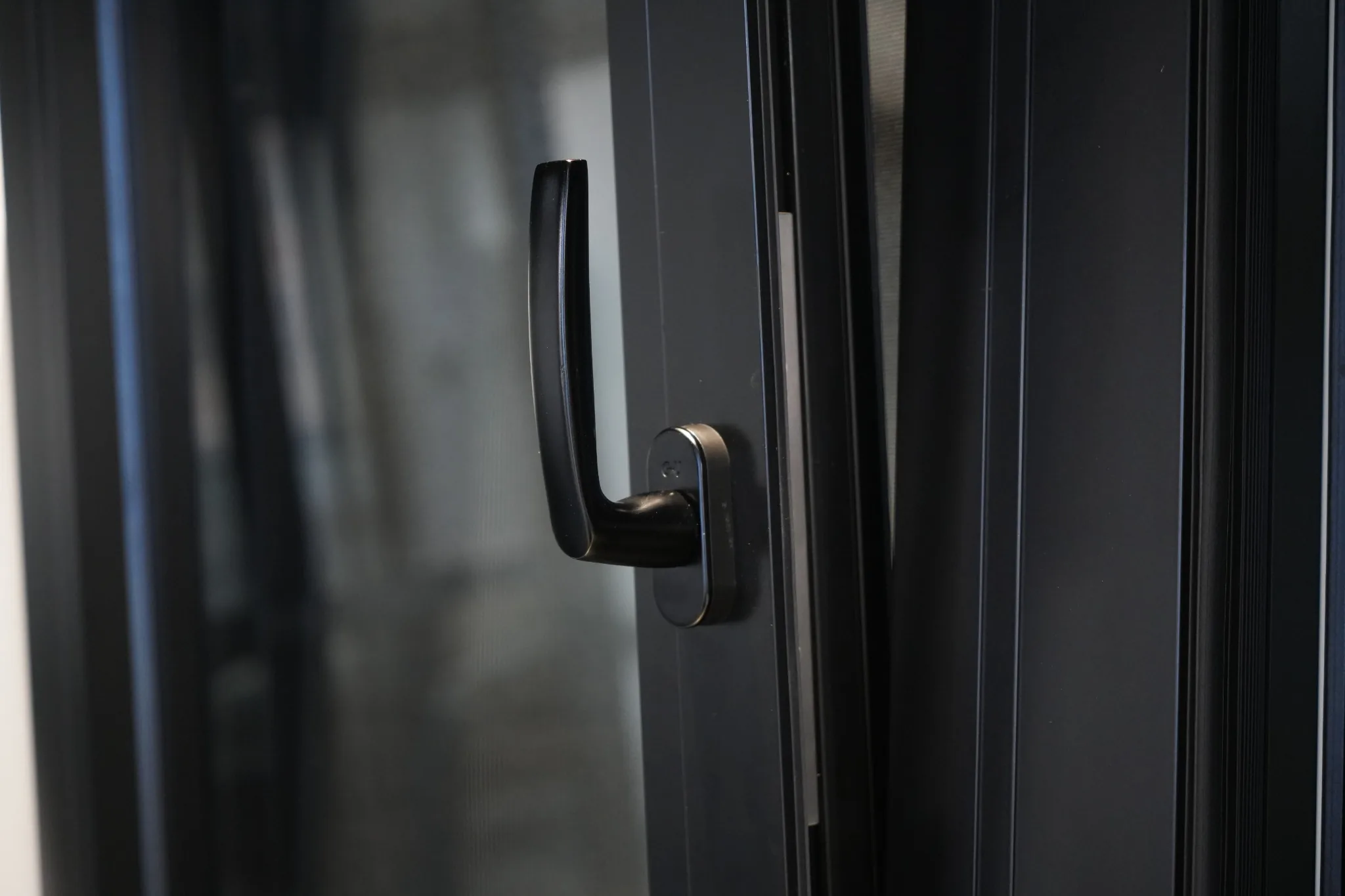

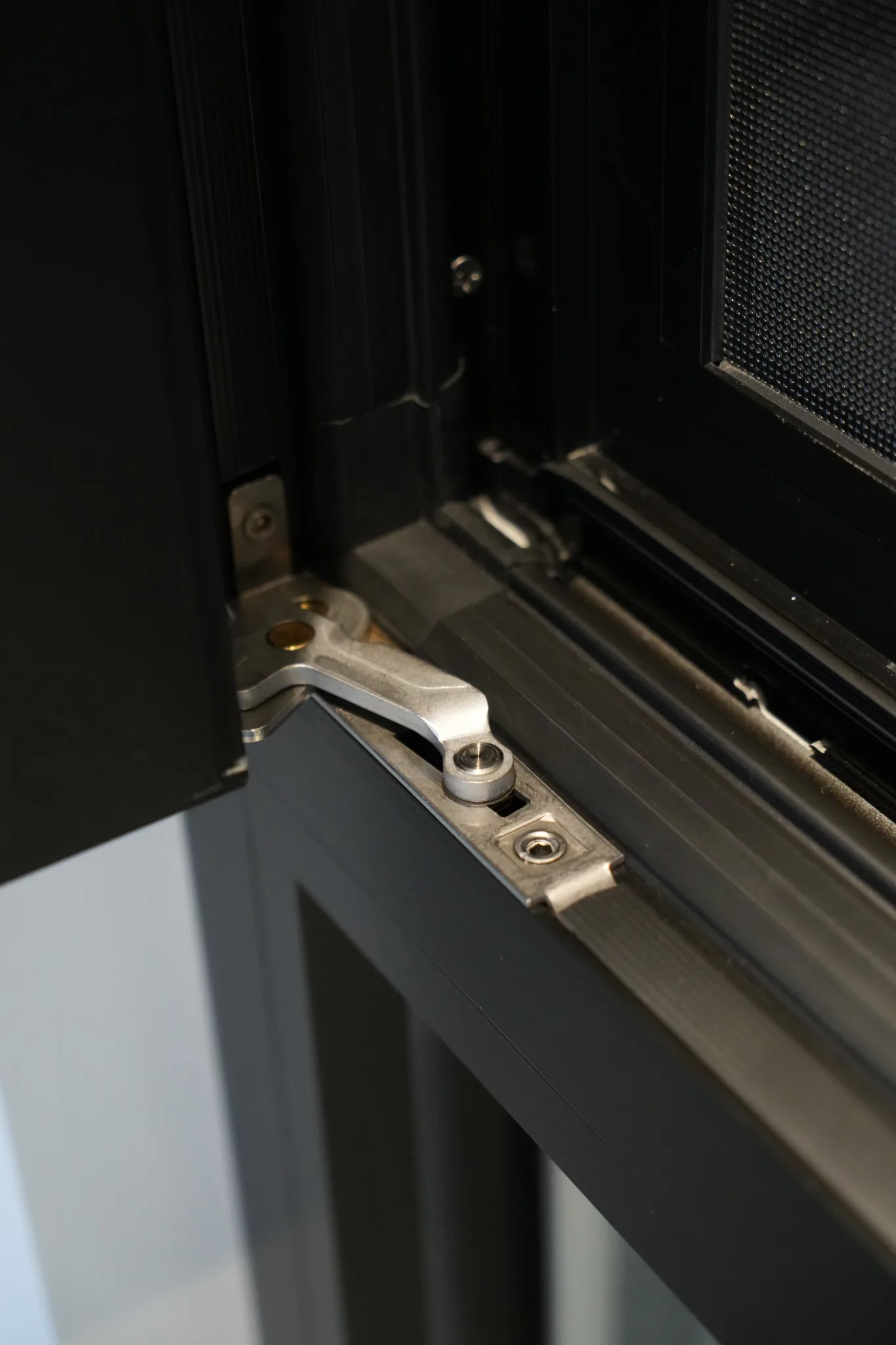

German G-U Hardware

Standard German G-U hardware provides smooth operation and reliable locking performance.

Strong Weather Performance

Designed for water tightness, air tightness, wind pressure resistance, and improved sound insulation.

CSA Certified

Suitable for North American projects requiring CSA-certified aluminum window solutions.

Technical Specifications

Product Name	AMJ 88T Series Tilt & Turn Window
Product Item	AMJ 88T Thermal Break Tilt & Turn Window
Profile Thickness	1.8mm
Frame Depth	88.4mm
Frame / Sash / Mullion	Frame 57mm / Sash 70.2mm / Mullion 78mm
Thermal Break Strip	44mm
Sash Size Range	500–1000mm width / 500–2800mm height
Maximum Sash Weight	100kg
Standard Glass	5mm Low-E + 12A Argon + 5mm + 12A Argon + 5mm Tempered Clear Glass
Optional Glass	Insulated glass thickness up to 58mm
Standard Hardware	German G-U Hardware, Black / White
Optional Hardware	HK Kinlong Hardware, Black / White
Screen Options	Fixed Stainless Steel Security Screen / Fiberglass Screen / Aluminum Screen
Installation Options	Nail Fin / Installation Brackets
Available Designs	Tilt & Turn / Tilt & Turn with Fixed Panel / Fixed Window / 90° and 135° Corner Window
Certification	CSA Certified

Product Performance

≥1.2 W/㎡·KU-Value

700PaWater Tightness

0.5m³/(m·h)Air Tightness

≤5000PaWind Pressure Resistance

37dBSound Insulation

Application

The AMJ 88T tilt and turn window is suitable for premium homes, villas, apartments, and light commercial buildings where better insulation, secure ventilation, and CSA-certified performance are required.

Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?

Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.

What should I send for a quotation?

Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.

Can you customize products according to project drawings?

Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.

Are your products suitable for export projects?

Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.

Do you have certifications or test reports?

Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.

What types of aluminum windows and doors do you offer?

We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.

How do you control quality before shipment?

Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.

How do you package products for export?

We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.

What is your normal production lead time?

Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.

What warranty and after-sales support do you provide?

AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.

...
