Screen-Ready Three-Track Aluminum Sliding Door
  1. Screen-Ready Three-Track Aluminum Sliding Door
  2. Screen-Ready Three-Track Aluminum Sliding Door
  3. Screen-Ready Three-Track Aluminum Sliding Door
  4. Screen-Ready Three-Track Aluminum Sliding Door
  5. Screen-Ready Three-Track Aluminum Sliding Door
  6. Screen-Ready Three-Track Aluminum Sliding Door
  7. Screen-Ready Three-Track Aluminum Sliding Door

Screen-Ready Three-Track Aluminum Sliding Door

Product Item：AMJ 150T Thermal Break Three-Track Sliding Door
✓ Best for patios, villas, apartments, and openings requiring sliding glass with an insect screen.

✓ Three-glass or two-glass-and-one-screen layouts, fixed panels, and post-free corners are available.

✓ 153mm three-track system with 2.0mm aluminum profiles and thermal break construction.

✓ Panel sizes from 700–1600mm wide × 2050–3000mm high; 140kg with two rollers or 200kg with four rollers.

✓ Low-E insulated glass up to 26mm, with HK Kinlong hardware and stainless steel or aluminum mesh screens.

✓ Custom sizes, colors, glass, hardware, screens, panel layouts, and installation options are available.

NFRC / CSA requirements can be reviewed by project.

Production as fast as 25 days · Warranty coverage up to 15 years.
Send Inquiry Live chat
  • Product Detail
  • FAQs

Screen-Ready Three-Track Aluminum Sliding Door

This three-track aluminum sliding door adds a dedicated screen track to a large-panel thermal break sliding system.

It is designed for patios, villas, apartments, and residential projects that need insulated glass, smooth sliding operation, and a stainless steel or aluminum mesh screen.

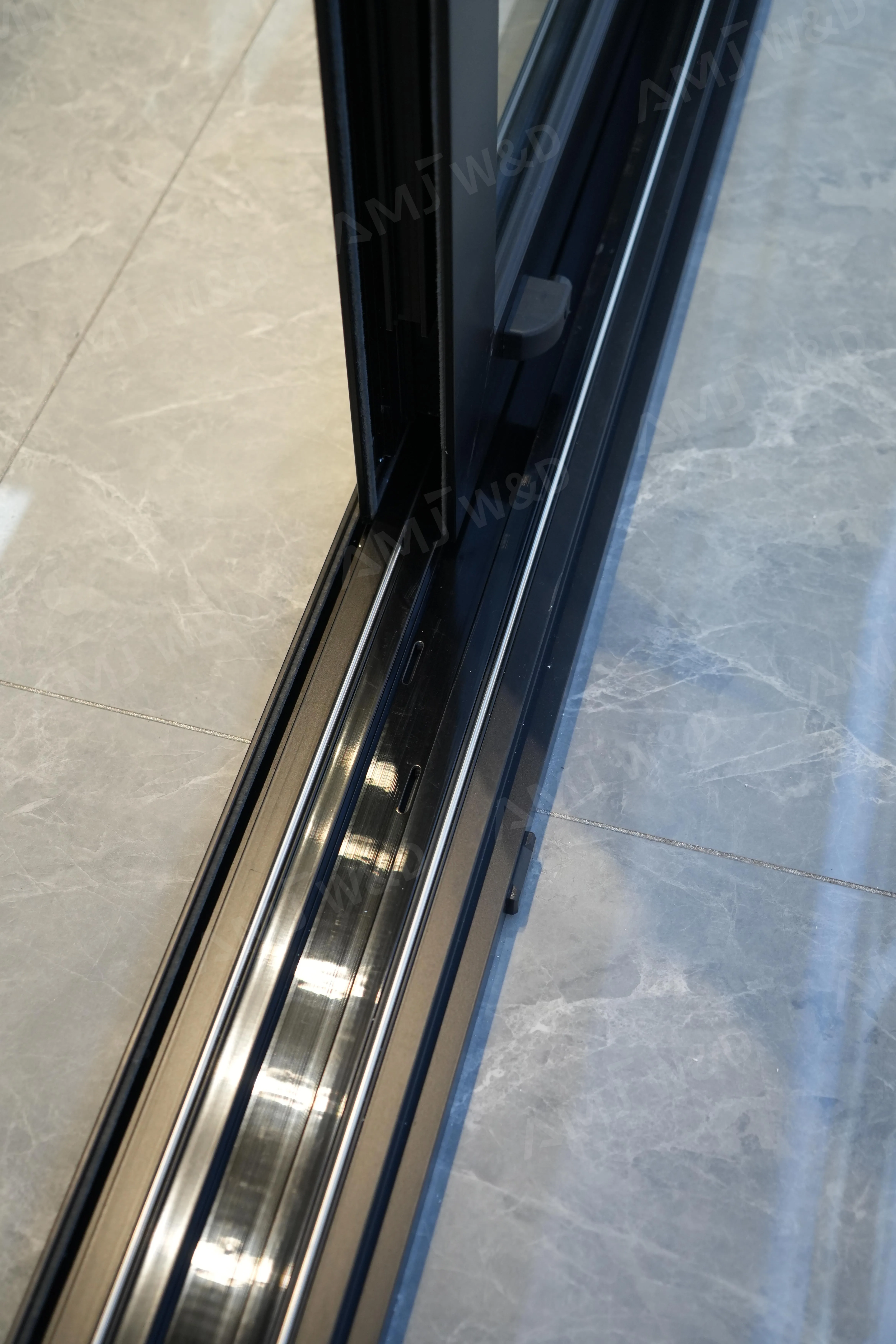

Three Tracks for Sliding Glass and Insect Screen Panels

The three-track frame supports three glass panels or a two-glass-and-one-screen layout without adding a separate exterior screen frame.

Panel range700–1600 × 2050–3000mm
Screen optionsStainless steel mesh / aluminum mesh
Main differenceDedicated third track for screen-ready layouts
2.0mmAluminum Profile
153mmThree-Track Depth
26mmMaximum IGU
140kg / 200kg2-Roller / 4-Roller Capacity
4.4m²Maximum Single Panel Area

Why Choose a Three-Track Sliding Door with Screen?

The added track gives builders a cleaner way to combine insulated glass and insect protection in one aluminum patio door system.

3 Tracks

Integrated Glass-and-Screen Layout

Use three glass panels or two glass panels with one metal mesh screen panel.

200kg

Four-Roller Capacity

The four-roller setup supports panels up to 200kg; the two-roller setup supports 140kg.

Metal Mesh

Screen Options

Choose fixed stainless steel mesh or aluminum mesh for ventilation and insect control.

26mm

Low-E Insulated Glass

Standard glazing is 5mm Low-E + 12mm argon + 5mm tempered clear glass.

Aluminum Sliding Door with Screen Operation

See the operating method, panel movement, and hardware behavior of this aluminum sliding door system.

Configured for Three-Track Sliding Door with Screen Projects

Send the opening size, panel and screen layout, quantity, glass, finish, installation detail, and project ZIP code for review.

Product Configuration

Profile thickness2.0mm.

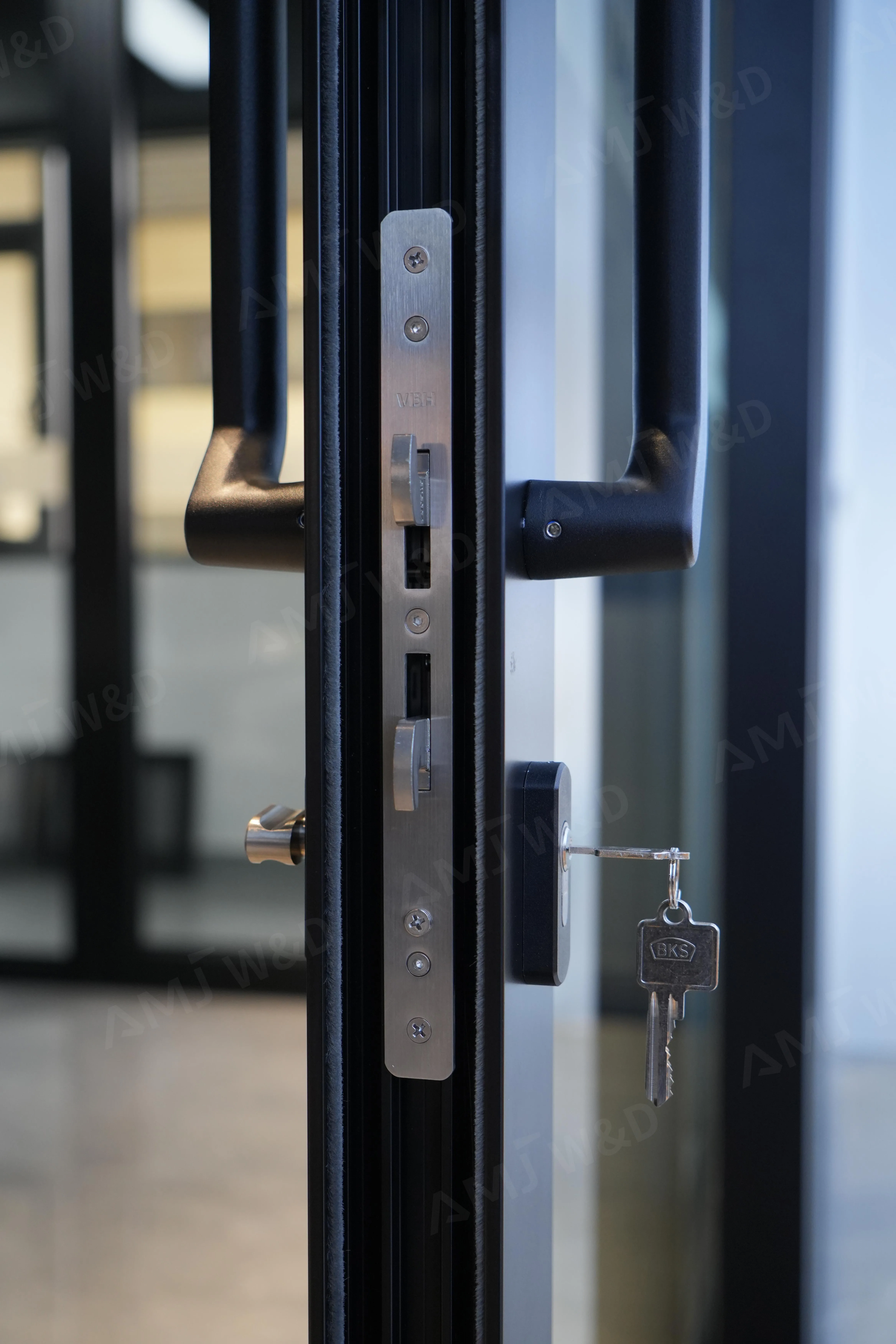

Standard hardwareHK Kinlong in black or white.
Panel size700–1600mm wide × 2050–3000mm high.
Panel capacity140kg with two rollers; 200kg with four rollers.
Standard glass5mm Low-E + 12mm argon + 5mm tempered clear glass.
Maximum IGU26mm.
ScreenStainless steel mesh or aluminum mesh.
InstallationNail fin, mounting tabs, or screws.
Available layoutsThree-track three-glass, three-track two-glass one-screen, top fixed, side fixed, center opening with fixed sides, and 90° post-free corner.
System dimensions153mm three-track depth; 55mm jamb and tracks; 69.8mm lock stile; 48.7mm meeting stile; 71mm top and bottom rail; 20mm frame thermal break; 14.8mm sash thermal break.

Estimated Performance References

≥0.53Estimated U-Factor
BTU/(h·ft²·°F)
300PaEstimated Water Resistance
2.9 L/s·m²Estimated Air Leakage
≤3000PaEstimated Wind Pressure
33dBEstimated Sound Insulation
2.0mmAluminum Profile
All values are estimated performance references from the latest AMJ product specification V2 dated July 23, 2026. Final results depend on panel size, glass, configuration, installation, and the applicable project test report.
For panels below 2800mm high, the V2 specification lists a single reinforced meeting stile. Maximum single-panel area: 4.4m².

Available Sliding Door Layouts

Final panel direction, fixed sections, screen position, and track layout should be confirmed from the project drawings.

Three-Track Three-Glass

Three sliding glass panels.

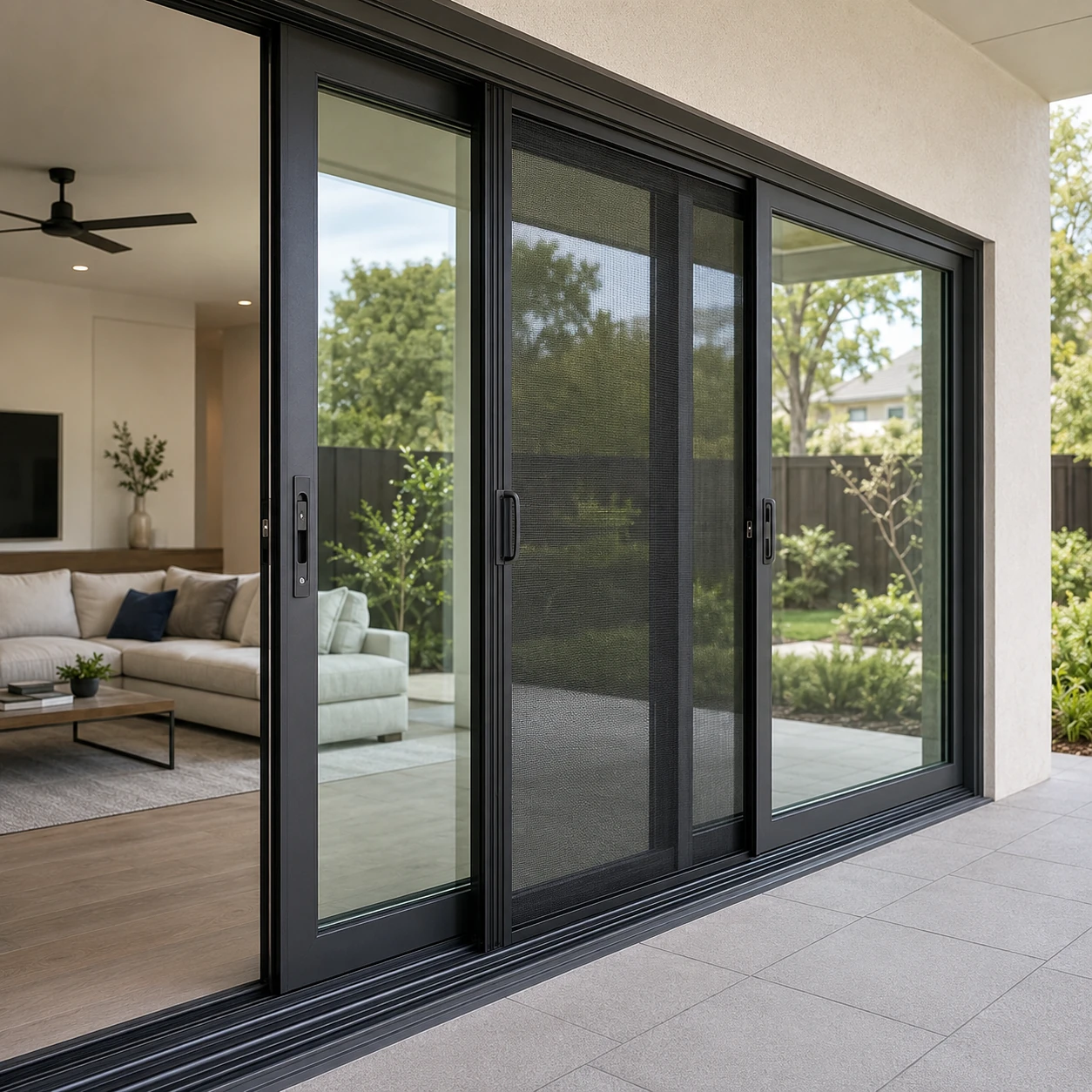

Two Glass + One Screen

Integrated screen-ready ventilation layout.

Center Opening + Fixed Sides

Center panels slide with fixed side panels.

90° Post-Free Corner

Corner layout subject to drawing review.

Our Strength

Checking and Alignment

1. Checking & Alignment

Cutting and Punching

2. Cutting & Punching

Milling Holes

3. Milling Holes

Assembly

4. Assembly

Glass Assembly

5. Glass Assembly

Packaging

6. Packaging

Delivery

7. Delivery

Installation

8. Installation

Drawing and Engineering Review

Drawing & Engineering Review

Sample Support

Sample Support

Quality Inspection

Quality Inspection

U.S. Showrooms

U.S. Showrooms

Local On-Site Support

48-Hour On-Site Support

Warranty Service

Warranty Service

NFRC Certificate

NFRC

CSA Certificate

CSA

ENERGY STAR Certificate

ENERGY STAR

ISO Certificate

ISO

Which Aluminum Sliding Door Fits Your Project?

Only the main differences are shown, so buyers can compare the four sliding door systems quickly.

Two-Track Thermal Break Aluminum Sliding Door

Best forSimple two-track patio openings
Panel range700–1600 × 2050–3000mm
Capacity140kg / 200kg
Main differenceTwo-track system; no screen listed
CURRENT

Screen-Ready Three-Track Aluminum Sliding Door

Best forGlass-and-screen patio openings
Panel range700–1600 × 2050–3000mm
Capacity140kg / 200kg
Main differenceDedicated screen track

Ultra-Slim Panoramic Aluminum Sliding Door

Best forMinimal sightlines and oversized glass
Panel range800–2500 × 1800–3500mm
Capacity400kg / 800kg
Main difference21mm meeting stile

Heavy-Duty Thermal Break Lift and Slide Door

Best forLift-and-slide operation and larger panels
Panel range800–2400 × 1800–3000mm
Capacity200kg / 300kg
Main differenceG-U lift-and-slide hardware

Frequently Asked Questions

What are the main advantages of this three-track sliding door?

It combines a dedicated screen track, Low-E insulated glass, metal mesh screen options, large panels, and flexible fixed-panel or corner layouts.

Which screen materials are available?

The V2 specification lists fixed stainless steel mesh and aluminum mesh.

Can it be ordered with three glass panels?

Yes. The listed layouts include three-track three-glass and three-track two-glass one-screen configurations.

What information should I send for a quotation?

Send the project location, opening sizes, panel layout, quantity, glass, color, screen requirement, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

Start Your Three-Track Sliding Door Project

Send your drawings, opening sizes, panel layout, or BOQ for glass, hardware, track configuration, and project pricing.
