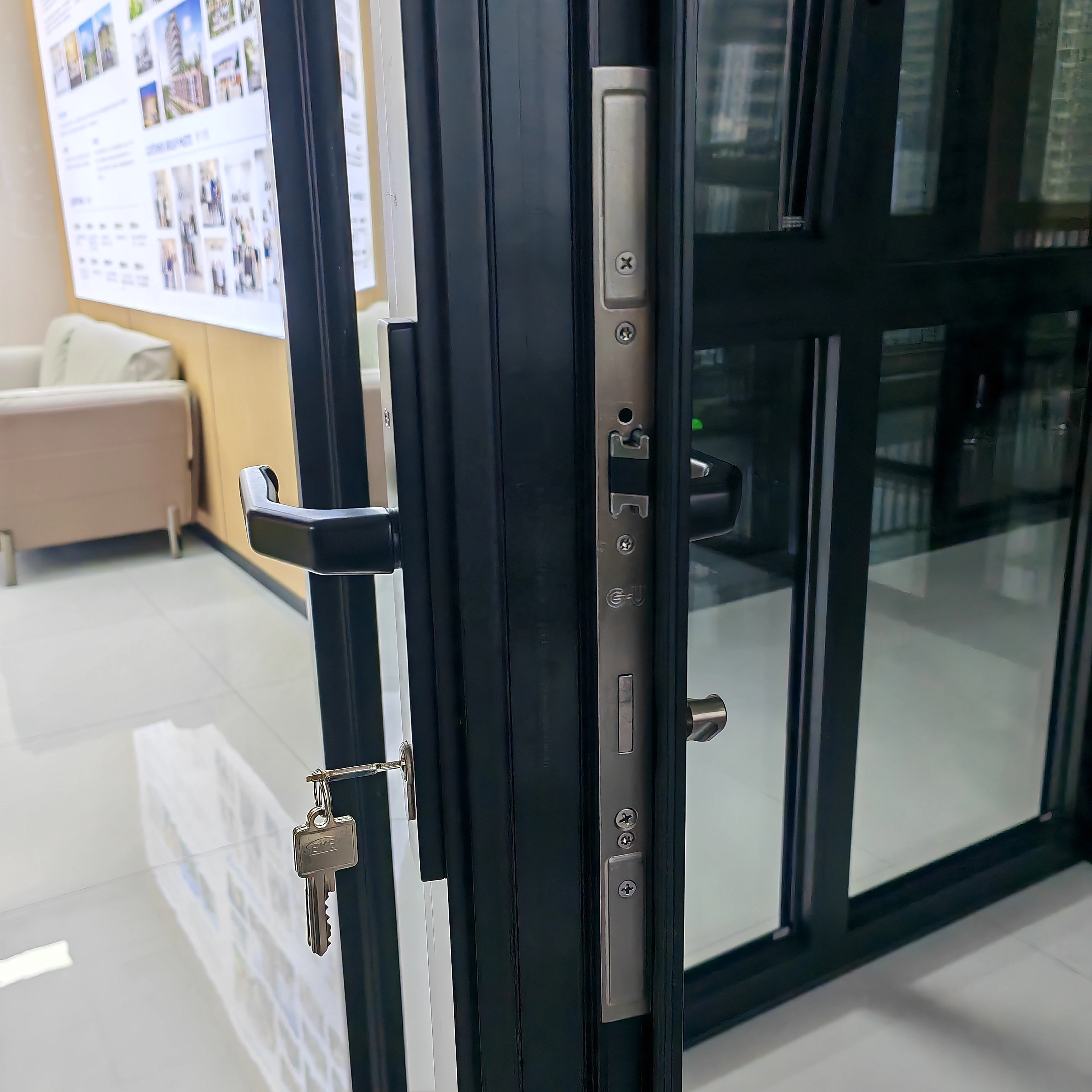

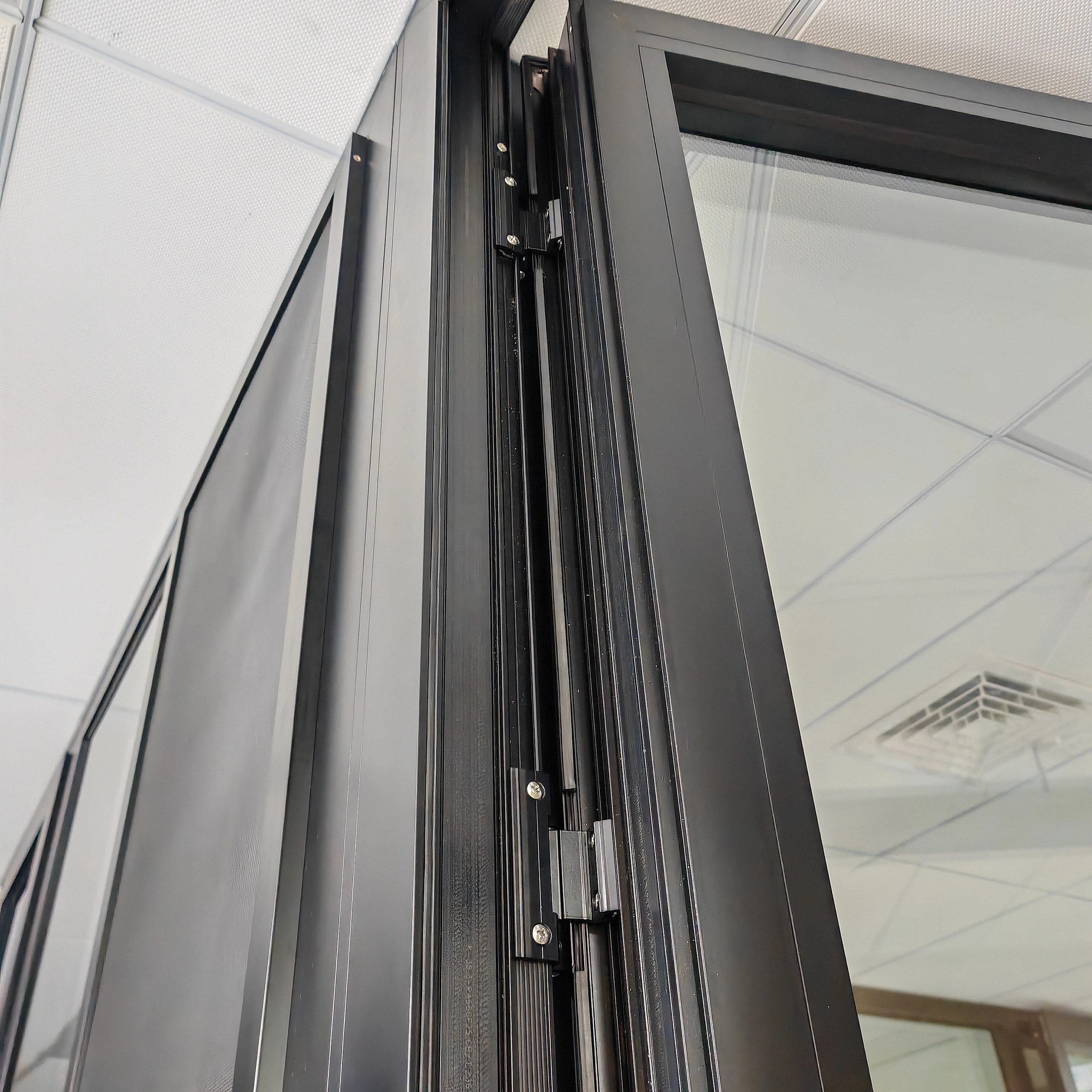

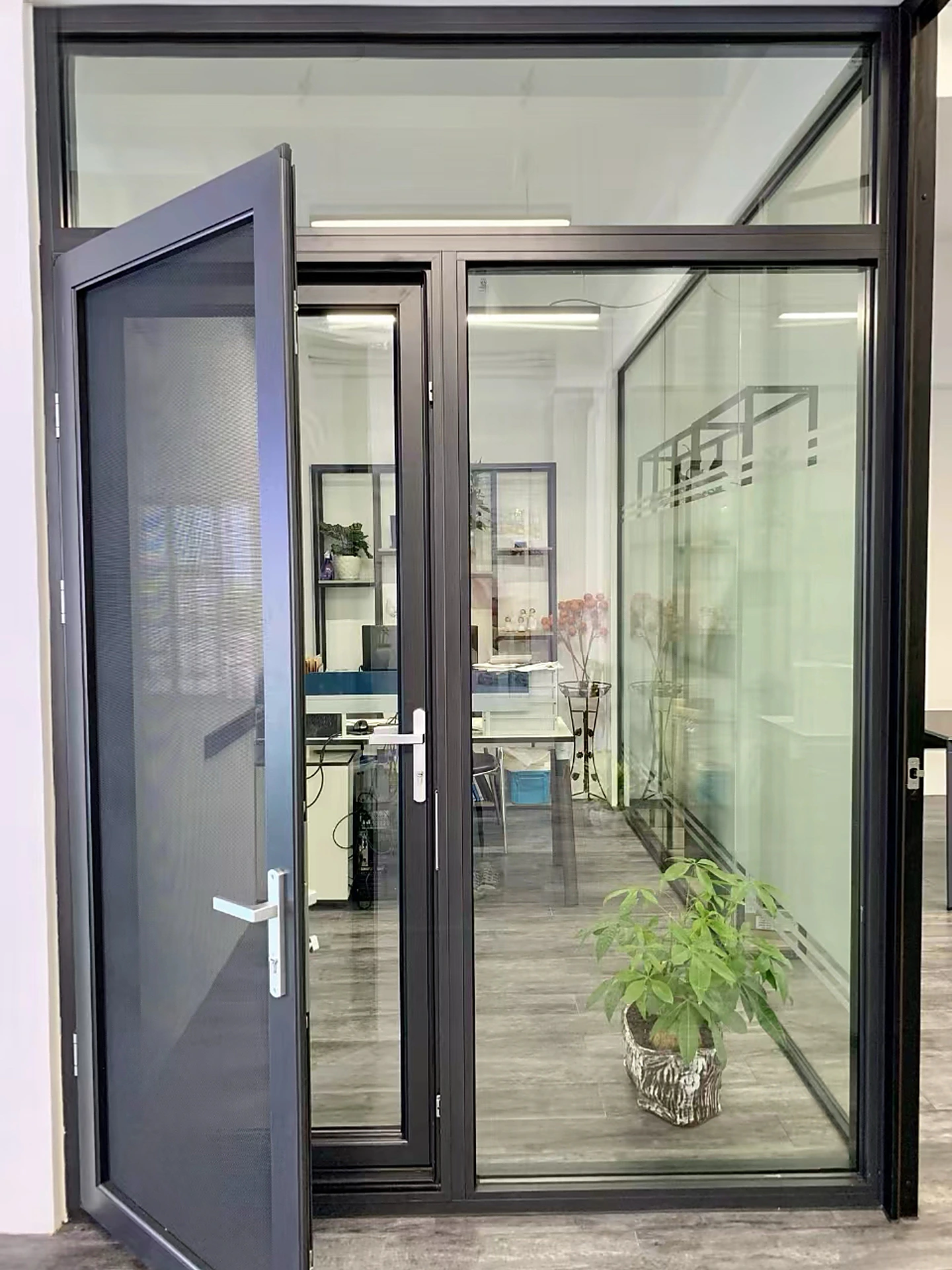

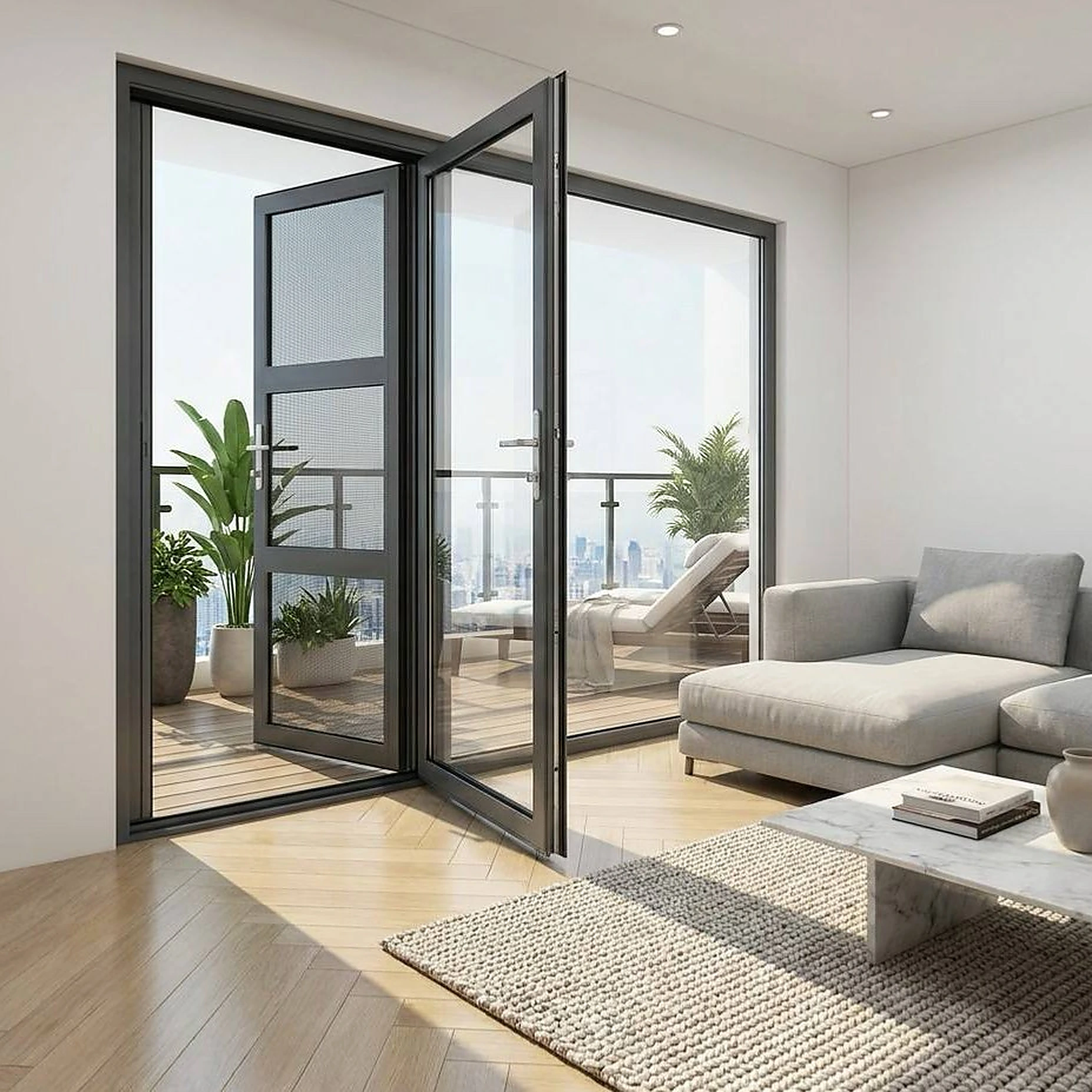

Screen-Ready Thermal Break Aluminum Hinged Door
  1. Screen-Ready Thermal Break Aluminum Hinged Door
  2. Screen-Ready Thermal Break Aluminum Hinged Door
  3. Screen-Ready Thermal Break Aluminum Hinged Door
  4. Screen-Ready Thermal Break Aluminum Hinged Door

Screen-Ready Thermal Break Aluminum Hinged Door

Product Item：AMJ 150T Series Casement Door
✓ Best for villas, apartments, townhouses, and entrances requiring ventilation and insect protection.

✓ Single doors, double doors, fixed panels, outside-glass/inside-screen, and outside-screen/inside-glass layouts are available.

✓ 102mm system depth with 2.0mm aluminum profiles and a 20mm thermal break.

✓ Door leaf sizes from 500–1000mm wide × 1800–2600mm high, up to 60kg.

✓ Low-E insulated glass up to 26mm, with HK Kinlong hardware and stainless steel or aluminum mesh screens.

✓ Custom sizes, colors, glass, hardware, screens, fixed panels, and installation options are available.

NFRC / CSA requirements can be reviewed by project.

Production from approximately 25 days · Standard 7-year warranty
Send Inquiry Live chat
  • Product Detail
  • FAQs

Screen-Ready Thermal Break Aluminum Hinged Door

This screen-ready thermal break aluminum hinged door combines an insulated glass door with stainless steel or aluminum mesh options.

It is intended for villas, apartments, townhouses, and residential entrances that need airflow and insect protection in the same opening.

2.0mm Aluminum Profile
500–1000mm Single Door Width
1800–2600mm Single Door Height
60kg Maximum Door Leaf Weight
26mm Maximum IGU

Why Choose This Hinged Door with Screen?

Choose this model when you want a glass hinged door and a metal mesh screen to work in the same entrance.

You Need Fresh Air Without Bugs

The metal mesh screen allows ventilation while helping keep insects outside.

You Want Glass and Screen Together

The system supports outside-glass and inside-screen or outside-screen and inside-glass layouts.

You Need a Strong 102mm Frame

The wide frame supports custom residential entrances and fixed-panel combinations.

You Want Simple Layout Choices

Single doors, double doors, and left or right fixed-panel combinations are available.

Project Options, Screen Choices, and Performance

The screen and entrance options are shown here without repeating the quick size data above.

Project and System Options

InstallationNail fin, mounting tabs, or screws.
Available layoutsSingle door, double door, left or right fixed panels, outside glass with inside screen, and outside screen with inside glass.
System dimensions102mm depth; 55mm vertical and top frame; 89.9mm door leaf; 70mm mullion; 20mm frame and leaf thermal break; 14.8mm conversion edge.
ScreenStainless steel mesh or aluminum mesh.

Threshold and Screen

High Threshold50mm interior height / 30mm exterior height.
Metal Mesh ScreenStainless steel mesh or aluminum mesh.
For door leaves below 2200mm high, the current specification lists three hinges.
≥2.4 W/m²·KEstimated U-Value
300PaEstimated Water Resistance
3.6 m³/(m·h)Estimated Air Leakage
≤4000PaEstimated Wind Pressure
33dBEstimated Sound Insulation

Performance figures are estimated references from the latest AMJ product specification. Final results depend on door size, glass, configuration, installation, and the applicable project test report.

Available Aluminum Hinged Door Layouts

Final swing direction, fixed panels, threshold type, and structural details should be confirmed from the project drawings.

Single Hinged Door

One operable aluminum door leaf.

Double Hinged Door

Two operable leaves for a wider entrance.

Door with Fixed Panel

A hinged door combined with fixed glass.

Glass Outside + Screen Inside

Insulated glass on the exterior side and metal mesh inside.

Screen Outside + Glass Inside

Metal mesh on the exterior side and insulated glass inside.

Our Strength

Checking and Alignment

1. Checking & Alignment

Cutting and Punching

2. Cutting & Punching

Milling Holes

3. Milling Holes

Assembly

4. Assembly

Glass Assembly

5. Glass Assembly

Packaging

6. Packaging

Delivery

7. Delivery

Installation

8. Installation

Drawing and Engineering Review

Drawing & Engineering Review

Sample Support

Sample Support

Quality Inspection

Quality Inspection

U.S. Showrooms

U.S. Showrooms

Local On-Site Support

48-Hour On-Site Support

Warranty Service

Warranty Service

NFRC Certificate

NFRC

CSA Certificate

CSA

ENERGY STAR Certificate

ENERGY STAR

ISO Certificate

ISO

Which Aluminum Hinged Door Fits Your Project?

Only the main customer-visible differences are shown below.

Standard Thermal Break Aluminum Hinged Door

Standard 67mm system with 24mm thermal break and up to 36mm IGU.

High-Insulation Aluminum Hinged Door

78.3mm system with 35.3mm thermal break and up to 47mm IGU.

Wide-Frame Thermal Break Aluminum Hinged Door

102mm wide-frame system with high or low threshold options.

CURRENT

Screen-Ready Thermal Break Aluminum Hinged Door

102mm system with stainless steel or aluminum mesh screen configurations.

Frequently Asked Questions

Which screen materials are available?

The current specification lists stainless steel mesh and aluminum mesh.

What information should I send for a quotation?

Send the project location, rough opening sizes, door layout, quantity, glass, finish, threshold or screen requirements, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

How long do production and shipping take?

Standard production can be as fast as 25 days after drawings, sizes, glass, finish, and hardware are confirmed. Larger or more complex orders may take about 30–55 days. Transit time depends on the destination and carrier schedule and is confirmed before shipment.

What warranty is included?

A standard 7-year warranty is available for the ordered door system, subject to the final order terms and normal use. Longer warranty options may be reviewed for qualifying projects.

Start Your Screen-Ready Hinged Door Project

Send your drawings, door schedule, rough opening sizes, or BOQ for glass, threshold, hardware, layout, and project pricing.

Request a Project Quote Chat on WhatsApp


Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?
Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.
What should I send for a quotation?
Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.
Can you customize products according to project drawings?
Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.
Are your products suitable for export projects?
Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.
Do you have certifications or test reports?
Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.
What types of aluminum windows and doors do you offer?
We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.
How do you control quality before shipment?
Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.
How do you package products for export?
We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.
What is your normal production lead time?
Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.
What warranty and after-sales support do you provide?
AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.
...
