Standard Thermal Break Aluminum Hinged Door
  1. Standard Thermal Break Aluminum Hinged Door
  2. Standard Thermal Break Aluminum Hinged Door
  3. Standard Thermal Break Aluminum Hinged Door
  4. Standard Thermal Break Aluminum Hinged Door
  5. Standard Thermal Break Aluminum Hinged Door
  6. Standard Thermal Break Aluminum Hinged Door
  7. Standard Thermal Break Aluminum Hinged Door
  8. Standard Thermal Break Aluminum Hinged Door
  9. Standard Thermal Break Aluminum Hinged Door

Standard Thermal Break Aluminum Hinged Door

Product Item：AMJ 67T Thermal Break Aluminum Casement Door
✓ Best for villas, townhouses, apartments, residential entrances, and light commercial projects.

✓ Single, double, transom, sidelight, high-threshold, and low-threshold options are available.

✓ 67mm system depth with a 24mm thermal break and 2.0mm aluminum profiles.

✓ Door leaf sizes from 500–1000mm wide × 1800–2800mm high, up to 100kg.

✓ Low-E double or triple glazing up to 39mm, with German G-U hardware.

✓ Custom sizes, colors, glass, hardware, thresholds, fixed panels, and installation options are available.

NFRC certification support is available · CSA requirements can be reviewed by project.

Production as fast as 25 days · Warranty coverage up to 15 years
Send Inquiry Live chat
  • Product Detail
  • FAQs

Standard Thermal Break Aluminum Hinged Door

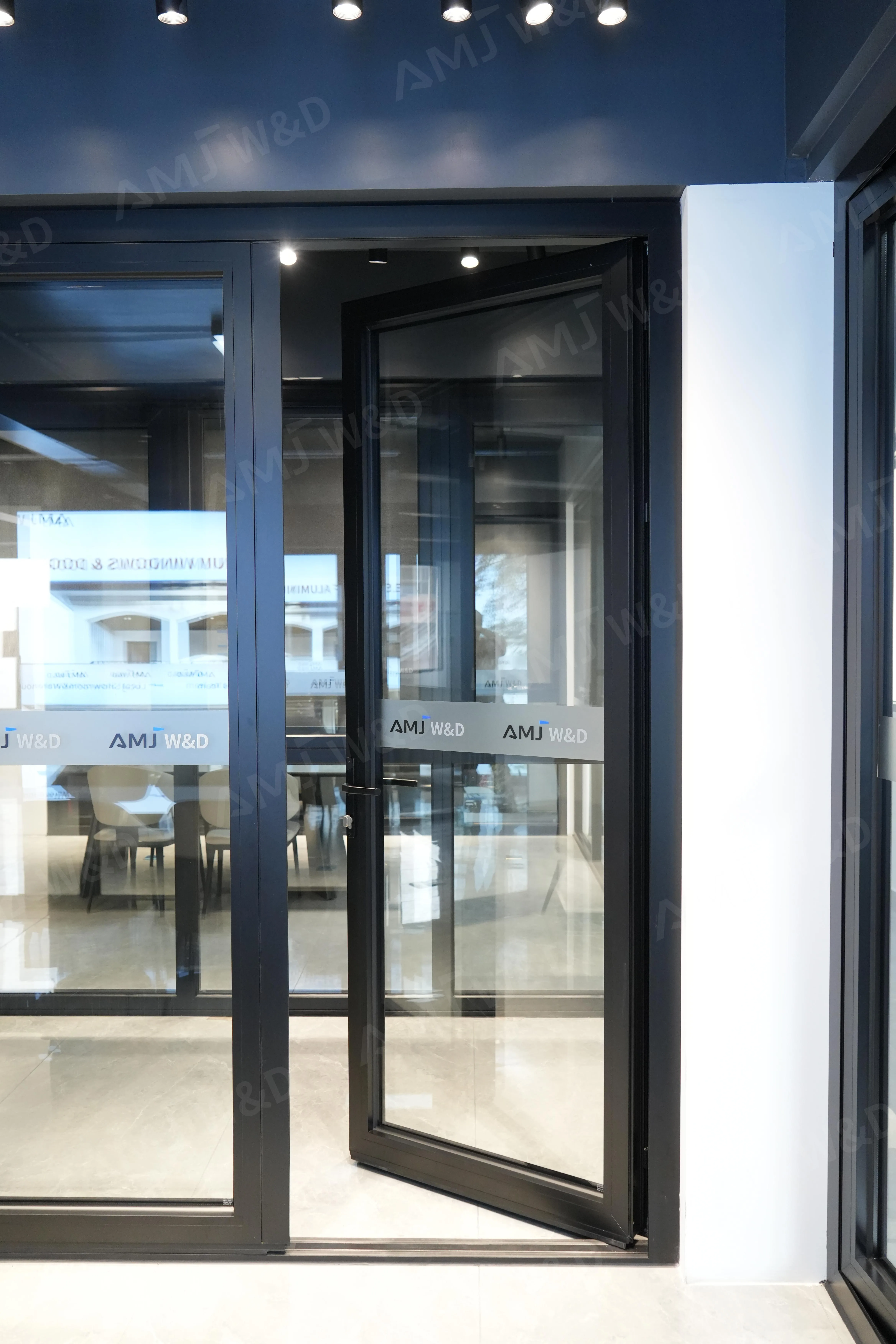

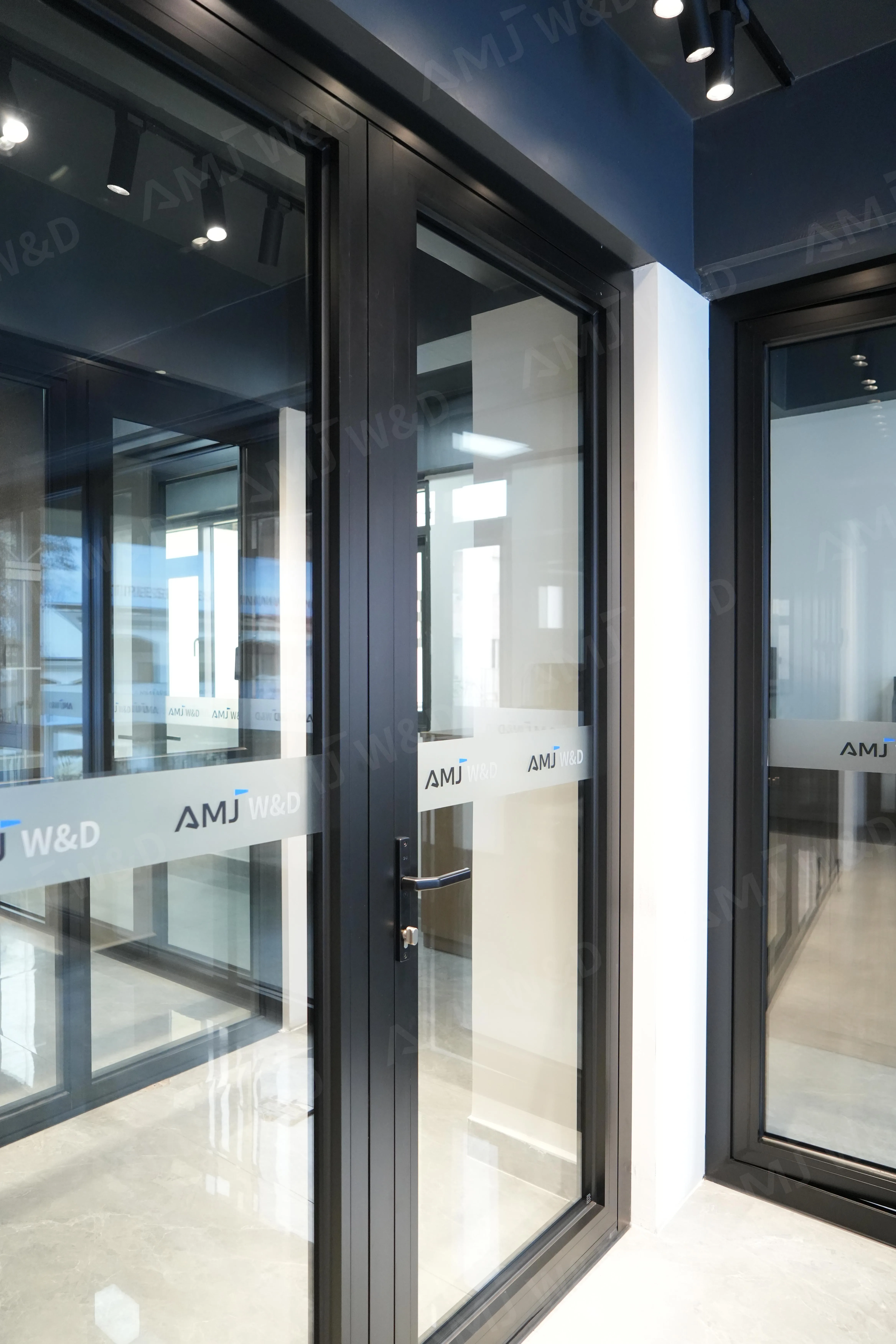

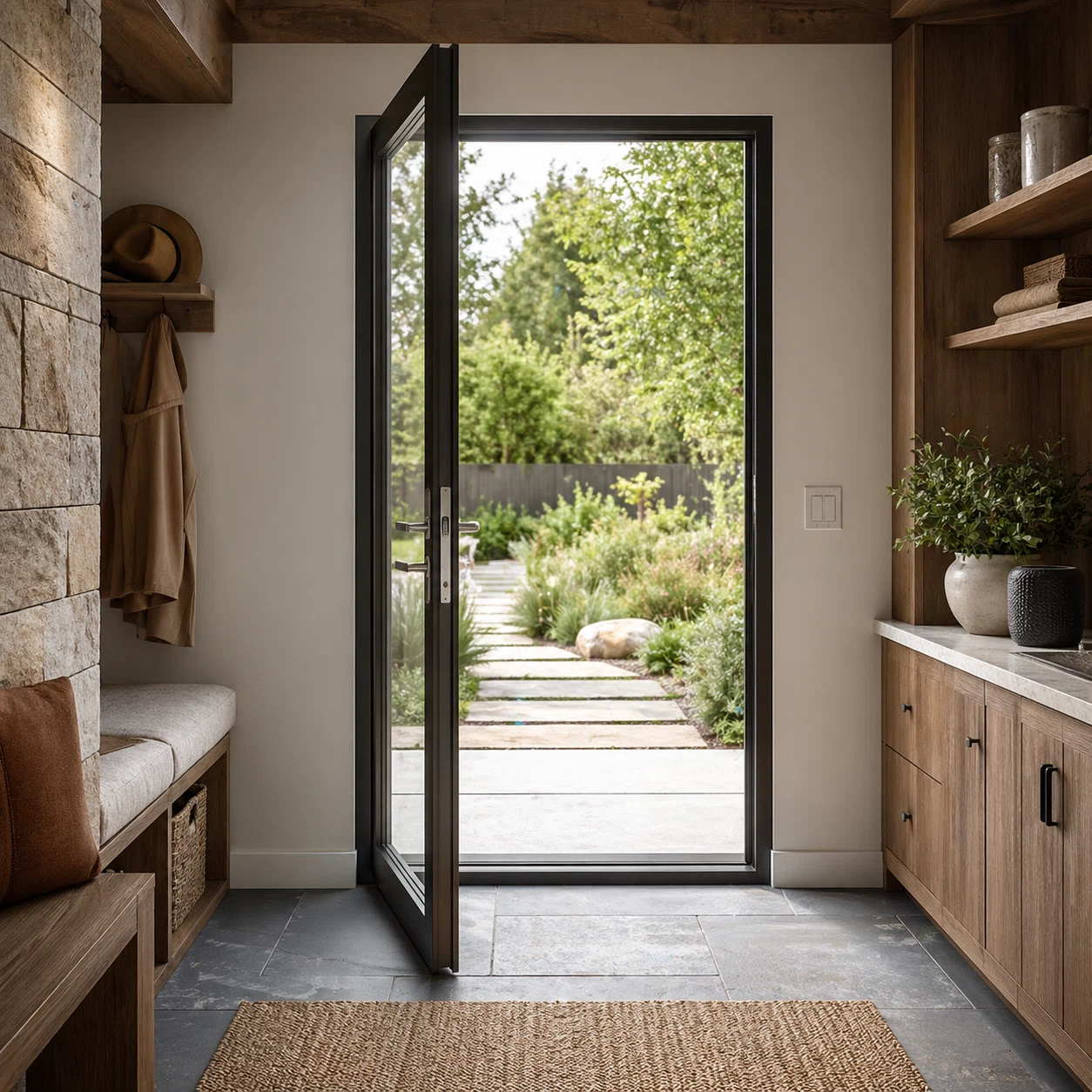

This thermal break aluminum hinged door is designed for residential entrances, villas, apartments, townhouses, and light commercial projects.

A 2.0mm aluminum profile, German G-U hardware, Low-E insulated glass, high or low threshold options, and single or double door layouts give builders a practical custom entry door system.

2.0mm Aluminum Profile
500–1000mm Single Door Width
1800–2800mm Single Door Height
100kg Maximum Door Leaf Weight
36mm Maximum IGU

Why Choose This Aluminum Hinged Door?

The main benefits are summarized below without repeating the quick specifications shown above.

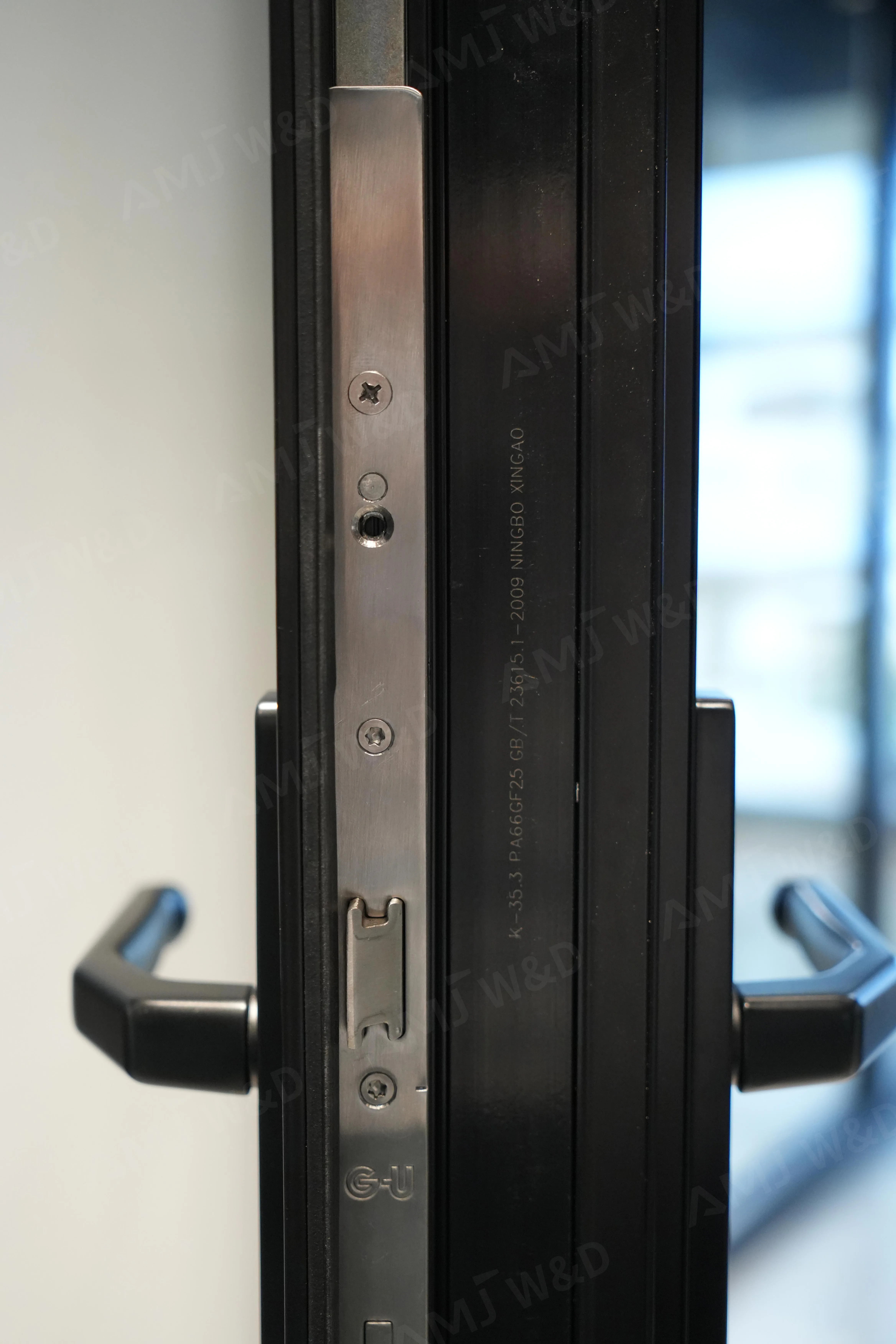

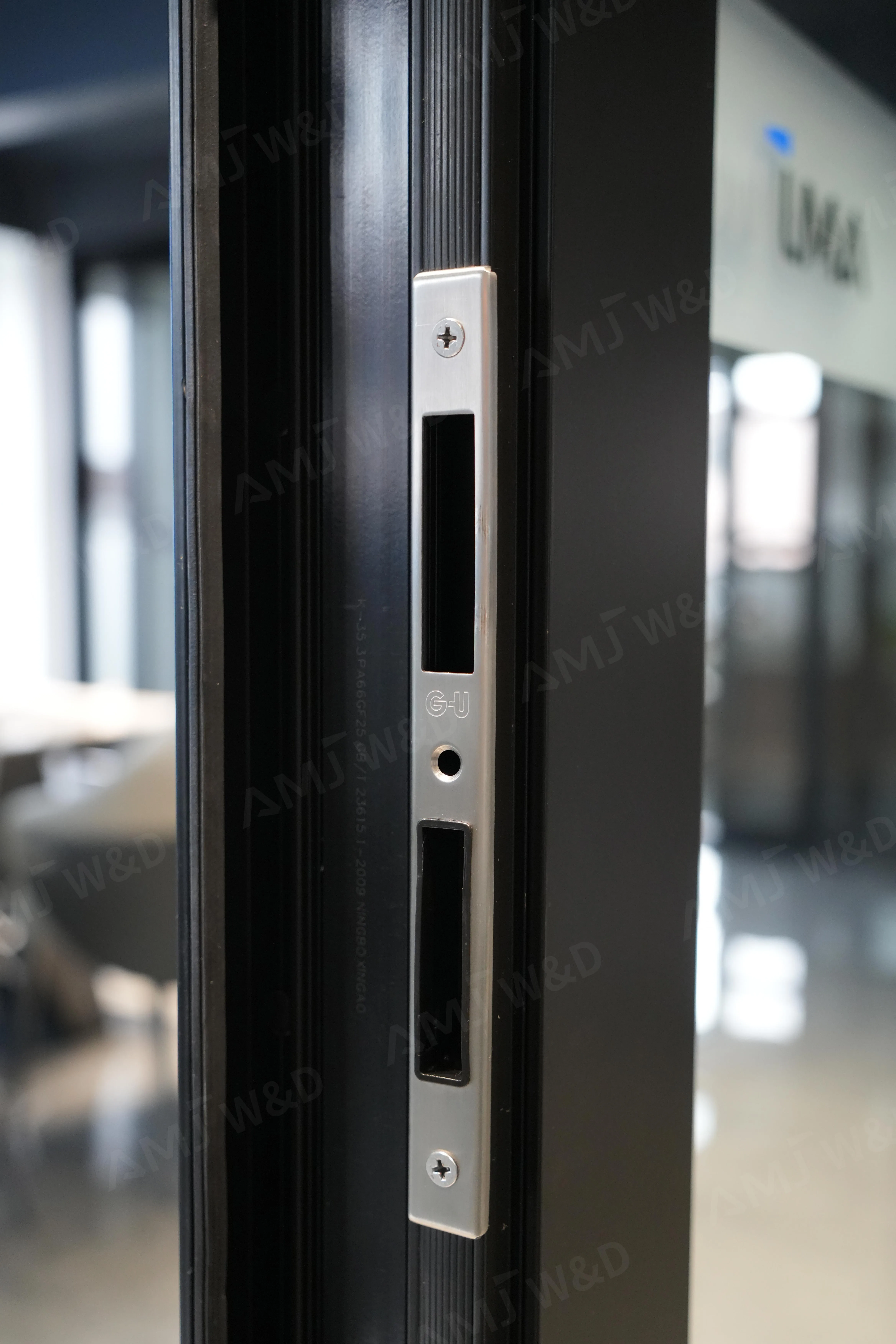

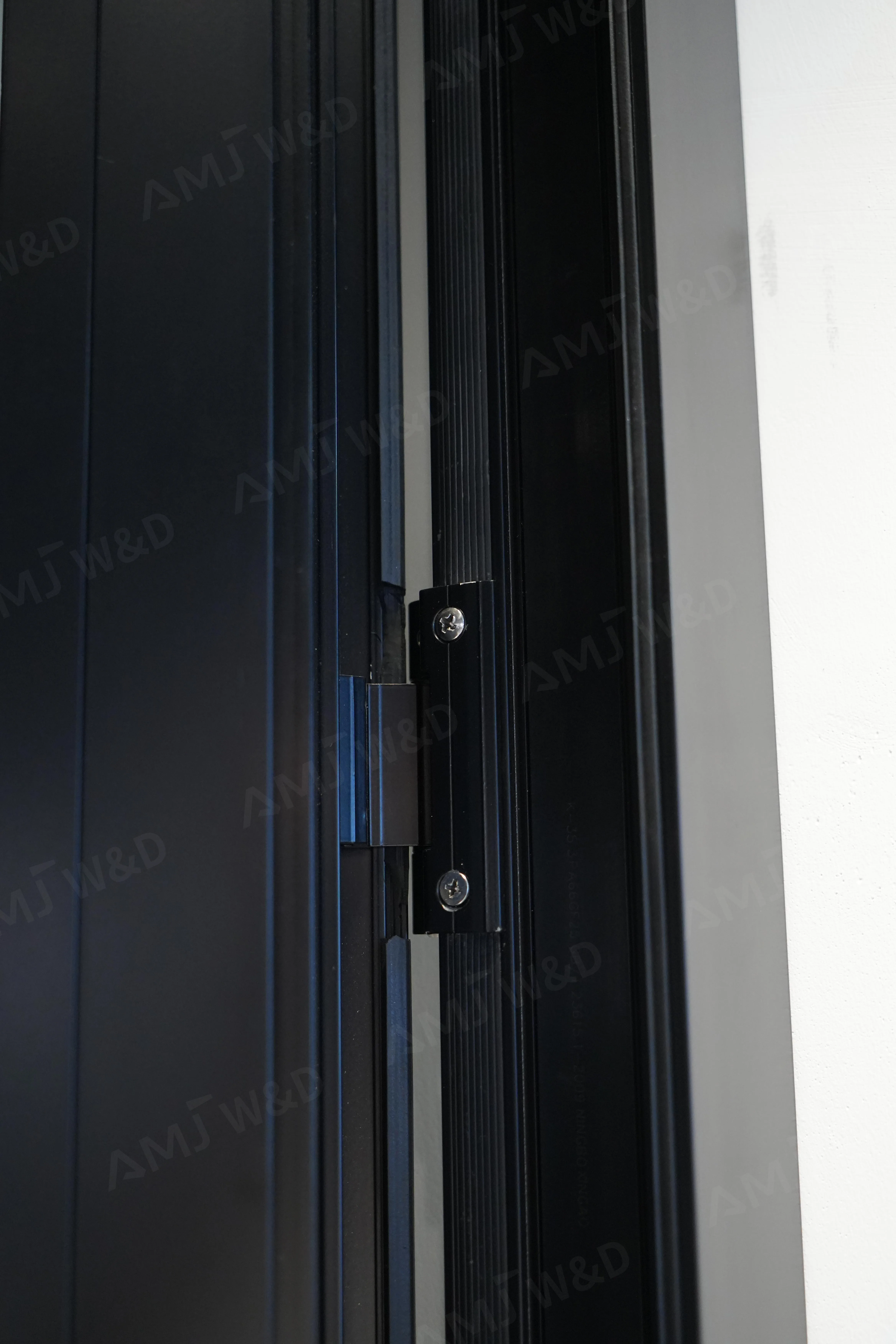

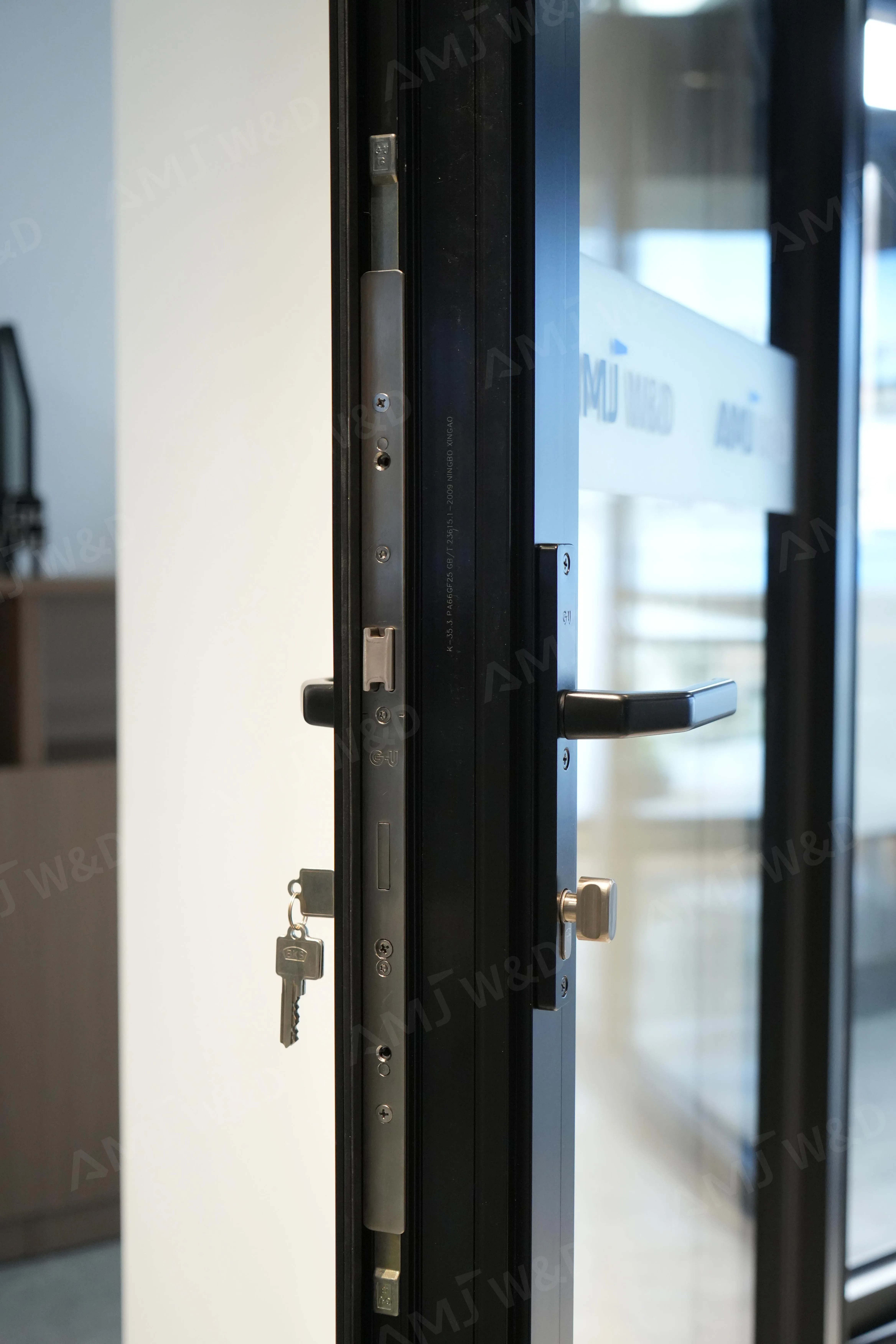

German G-U Hardware

Black or white G-U hardware is standard, with HK Kinlong available as an option.

High or Low Threshold

Choose the threshold configuration that matches the entrance and finished floor detail.

Flexible Entrance Layouts

Available as a single door, double door, top fixed panel, or door with one or two sidelights.

Double or Triple Glazing

Low-E argon-filled double glazing and triple glazing are available within the 36mm IGU capacity.

Thermal Break Aluminum Hinged Door Operation

See the opening movement, handle operation, and closing action of this custom aluminum hinged door system.

Project Options, Thresholds, and Performance

Detailed project options are listed here, while size, weight, and glass capacity remain in the quick specification bar above.

Project and System Options

Installation Nail fin, mounting tabs, or screws.
Available layouts Single door, double door, top fixed panel, left or right fixed panels, high threshold, and low threshold.
System dimensions 67mm depth; 72mm frame; 96.5mm leaf; 84mm mullion; 24mm thermal break.
Screen No screen option is listed for this system.

Threshold Options

High Threshold 72mm interior height / 44mm exterior height.
Low Threshold 18mm interior height / 12mm exterior height.

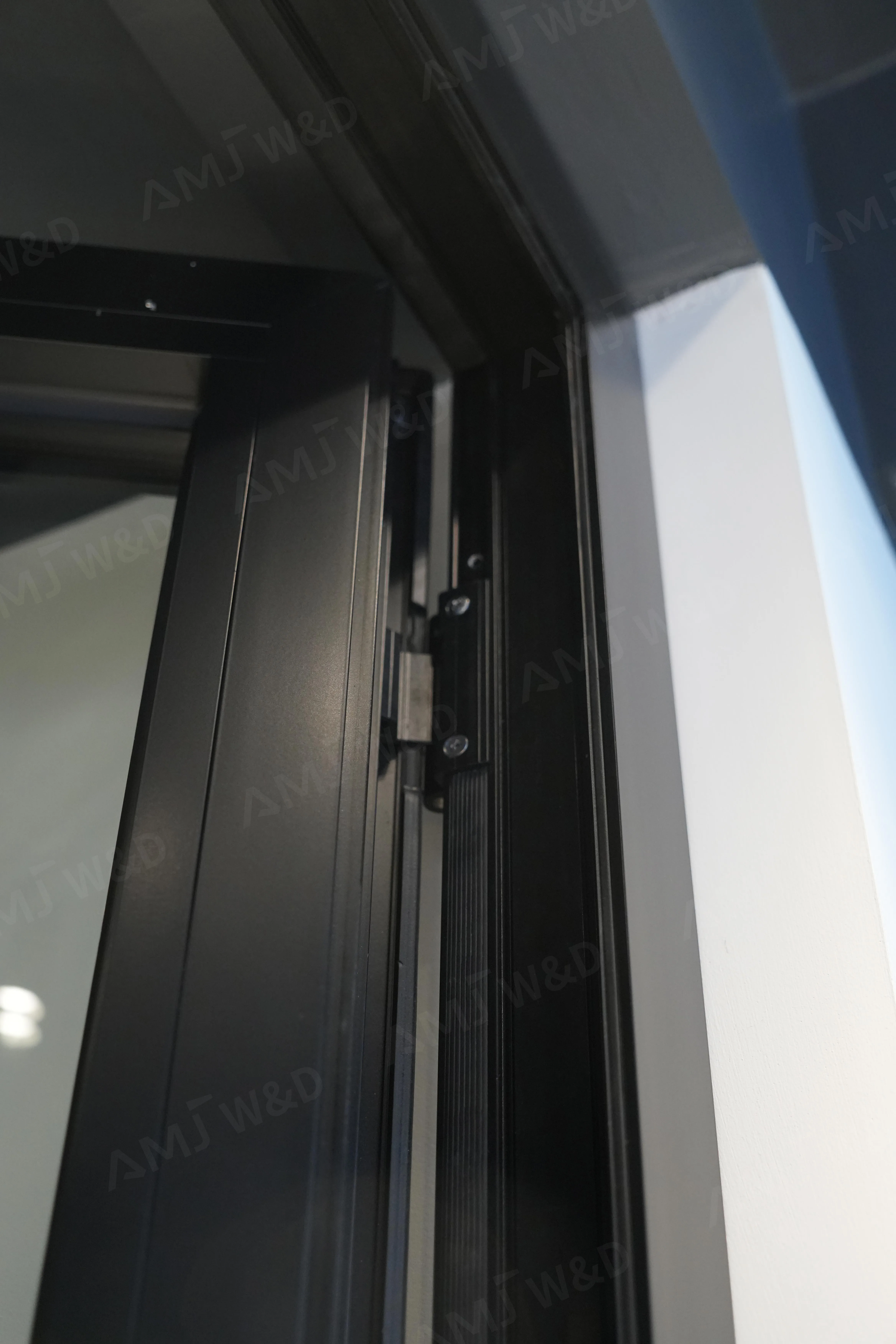

Door leaves taller than 2500mm require four hinges according to the latest specification.
≥2.2 W/m²·K Estimated U-Value
500Pa Estimated Water Resistance
0.5 m³/(m·h) Estimated Air Leakage
≤5000Pa Estimated Wind Pressure
35dB Estimated Sound Insulation

Performance figures are estimated references from the latest AMJ product specification. Final results depend on door size, glass, configuration, installation, and the applicable project test report.

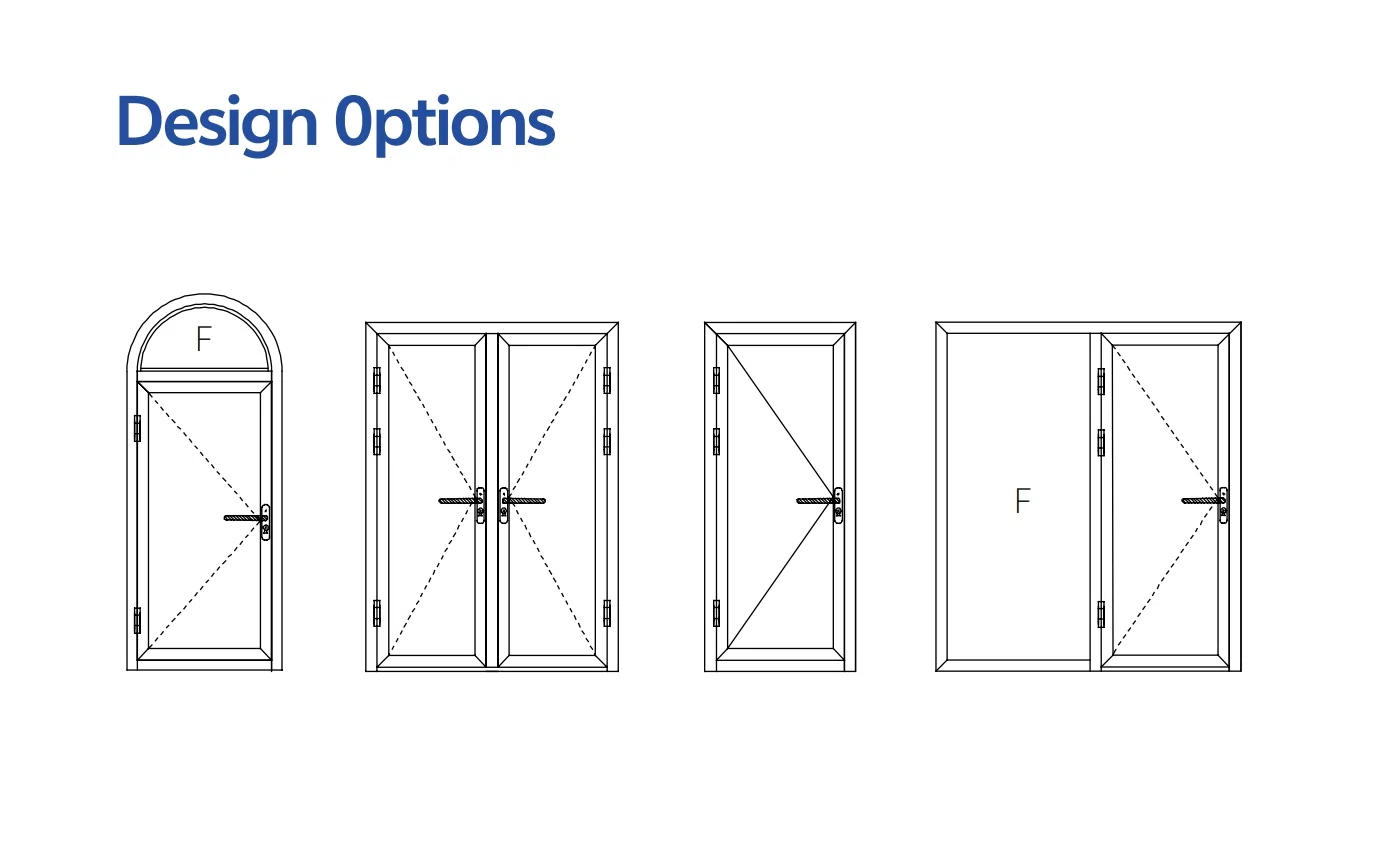

Available Aluminum Hinged Door Layouts

Final swing direction, fixed panels, threshold type, and structural details should be confirmed from the project drawings.

Single Hinged Door

One operable aluminum door leaf.

Double Hinged Door

Two operable leaves for wider entrances.

Door with Top Fixed

Operable door below a fixed transom.

Door with One Sidelight

Single door beside fixed glass.

Door with Two Sidelights

Centered door with fixed glass on both sides.

Our Strength

Checking and Alignment

1. Checking & Alignment

Cutting and Punching

2. Cutting & Punching

Milling Holes

3. Milling Holes

Assembly

4. Assembly

Glass Assembly

5. Glass Assembly

Packaging

6. Packaging

Delivery

7. Delivery

Installation

8. Installation

Drawing and Engineering Review

Drawing & Engineering Review

Sample Support

Sample Support

Quality Inspection

Quality Inspection

U.S. Showrooms

U.S. Showrooms

Local On-Site Support

48-Hour On-Site Support

Warranty Service

Warranty Service

NFRC Certificate

NFRC

CSA Certificate

CSA

ENERGY STAR Certificate

ENERGY STAR

ISO Certificate

ISO

Which Aluminum Hinged Door Fits Your Project?

Only the main customer-visible differences are shown below.

CURRENT

Standard Thermal Break Aluminum Hinged Door

Standard insulation system with single or double door configurations.

High-Insulation Aluminum Hinged Door

Wider thermal break and insulated glass capacity up to 47mm.

Wide-Frame Thermal Break Aluminum Hinged Door

Wide-frame system with flexible hinged door and fixed-panel layouts.

Screen-Ready Thermal Break Aluminum Hinged Door

Optional metal mesh screen and glass-and-screen entrance configurations.

Frequently Asked Questions

What are the main advantages of this aluminum hinged door?

It combines a 2.0mm aluminum profile, German G-U hardware, a 24mm thermal break, Low-E insulated glass, high or low thresholds, and flexible single or double door layouts.

Can it be ordered as a double hinged door?

Yes. The system supports single doors, double doors, top fixed panels, and left or right fixed-glass combinations.

What is the difference between the high and low threshold?

The high threshold is 72mm on the interior side and 44mm on the exterior side. The low threshold is 18mm inside and 12mm outside.

When are four hinges required?

The latest specification requires four hinges when the door leaf height exceeds 2500mm.

What information should I send for a quotation?

Send the project location, rough opening sizes, door layout, quantity, glass, finish, threshold type, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

Start Your Aluminum Hinged Door Project

Send your drawings, door schedule, rough opening sizes, or BOQ for glass, threshold, hardware, layout, and project pricing.

Request a Project Quote Chat on WhatsApp

01 Why work with AMJ for aluminum window and door projects?

AMJ is a professional aluminum window and door manufacturer with nearly 20 years of industry experience and a 430,000 sq ft production base. Our engineering, production, quality-control and project teams support builders, contractors, developers, dealers and importers from product selection through production and delivery.

02 What aluminum windows and doors can you customize?

We provide custom aluminum casement, tilt & turn, sliding, awning, hung and fixed windows, together with sliding, lift & slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized for residential and commercial projects.

03 What certifications do AMJ windows and doors have?

Selected AMJ aluminum window and door systems are available with NFRC and CSA certification support, ENERGY STAR options and Intertek testing experience. Certification depends on the specific product system, glass configuration, size and project requirements. Our team will confirm the applicable certified solution before quotation.

04 Can you review our drawings and prepare a project quote?

Yes. Our professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions, then help confirm suitable window and door systems, glass, hardware and configurations. Send your project files to info@amjbm.com for technical review and a project-specific quotation.

05 Can you meet project performance and local code requirements?

Product selection can be reviewed according to the project location and required U-value, SHGC, design pressure, glass safety and other performance requirements. Share the project location and specifications with our team so the appropriate frame and glass configuration can be checked before production.

06 What glass and thermal performance options are available?

AMJ offers thermal-break aluminum systems with options including Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations. The final setup is matched to the product system and project performance requirements.

07 How long are production and warranty coverage?

Production can be as fast as 25 days depending on quantity, configuration, glass, finish and project complexity. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects. Final terms are confirmed according to the order specification.

08 What happens if we need replacement parts or after-sales support?

AMJ supports replacement hardware and service parts for AMJ project orders. Commonly used service components are kept available so our team can respond quickly when replacement or supplementary items are required. Order records also help us confirm the correct specification before arranging support.

09 How are orders packed and delivered?

Products are inspected before packing and protected according to the product type and shipping method. AMJ can support factory, port and door-to-door delivery options. Shipping terms and freight costs are confirmed according to the destination, quantity and project requirements.

...
