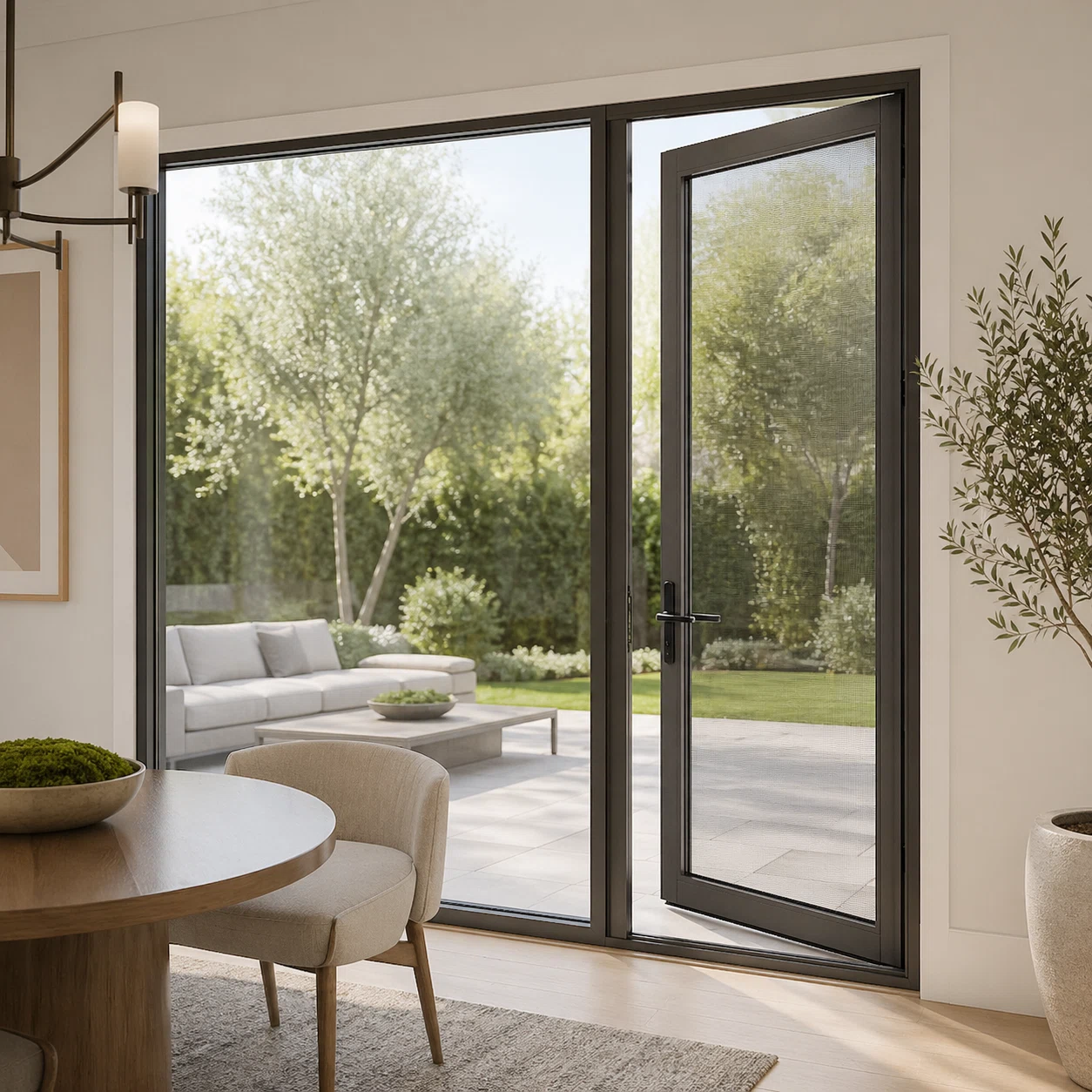

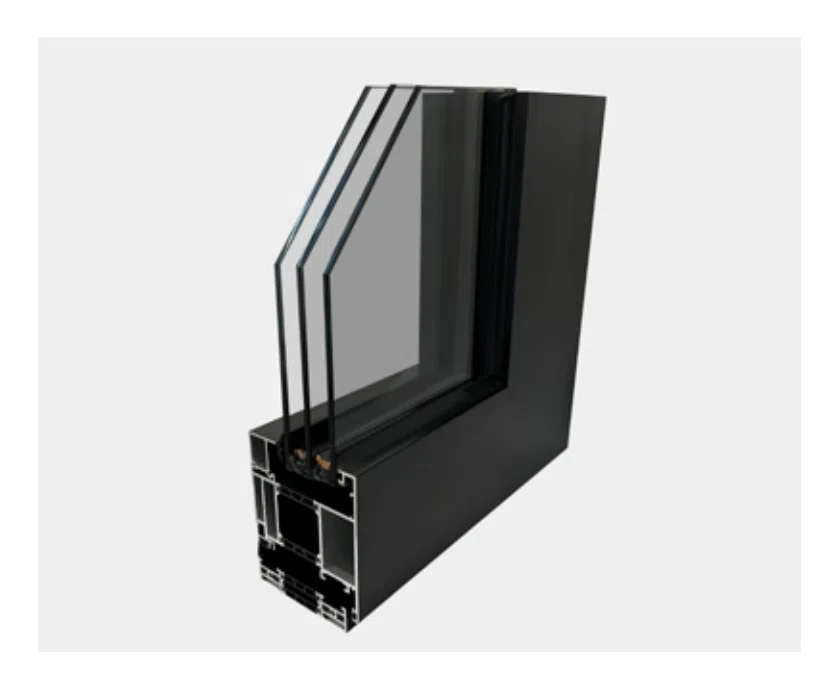

High-Insulation Aluminum Hinged Door
This high-insulation aluminum hinged door is made for entrances that need thicker insulated glass and a wider thermal break.

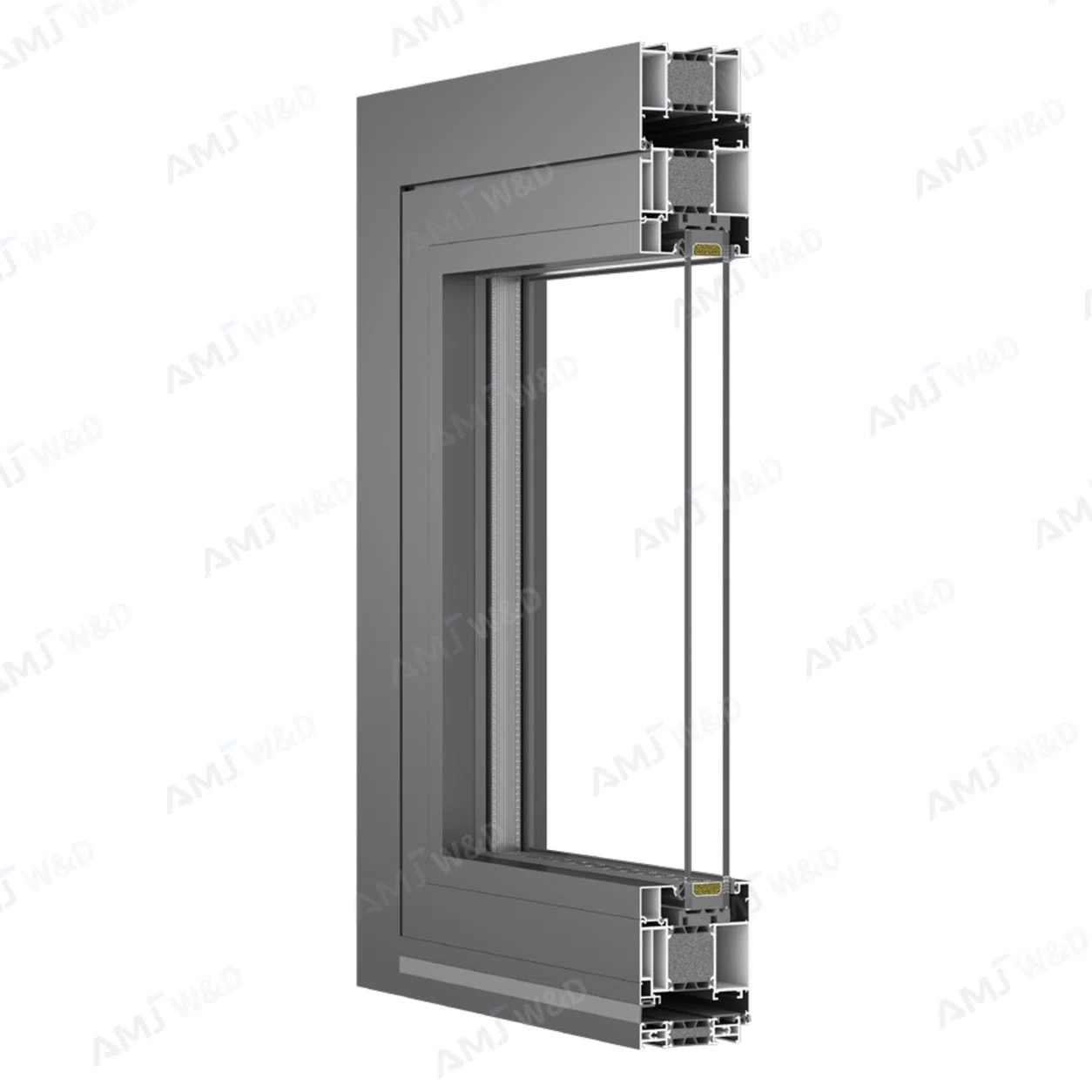

It keeps the familiar single-door, double-door, and fixed-panel layouts while increasing the system depth to 78.3mm and the maximum IGU capacity to 47mm.
Why Choose This High-Insulation Hinged Door?
Choose this model when the entrance needs more insulation or thicker glass than the standard hinged door system.
You Want Better Insulation
The 35.3mm thermal break is wider than the standard system and gives the frame more separation between inside and outside.
You Need Thicker Glass
The door can take insulated glass up to 47mm, including Low-E double or triple glazing.
You Need a Taller Entry Door
Each door leaf can be 1800–2800mm high and weigh up to 100kg.
You Want Familiar Layouts
Single doors, double doors, fixed sidelights, and high or low thresholds are available.
Project Options, Thresholds, and Performance
The key options are listed below without repeating the quick specifications shown at the top.
Project and System Options
Threshold Options
Performance figures are estimated references from the latest AMJ product specification. Final results depend on door size, glass, configuration, installation, and the applicable project test report.

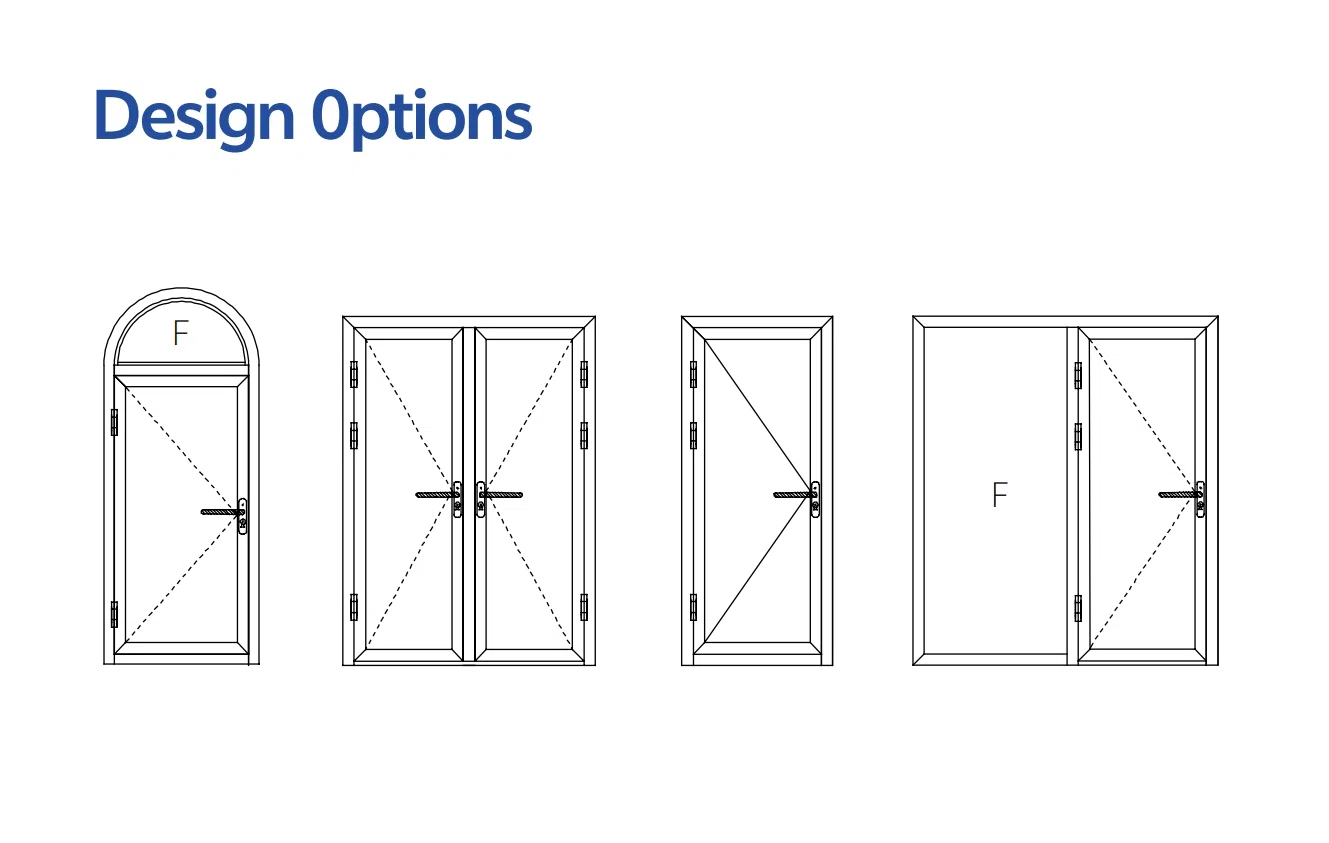

Available Aluminum Hinged Door Layouts
Final swing direction, fixed panels, threshold type, and structural details should be confirmed from the project drawings.
Single Hinged Door
One operable aluminum door leaf.

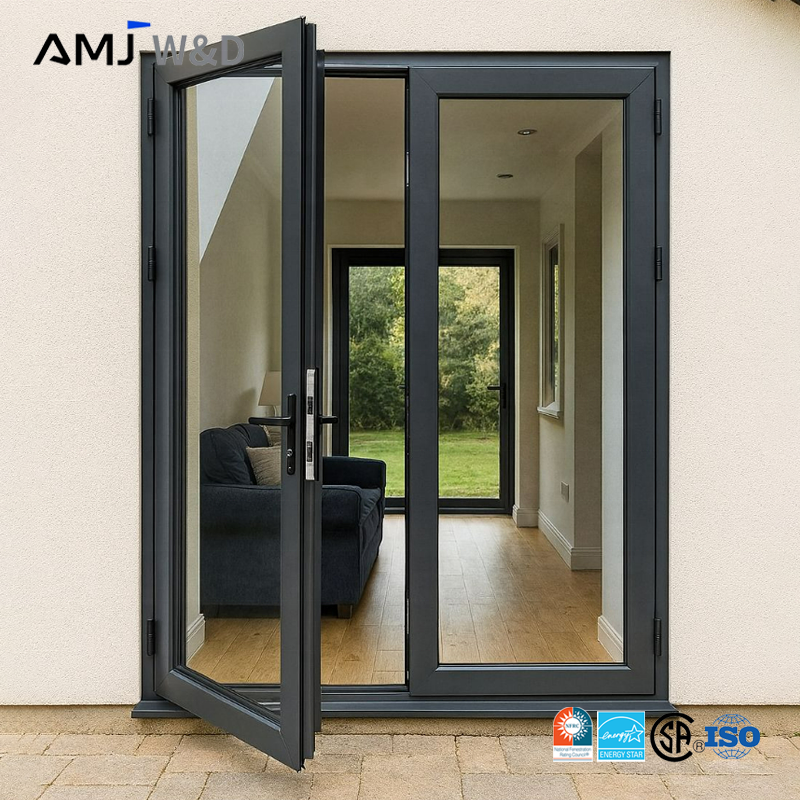

Double Hinged Door
Two operable leaves for a wider entrance.
Door with Top Fixed
A hinged door below a fixed transom.
Door with One Sidelight
One door beside fixed glass.
Door with Two Sidelights
A centered door with fixed glass on both sides.
Our Strength

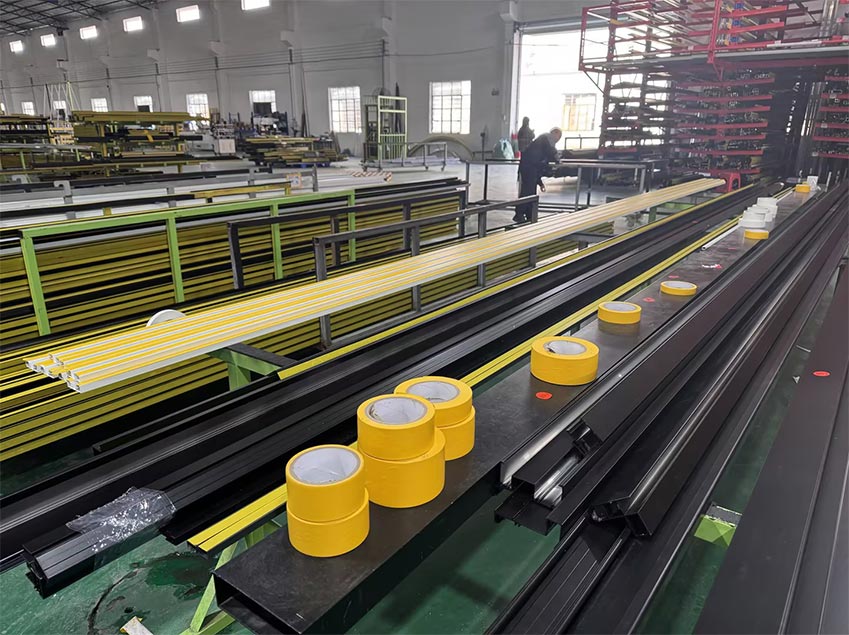

1. Checking & Alignment

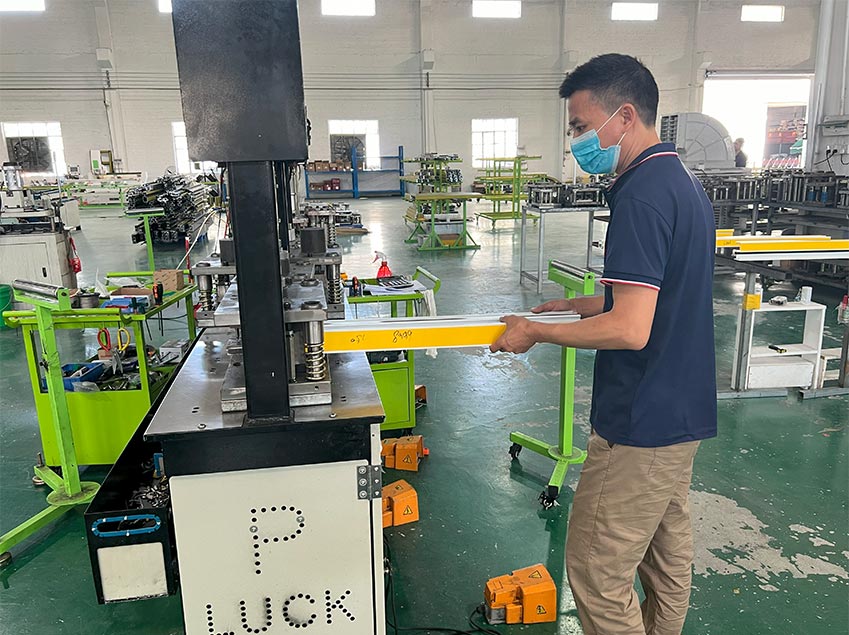

2. Cutting & Punching

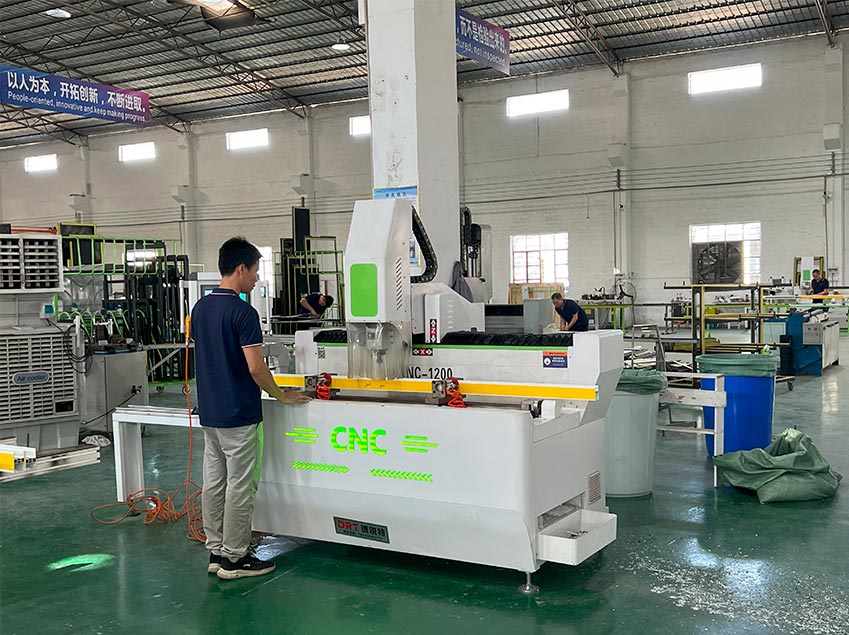

3. Milling Holes

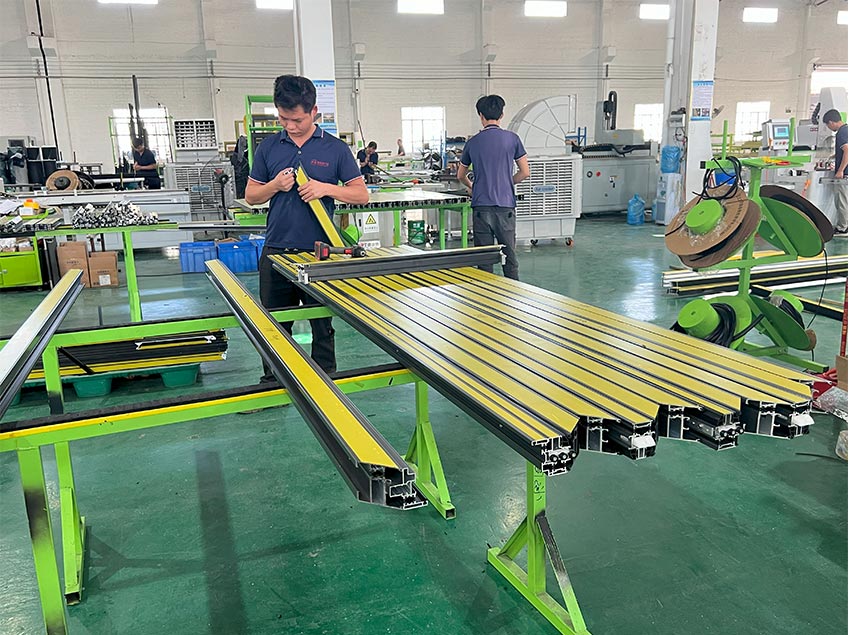

4. Assembly

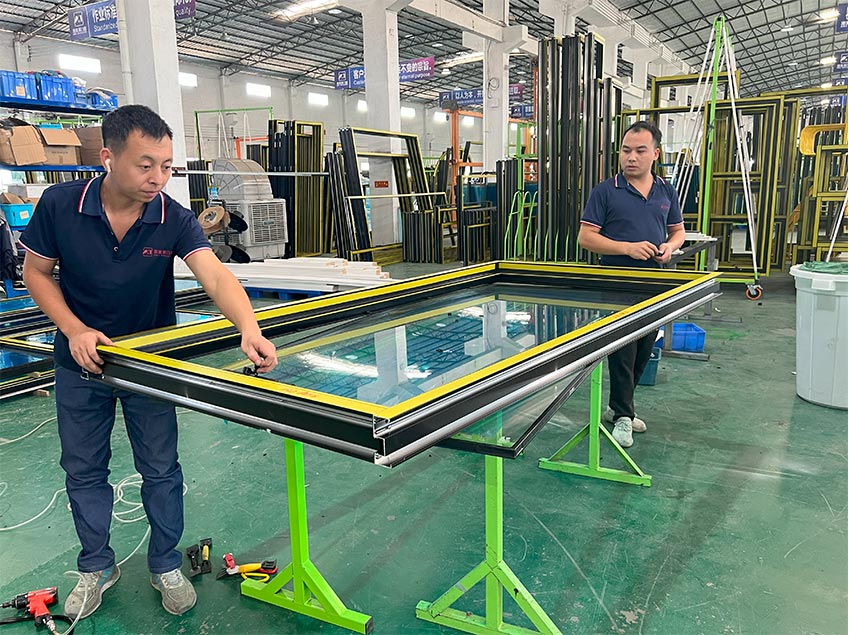

5. Glass Assembly

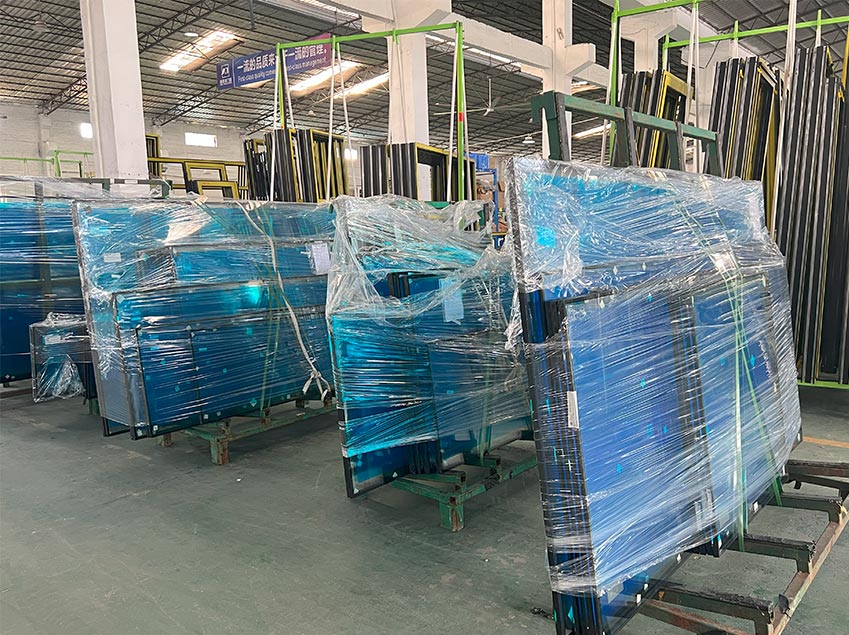

6. Packaging
7. Delivery

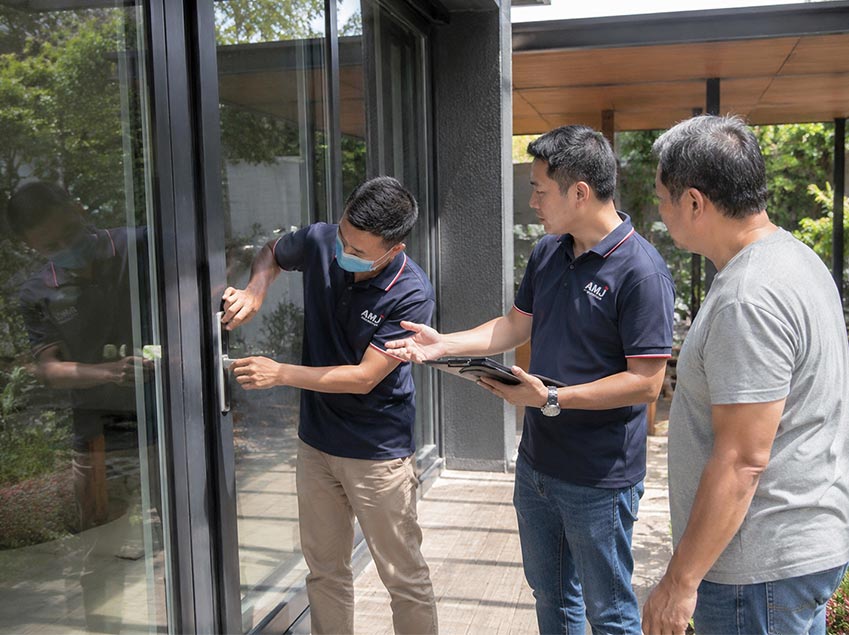

8. Installation
Drawing & Engineering Review

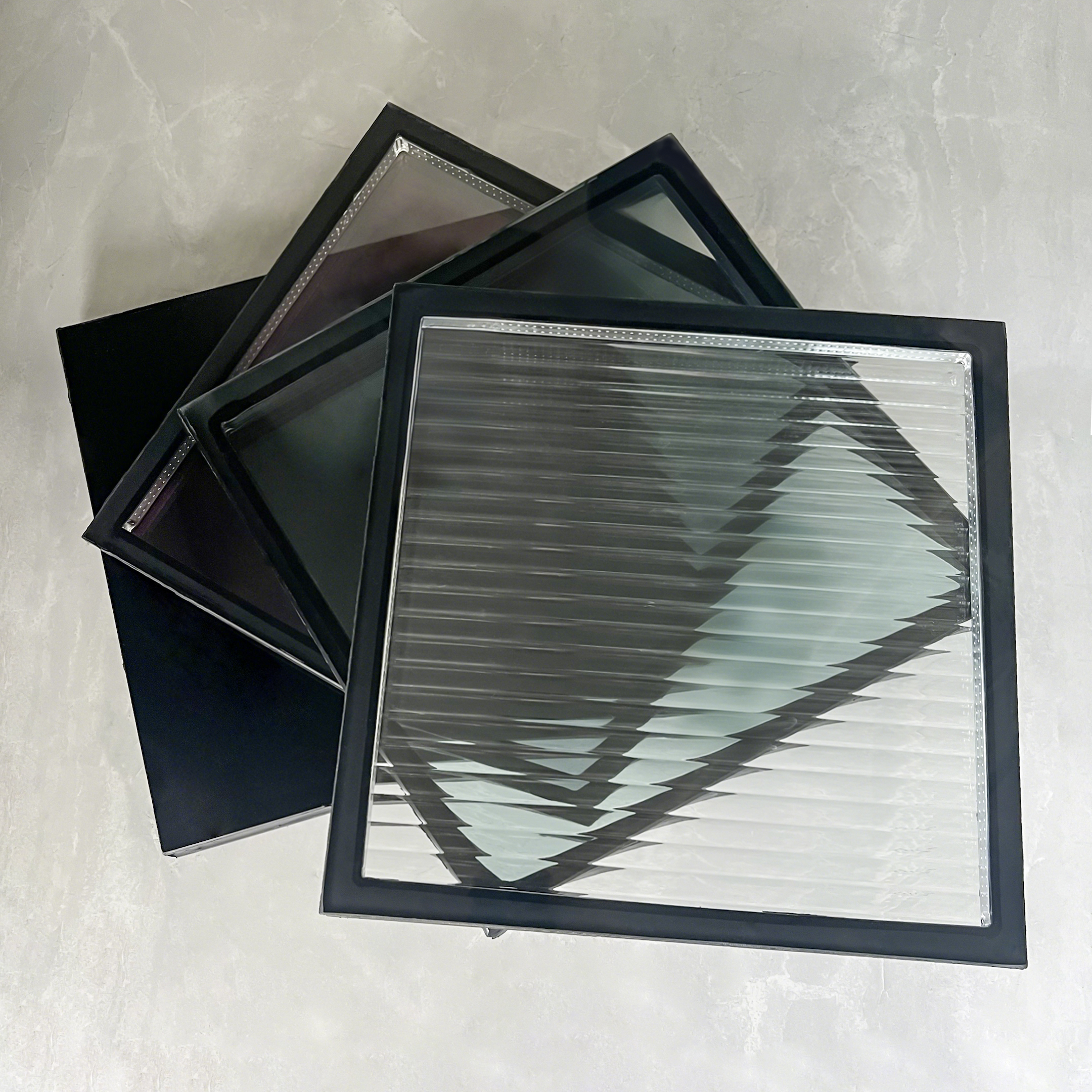

Sample Support

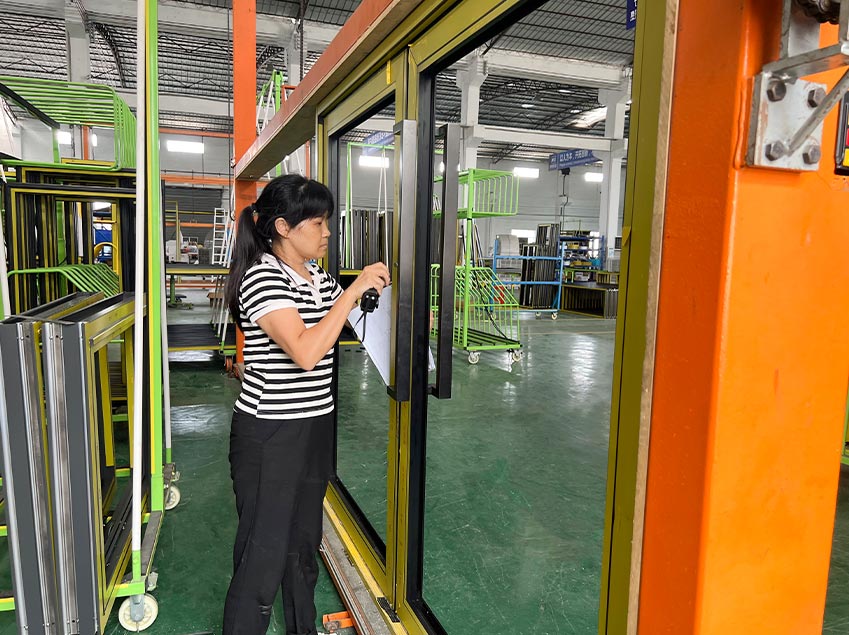

Quality Inspection

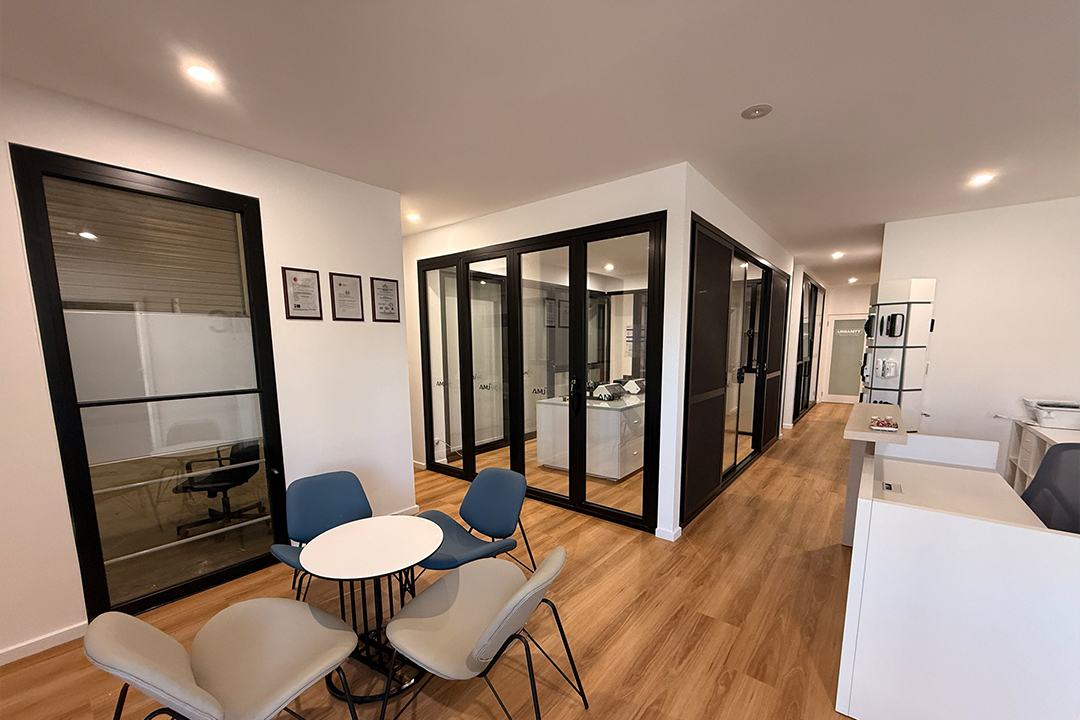

U.S. Showrooms
48-Hour On-Site Support

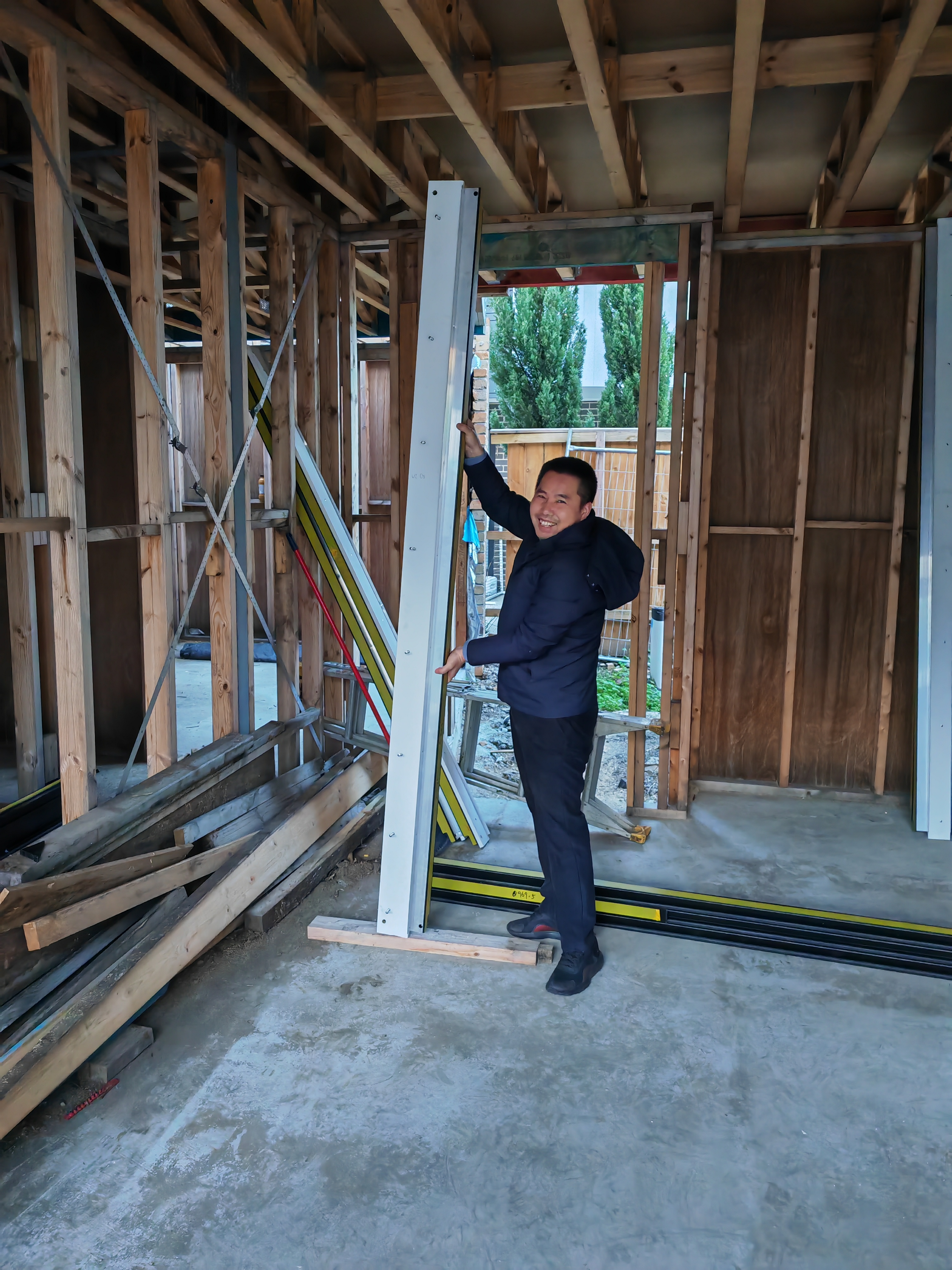

Warranty Service

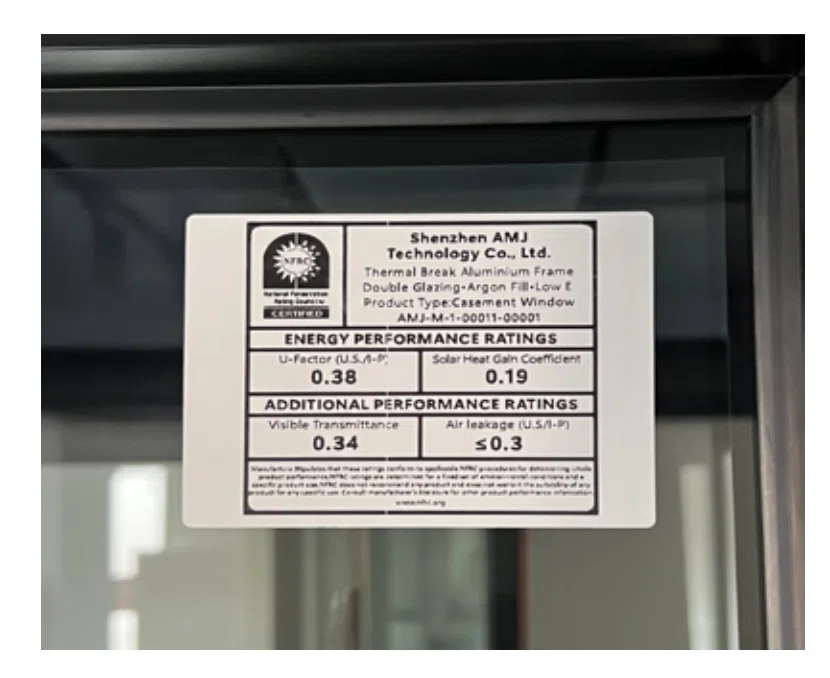

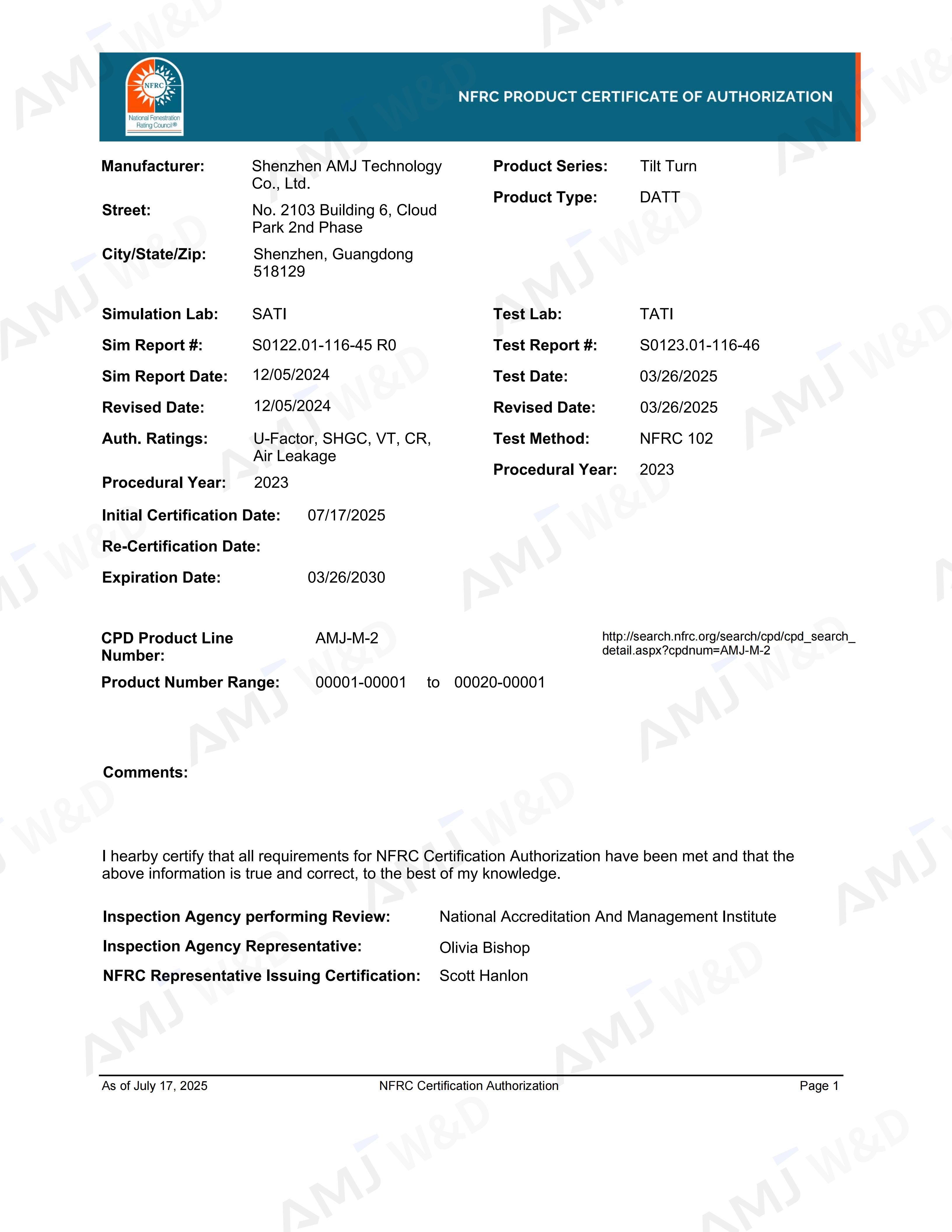

NFRC

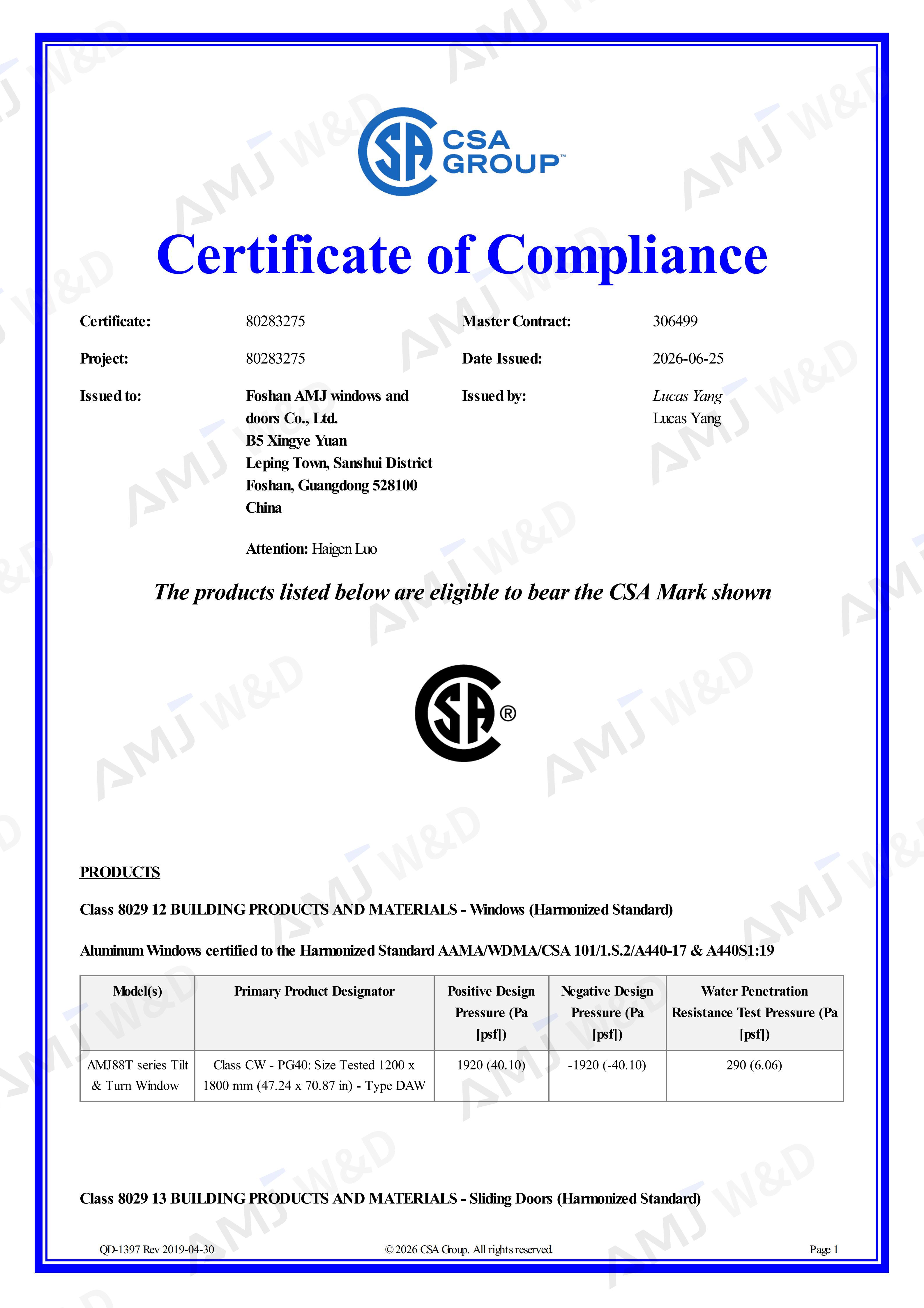

CSA

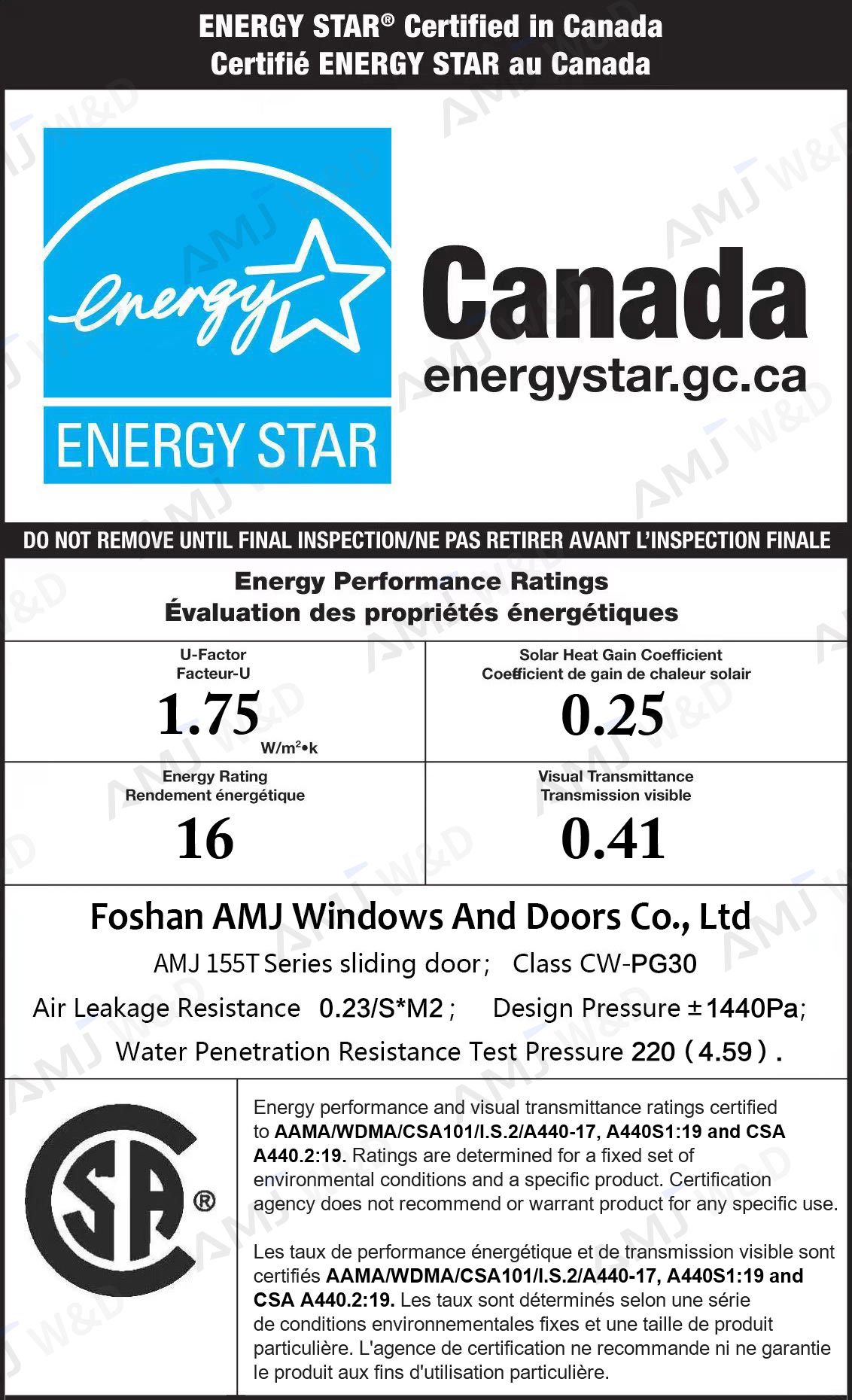

ENERGY STAR

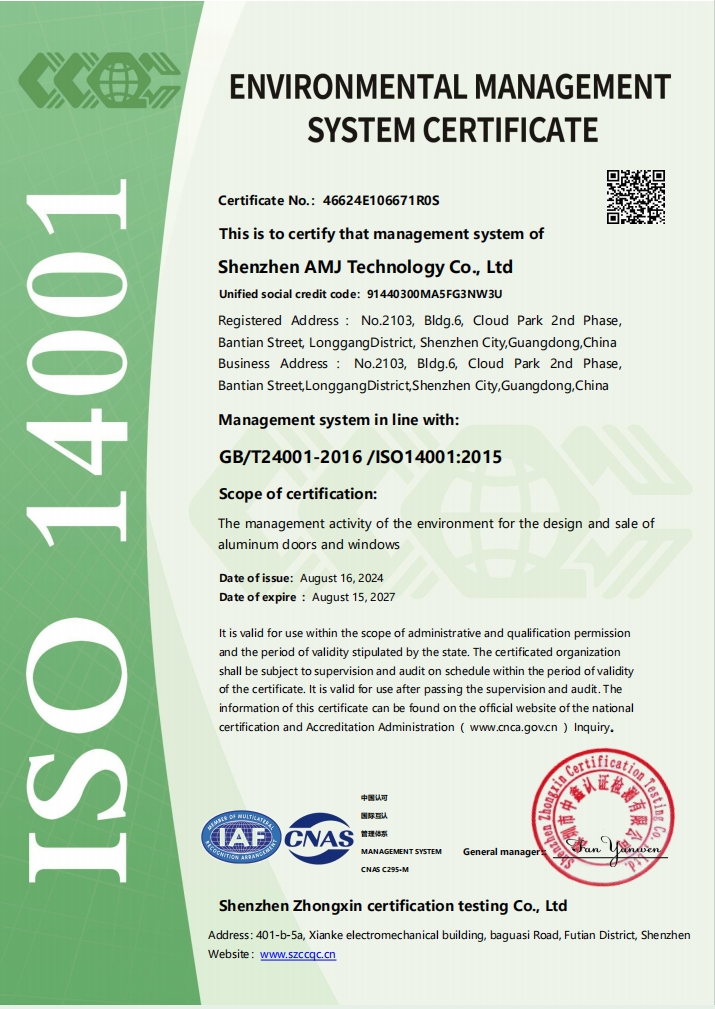

ISO
Which Aluminum Hinged Door Fits Your Project?
Only the main customer-visible differences are shown below.
Standard Thermal Break Aluminum Hinged Door
Standard 67mm system with 24mm thermal break and up to 36mm IGU.
High-Insulation Aluminum Hinged Door
78.3mm system with 35.3mm thermal break and up to 47mm IGU.
Wide-Frame Thermal Break Aluminum Hinged Door
102mm wide-frame system with high or low threshold options.

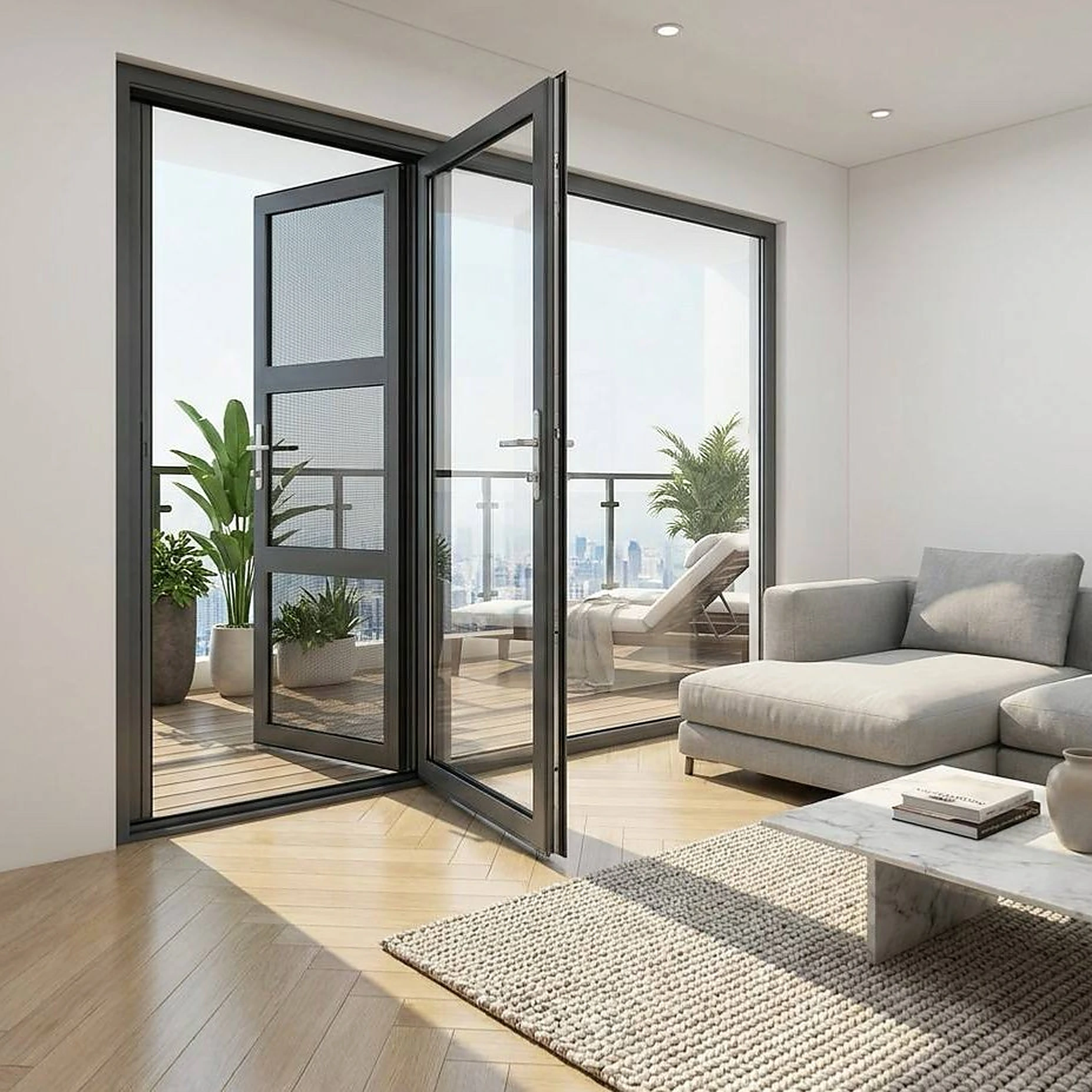

Screen-Ready Thermal Break Aluminum Hinged Door
102mm system with stainless steel or aluminum mesh screen configurations.
Frequently Asked Questions
Can this hinged door use triple glazing?
Yes. The listed triple-glazing option is 5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm tempered clear glass.
What information should I send for a quotation?
Send the project location, rough opening sizes, door layout, quantity, glass, finish, threshold or screen requirements, installation detail, and delivery ZIP code to info@amjbm.com.
What is the minimum order quantity?
We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.
How long do production and shipping take?
Standard production can be as fast as 25 days after drawings, sizes, glass, finish, and hardware are confirmed. Larger or more complex orders may take about 30–55 days. Transit time depends on the destination and carrier schedule and is confirmed before shipment.
What warranty is included?
A standard 7-year warranty is available for the ordered door system, subject to the final order terms and normal use. Longer warranty options may be reviewed for qualifying projects.
Start Your High-Insulation Hinged Door Project
Send your drawings, door schedule, rough opening sizes, or BOQ for glass, threshold, hardware, layout, and project pricing.
