Triple-Glazed High-Performance Tilt & Turn Window

Q: What aluminum windows and doors can you customize?

AMJ provides custom aluminum casement, tilt and turn, sliding, awning, hung and fixed windows, together with sliding, lift and slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized.

Q: Can you review our drawings and prepare a project quote?

Yes. AMJ's professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions. Project files can be sent to info@amjbm.com for technical review and a project-specific quotation.

Q: Can you meet project performance and local code requirements?

Product selection can be reviewed according to project location and required U-value, SHGC, design pressure, glass safety and other performance requirements.

Q: What glass and thermal performance options are available?

AMJ offers thermal-break aluminum systems with Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations.

Q: How long are production and warranty coverage?

Production can be as fast as 25 days depending on project requirements. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects.

Product Item：AMJ 88T Thermal Break Tilt & Turn Window

✓ Best for premium homes, apartments, colder climates, and projects requiring stronger thermal and acoustic performance.

✓ Tilt ventilation and full inward opening provide flexible daily use and easier cleaning.

✓ 88.4mm system depth with a 44mm thermal break and 1.8mm aluminum profiles.

✓ Sash sizes from 500–1000mm wide × 500–2800mm high, up to 100kg.

✓ Standard Low-E triple glazing with insulated glass capacity up to 62mm and German G-U hardware.

✓ Fixed screens, fixed combinations, corner layouts, colors, glass, and installation options are available.

CSA certification support is available · NFRC requirements can be reviewed by project.

Production as fast as 25 days · Warranty coverage up to 15 years

Product Detail
FAQs

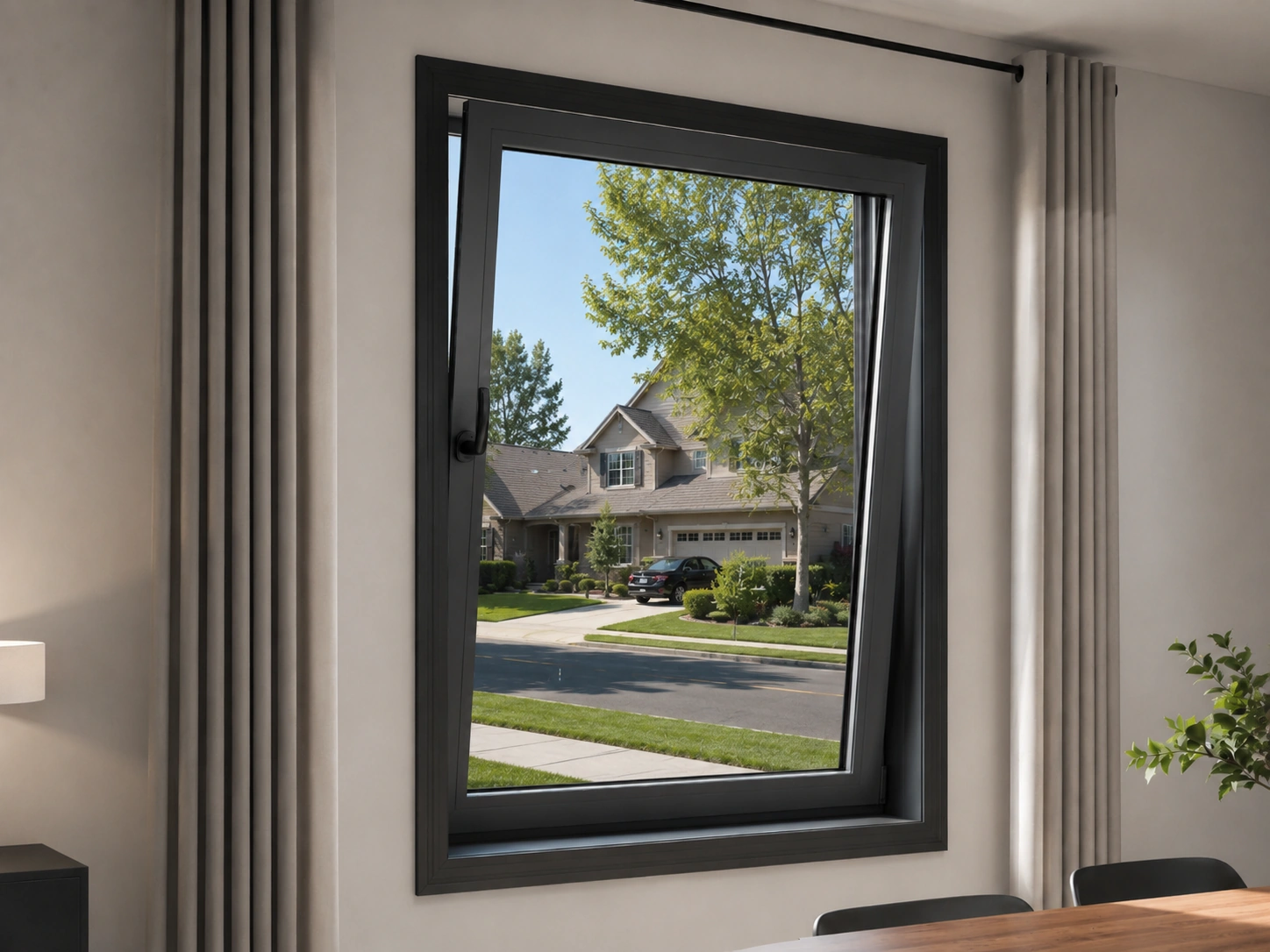

Tilt for Ventilation

The sash tilts inward at the top for controlled airflow.

Turn for Full Access

The sash opens inward for cleaning and a wider opening.

Tilt and Turn Windows USA – Triple-Glazed High-Performance System

For projects sourcing tilt and turn windows USA-wide, this triple-glazed aluminum system combines top inward ventilation with full inward opening for cleaning and access. The 88.4mm frame uses a 1.8mm profile, 44mm thermal break, standard triple glazing, and insulated glass capacity up to 62mm.

The sash range reaches 1000mm wide × 2800mm high with a maximum capacity of 100kg, making the system suitable for premium homes, apartments, and large tilt and turn windows that need engineering review and higher weather-performance references.

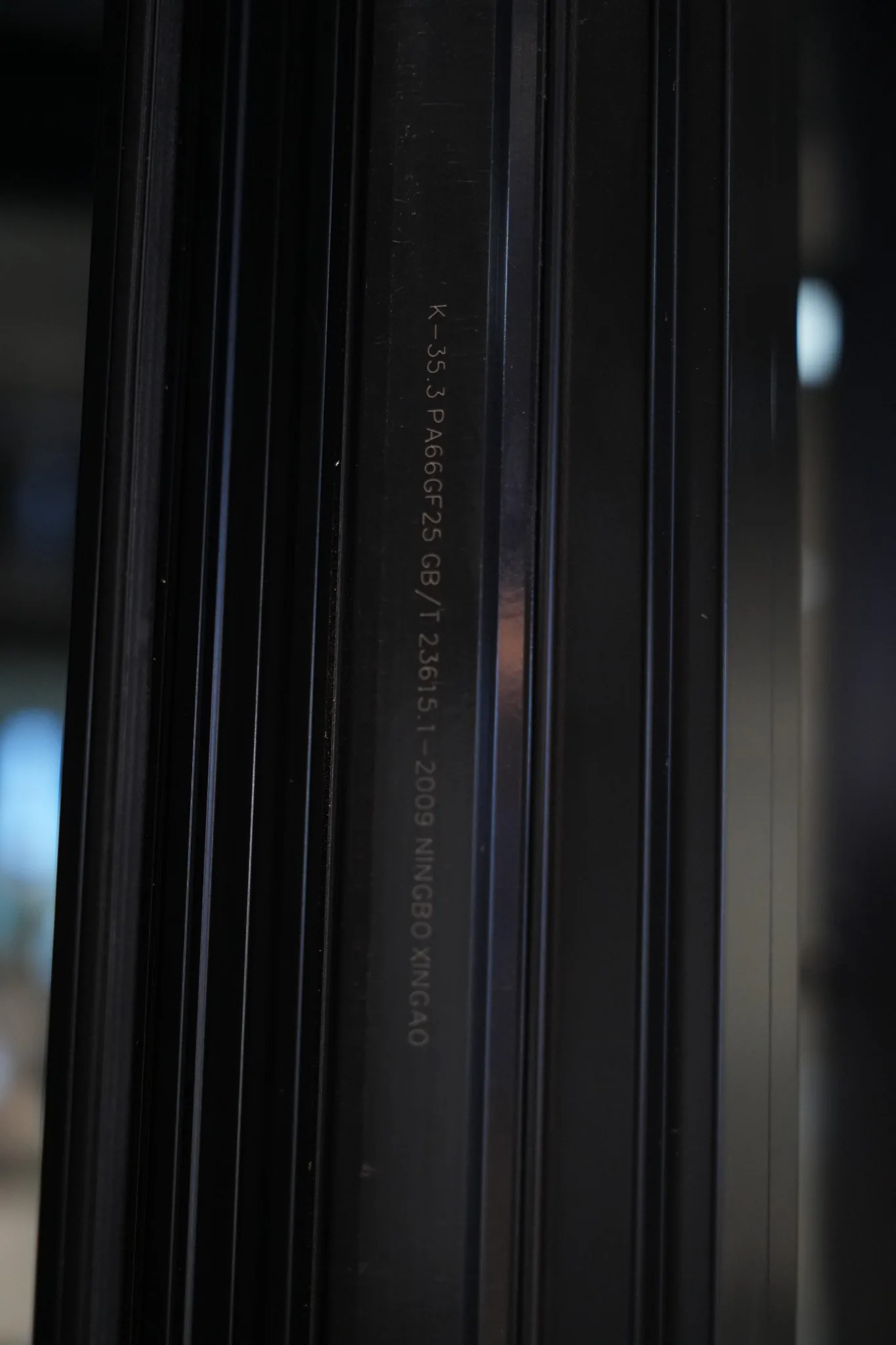

1.8mm Aluminum Profile

88.4mm System Depth

44mm Thermal Break

62mm Maximum IGU

≥0.19 Estimated U-Factor

Why Choose This Triple-Glazed Tilt and Turn Window for USA Projects?

This system keeps the same dual-opening function while adding the widest thermal break, largest glass capacity, and highest weather references of the three tilt-and-turn systems.

Triple-Glazed System

Standard Triple Glazing with a 62mm IGU Capacity

The standard glass uses two argon cavities, and the 62mm maximum IGU capacity supports more demanding glazing specifications.

Dual Opening

Tilt for Ventilation, Turn for Full Access

The sash tilts inward at the top for controlled airflow and turns inward from the side for cleaning, access, and wider ventilation.

44mm Thermal Break

The widest thermal barrier among the three tilt and turn systems.

Higher Weather References

The latest specification lists 290Pa water resistance and wind resistance up to 2880Pa.

38dB Sound Reference

The strongest acoustic reference of the three tilt and turn systems.

Triple-Glazed Tilt Turn Windows USA Project Configuration

Send rough opening sizes, a window schedule, BOQ, glass requirements, screen choice, installation detail, and project location so sizing, glazing, and installation can be reviewed before production.

Product Configuration

Opening method90° inward tilt-and-turn operation.

Profile thickness1.8mm.

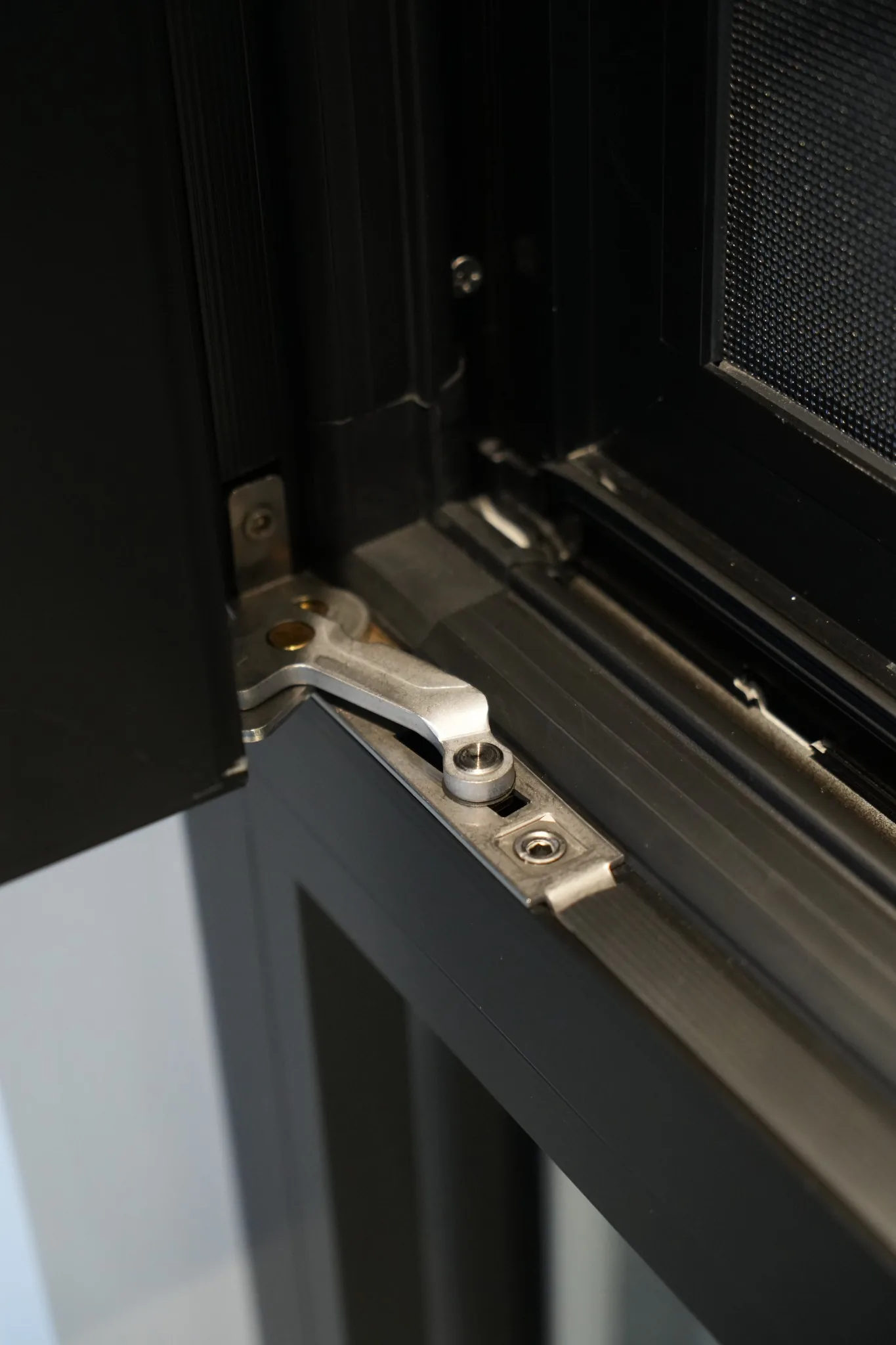

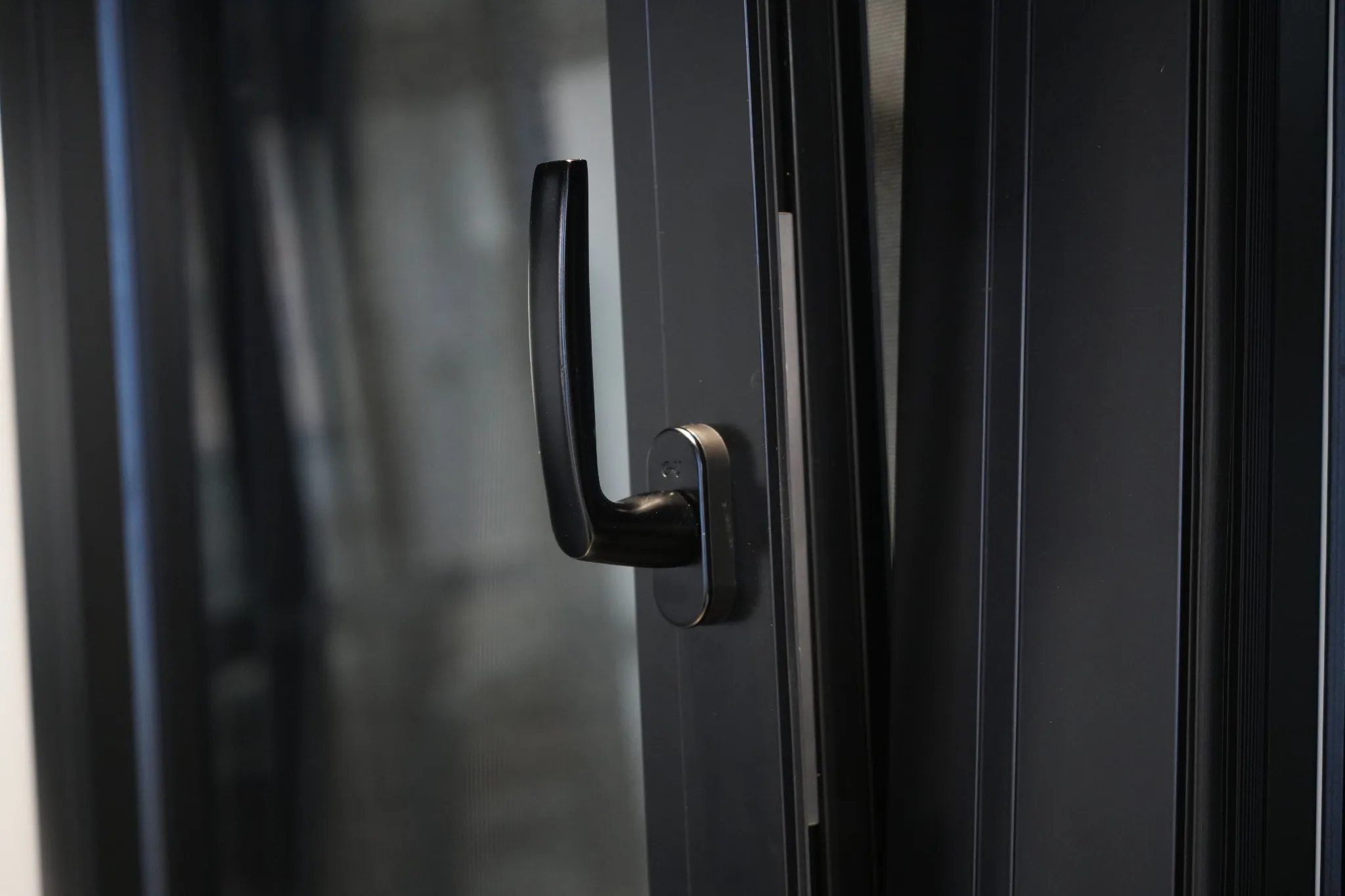

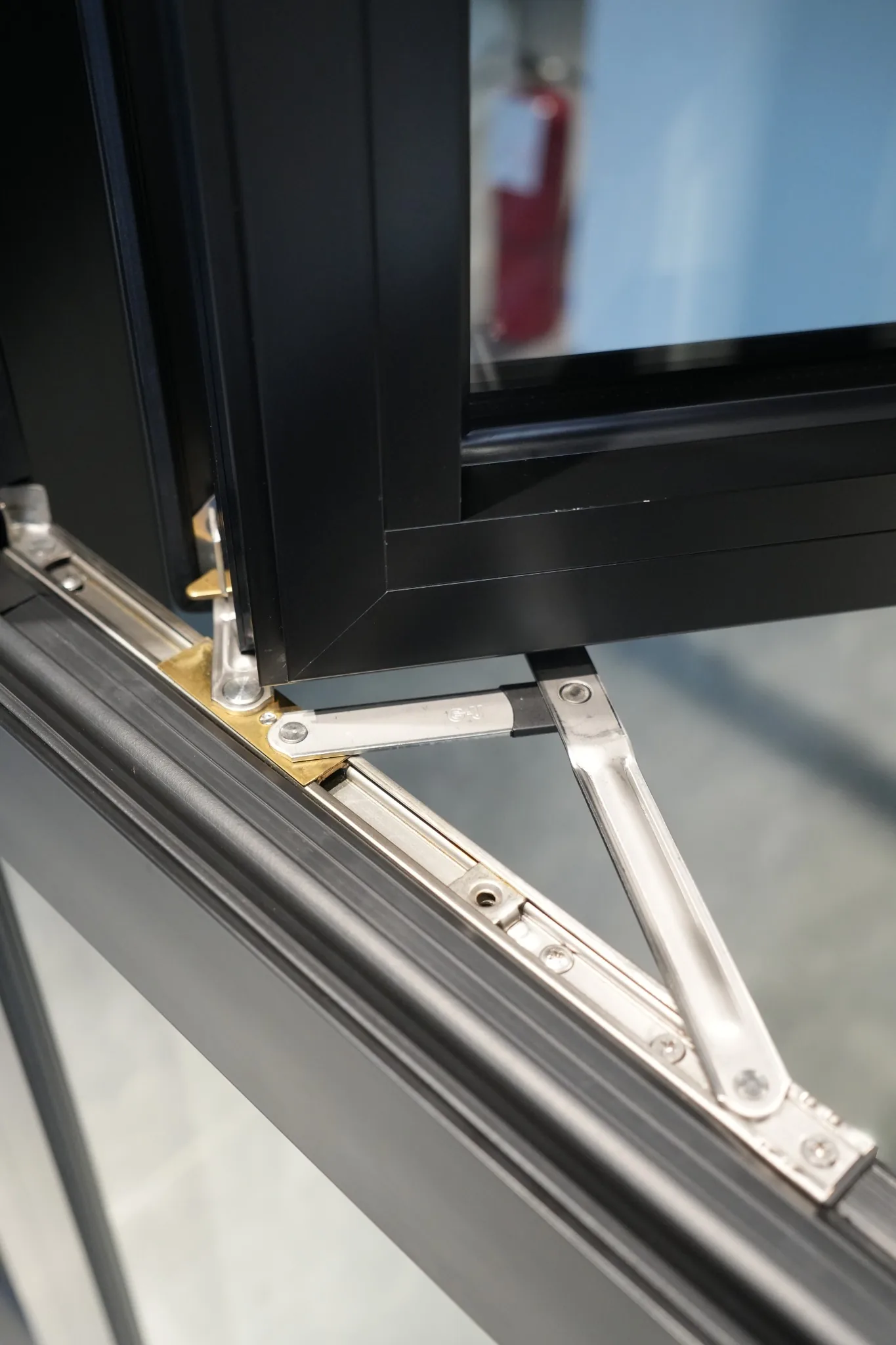

Standard hardwareGerman G-U in black or white.

Optional hardwareHK Kinlong in black or white.

Sash size500–1000mm wide × 500–2800mm high.

Maximum sash capacity100kg.

Standard triple glass5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm tempered clear glass.

Maximum IGU62mm.

Fixed screenStainless steel mesh, fiberglass mesh, or aluminum mesh.

InstallationNail fin or mounting tabs.

Available layoutsSingle opening, one opening with one fixed panel, pure fixed window, and 90° or 135° corner combinations.

System dimensions88.4mm system depth; 57mm frame; 70.2mm sash; 78mm mullion; 44mm thermal break.

Estimated Performance References

≥0.19Estimated U-Factor
BTU/(h·ft²·°F)

290PaEstimated Water Resistance

0.13 L/s·m²Estimated Air Leakage

≤2880PaEstimated Wind Pressure Resistance

38dBEstimated Sound Insulation

1.8mmAluminum Profile

All performance figures are estimated values from the latest AMJ product specification V2 dated July 23, 2026. Final values depend on window size, glass, configuration, installation, and the applicable project test report.

Single Tilt & Turn

One operable inward-opening sash.

One Opening + One Fixed

Operable sash beside fixed glass.

Pure Fixed Window

Matching fixed unit for combination layouts.

90° / 135° Corner

Corner combinations subject to drawing review.

Our Strength

Production Process Project Services Certificates

1. Checking & Alignment

2. Cutting & Punching

3. Milling Holes

4. Assembly

5. Glass Assembly

6. Packaging

7. Delivery

8. Installation

Drawing & Engineering Review

Sample Support

Quality Inspection

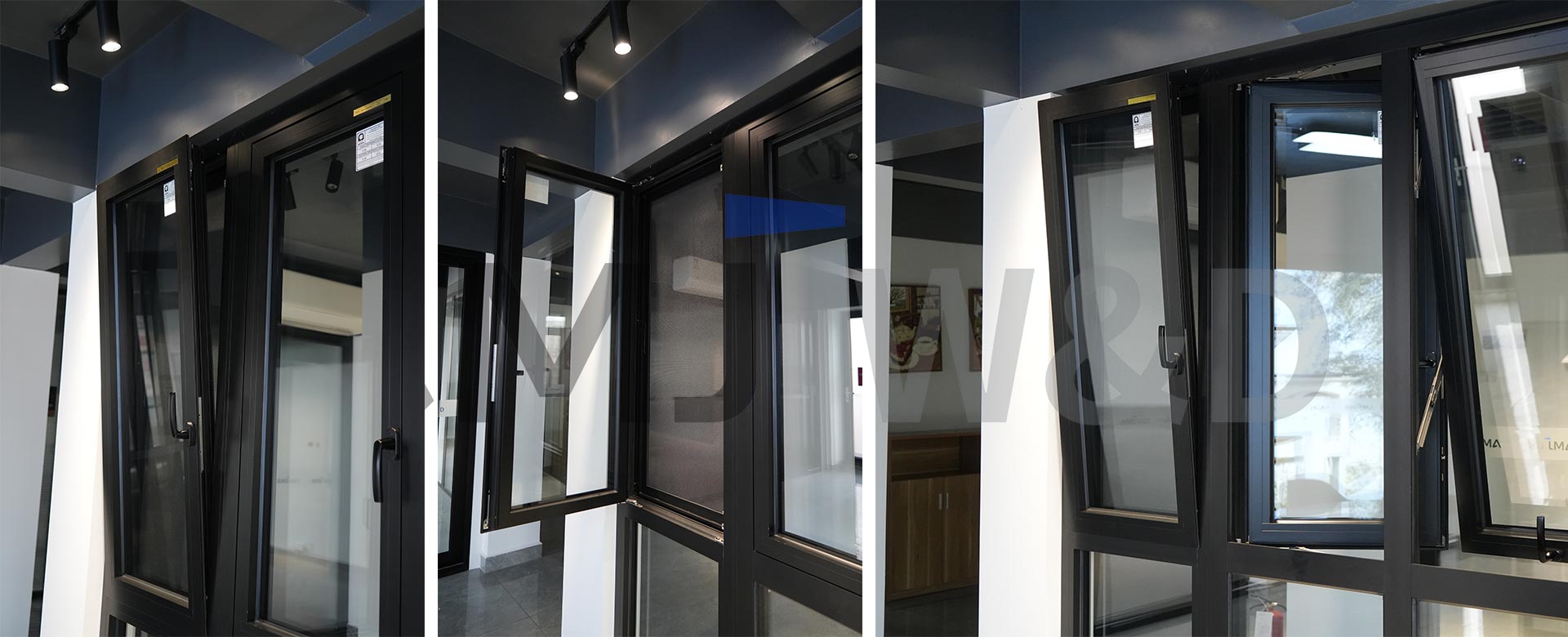

U.S. Showrooms

48-Hour On-Site Support

Warranty Service

NFRC

CSA

ENERGY STAR

ISO

Key Differences Between the Three Tilt & Turn Window Systems

Only specifications that differ are included below. Shared hardware, sash size, sash capacity, screen, installation, and layout options are not repeated.

Comparison	Standard Thermal Break Tilt & Turn Window	High-Insulation Tilt & Turn Window	Premium Triple-Glazed Tilt & Turn Window CURRENT
System Depth	67mm	78.3mm	88.4mm
Frame	62mm	62mm	57mm
Sash	70.5mm	70.5mm	70.2mm
Mullion	84mm	84mm	78mm
Thermal Break	24mm	35.3mm	44mm
Standard Glass	5 Low-E + 15 Ar + 5	5 Low-E + 20 Ar + 5	5 Low-E + 12 Ar + 5 + 12 Ar + 5
Maximum IGU	39mm	47mm	62mm
Estimated U-Factor	≥0.21	≥0.21	≥0.19
Estimated Water Resistance	220Pa	220Pa	290Pa
Estimated Air Leakage	0.05 L/s·m²	0.05 L/s·m²	0.13 L/s·m²
Estimated Wind Pressure	≤2160Pa	≤2160Pa	≤2880Pa
Estimated Sound Insulation	37dB	37dB	38dB

Frequently Asked Questions

When should USA projects choose this triple-glazed tilt and turn window?

Choose it when the project needs standard triple glazing, a 44mm thermal break, insulated glass capacity up to 62mm, or higher water, wind, and sound references than the 67T and 78T systems.

How is it different from the 67T and 78T systems?

It has the deepest 88.4mm system, widest 44mm thermal break, standard triple glazing, 62mm maximum IGU, and higher water, wind, and sound references.

Is triple glazing standard?

Yes. The listed standard glass is 5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm tempered clear glass.

What affects tilt and turn windows USA price for a project order?

Project pricing depends on window size, quantity, triple-glass configuration, color, hardware, screen, installation detail, and delivery location. Send the window schedule or rough opening sizes, BOQ, and project ZIP code to info@amjbm.com for a quotation.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

What are the typical production, shipping, and warranty terms?

Standard production can start from approximately 25 days after drawing and material approval. Larger customized projects commonly require 30–55 days. Warranty coverage up to 15 years, with longer terms available for selected projects

Start Your Tilt and Turn Windows USA Project

Send your drawings, window schedule, rough opening sizes, or BOQ for sash sizing, glass selection, screen options, and project pricing.

Request a Project Quote Chat on WhatsApp

01 Why work with AMJ for aluminum window and door projects?

AMJ is a professional aluminum window and door manufacturer with nearly 20 years of industry experience and a 430,000 sq ft production base. Our engineering, production, quality-control and project teams support builders, contractors, developers, dealers and importers from product selection through production and delivery.

02 What aluminum windows and doors can you customize?

We provide custom aluminum casement, tilt & turn, sliding, awning, hung and fixed windows, together with sliding, lift & slide, bifold and hinged doors. Sizes, glass, colors, hardware, screens and opening configurations can be customized for residential and commercial projects.

03 What certifications do AMJ windows and doors have?

Selected AMJ aluminum window and door systems are available with NFRC and CSA certification support, ENERGY STAR options and Intertek testing experience. Certification depends on the specific product system, glass configuration, size and project requirements. Our team will confirm the applicable certified solution before quotation.

04 Can you review our drawings and prepare a project quote?

Yes. Our professional technical team can review architectural drawings, BOQ, window schedules and opening dimensions, then help confirm suitable window and door systems, glass, hardware and configurations. Send your project files to info@amjbm.com for technical review and a project-specific quotation.

05 Can you meet project performance and local code requirements?

Product selection can be reviewed according to the project location and required U-value, SHGC, design pressure, glass safety and other performance requirements. Share the project location and specifications with our team so the appropriate frame and glass configuration can be checked before production.

06 What glass and thermal performance options are available?

AMJ offers thermal-break aluminum systems with options including Low-E, tempered, laminated, insulated, tinted, frosted and argon-filled glass, as well as selected double- and triple-glazing configurations. The final setup is matched to the product system and project performance requirements.

07 How long are production and warranty coverage?

Production can be as fast as 25 days depending on quantity, configuration, glass, finish and project complexity. Warranty coverage is available for up to 15 years, with longer terms available for selected systems and projects. Final terms are confirmed according to the order specification.

08 What happens if we need replacement parts or after-sales support?

AMJ supports replacement hardware and service parts for AMJ project orders. Commonly used service components are kept available so our team can respond quickly when replacement or supplementary items are required. Order records also help us confirm the correct specification before arranging support.

09 How are orders packed and delivered?

Products are inspected before packing and protected according to the product type and shipping method. AMJ can support factory, port and door-to-door delivery options. Shipping terms and freight costs are confirmed according to the destination, quantity and project requirements.

...
