High-Insulation Thermal Break Tilt and Turn Window

High-Insulation Aluminum Tilt & Turn Window

This high-insulation aluminum tilt and turn window combines secure top ventilation with full inward opening for cleaning, access, and wider airflow.

A 1.8mm profile, 78.3mm system depth, 35.3mm thermal break, German G-U hardware, and insulated glass up to 47mm make it suitable for cold-climate homes, apartments, townhouses, and higher-performance residential projects.

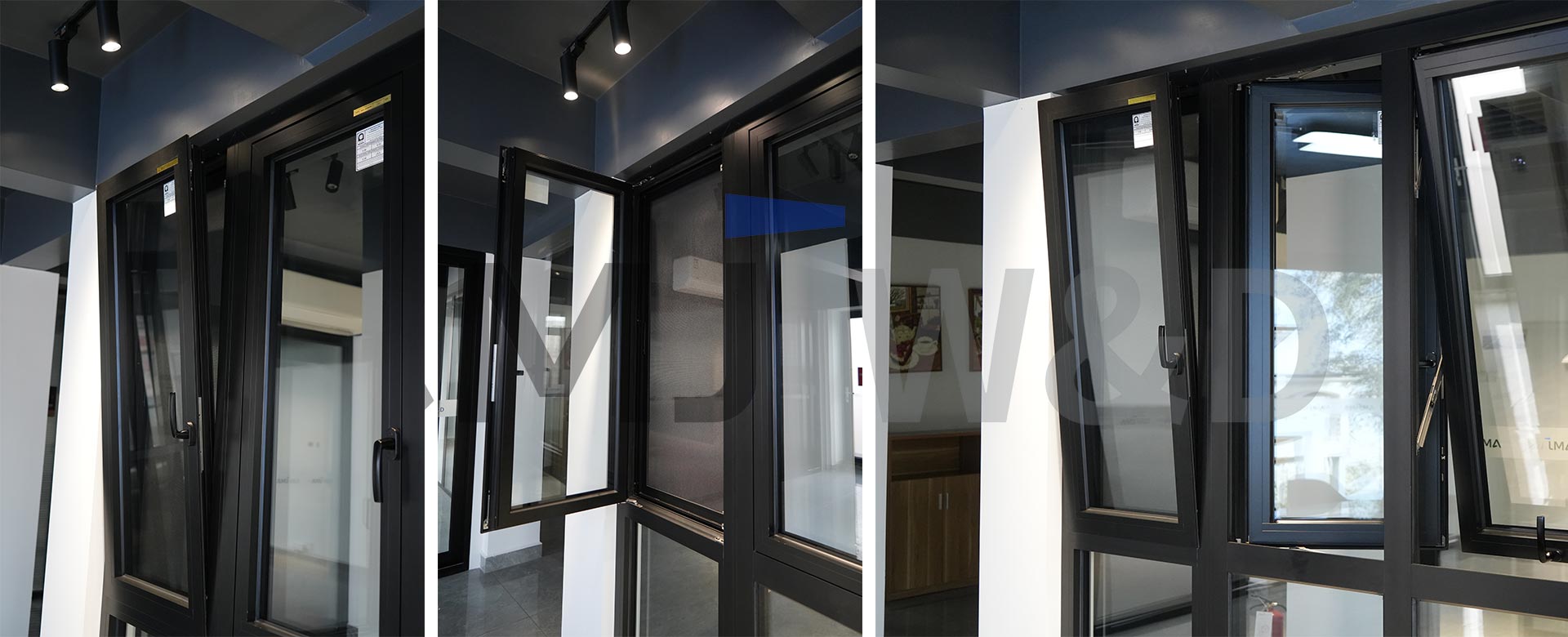

Tilt for Ventilation

The sash tilts inward at the top for controlled airflow.

Turn for Full Access

The sash opens inward for cleaning and a wider opening.

1.8mm Aluminum Profile

78.3mm System Depth

35.3mm Thermal Break

47mm Maximum IGU

≥0.21 Estimated U-Factor

More Insulation Capacity Without Changing the Familiar Operation

The sash still tilts inward for ventilation and turns inward for full access, while the deeper frame allows a wider thermal break and thicker insulated glass.

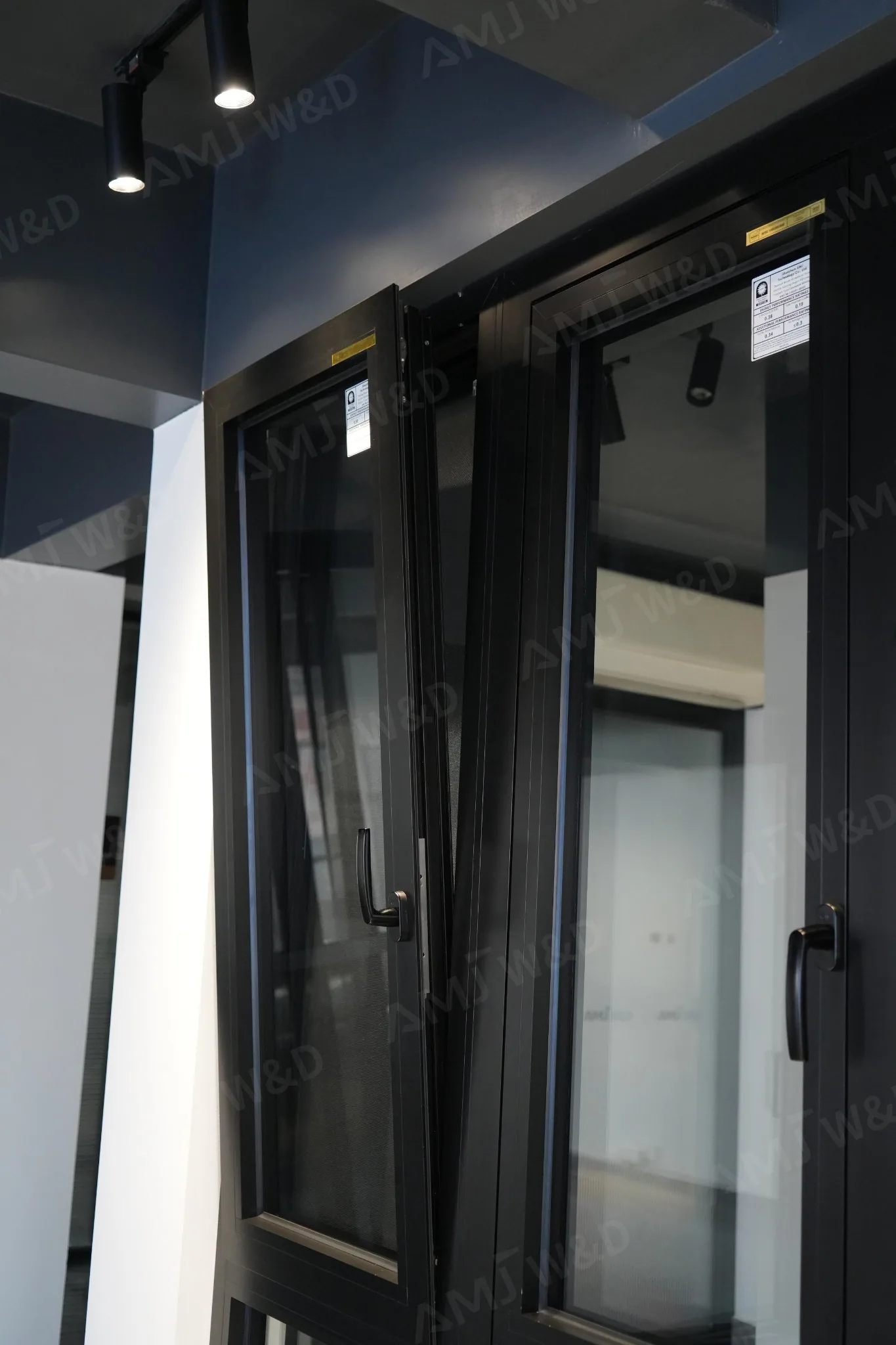

Tilt Position

Controlled Ventilation with a Wider Thermal Barrier

The top of the sash tilts inward for everyday airflow while the 35.3mm thermal break provides a wider separation between the interior and exterior aluminum sections.

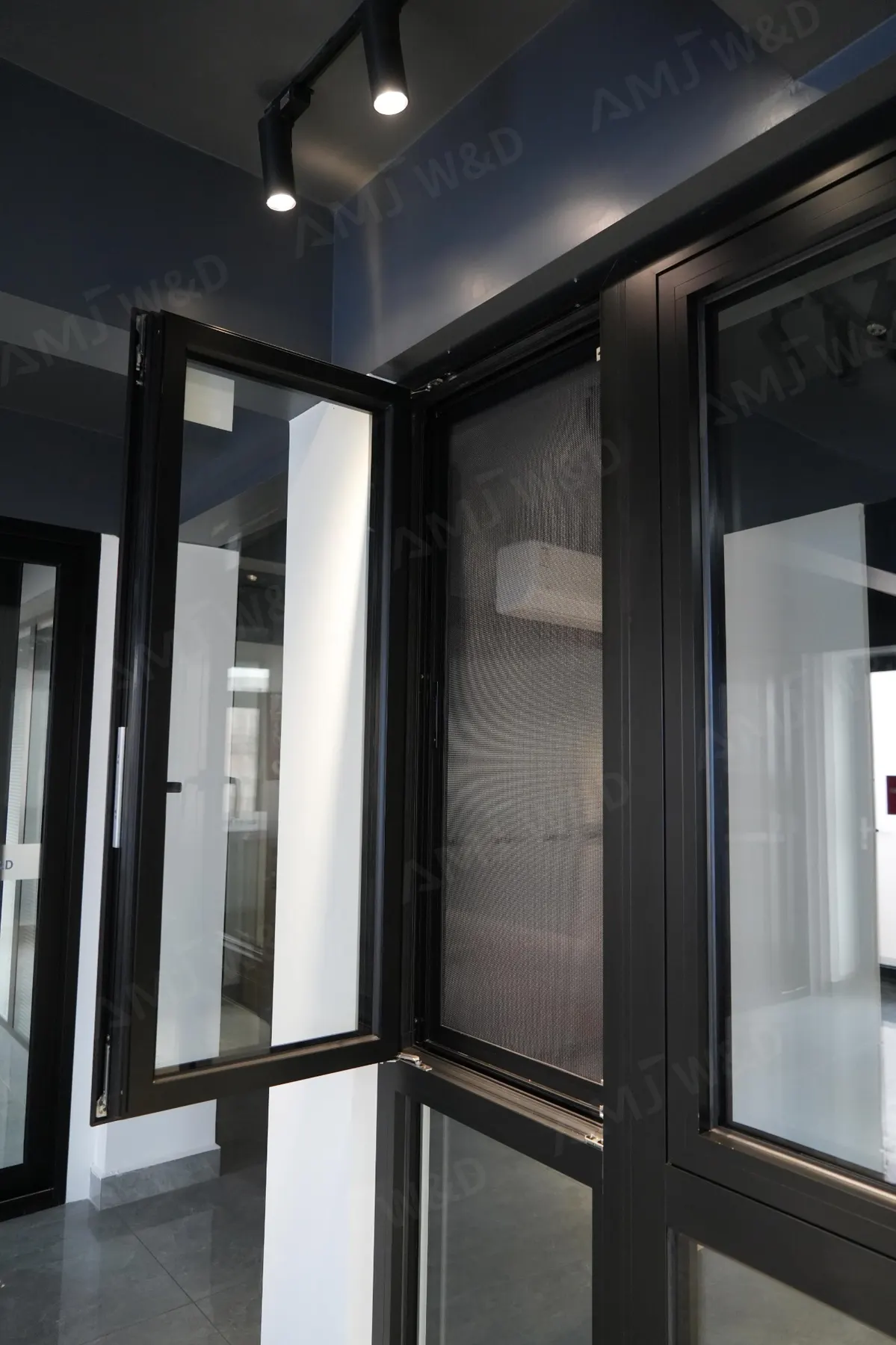

Turn Position

Full Inward Opening for Cleaning and Access

The side-hinged inward turn position provides full access to the opening and makes exterior glass cleaning easier from inside.

Up to 47mm IGU

The deeper frame supports thicker double or triple glazing.

German G-U Hardware

Black or white G-U hardware is standard; HK Kinlong is optional.

Fixed Screen Choices

Stainless steel, fiberglass, or aluminum mesh can be selected.

Configured for Higher-Insulation Residential Projects

Send the rough opening sizes, window schedule, BOQ, glass requirements, screen choice, installation detail, and project location for review.

Product Configuration

Opening method90° inward tilt-and-turn operation.

Profile thickness1.8mm.

Standard hardwareGerman G-U in black or white.

Optional hardwareHK Kinlong in black or white.

Sash size500–1000mm wide × 500–2800mm high.

Maximum sash capacity100kg.

Standard double glass5mm Low-E + 20mm argon + 5mm tempered clear glass.

Triple glazing5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm tempered clear glass.

Maximum IGU47mm.

Fixed screenStainless steel mesh, fiberglass mesh, or aluminum mesh.

InstallationNail fin or mounting tabs.

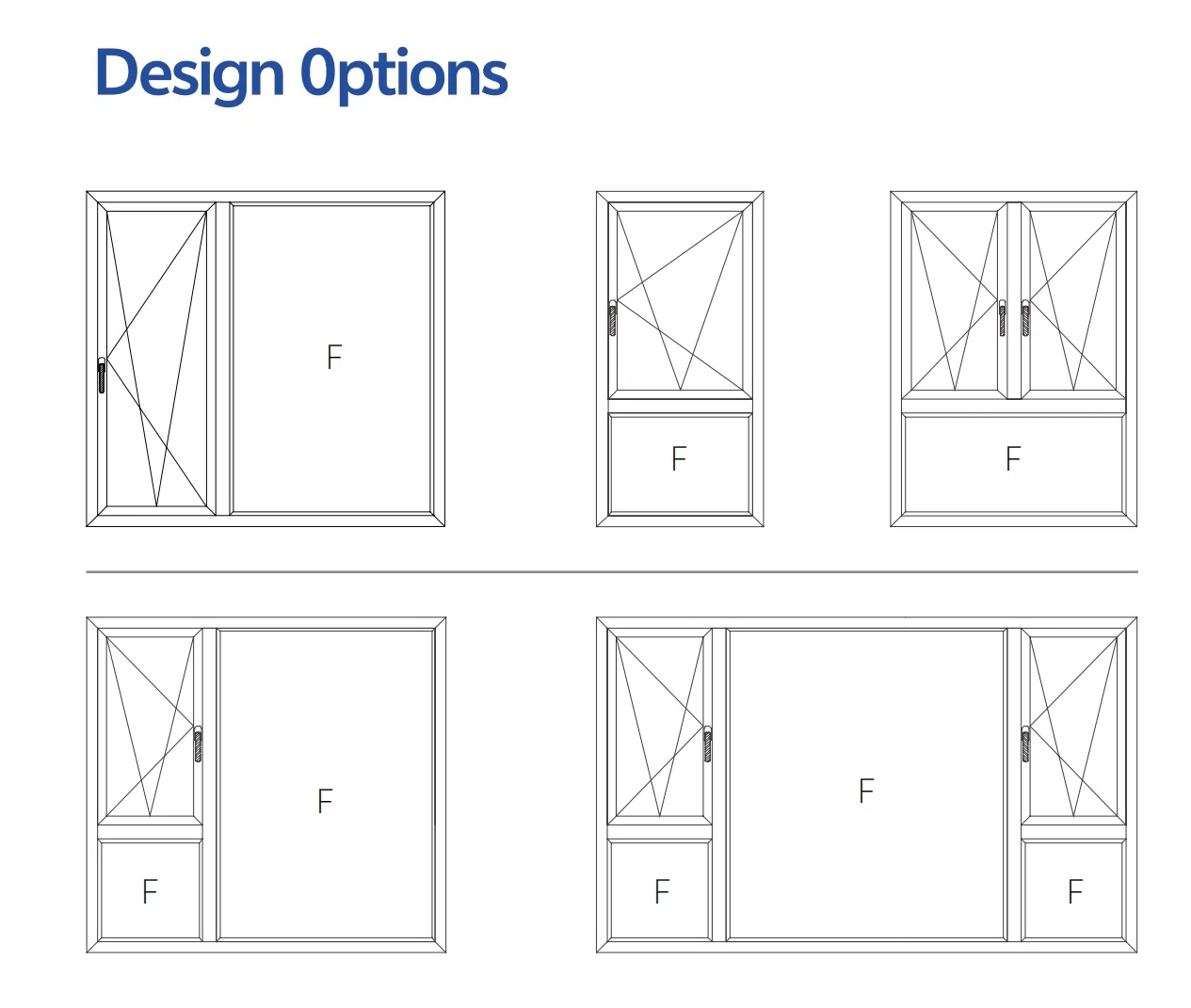

Available layoutsSingle opening, one opening with one fixed panel, pure fixed window, and 90° or 135° corner combinations.

System dimensions78.3mm system depth; 62mm frame; 70.5mm sash; 84mm mullion; 35.3mm thermal break.

Estimated Performance References

≥0.21Estimated U-Factor
BTU/(h·ft²·°F)

220PaEstimated Water Resistance

0.05 L/s·m²Estimated Air Leakage

≤2160PaEstimated Wind Pressure Resistance

37dBEstimated Sound Insulation

1.8mmAluminum Profile

All performance figures are estimated values from the latest AMJ product specification V2 dated July 23, 2026. Final values depend on window size, glass, configuration, installation, and the applicable project test report.

Single Tilt & Turn

One operable inward-opening sash.

One Opening + One Fixed

Operable sash beside fixed glass.

Pure Fixed Window

Matching fixed unit for combination layouts.

90° / 135° Corner

Corner combinations subject to drawing review.

Our Strength

Production Process Project Services Certificates

1. Checking & Alignment

2. Cutting & Punching

3. Milling Holes

4. Assembly

5. Glass Assembly

6. Packaging

7. Delivery

8. Installation

Drawing & Engineering Review

Sample Support

Quality Inspection

U.S. Showrooms

48-Hour On-Site Support

Warranty Service

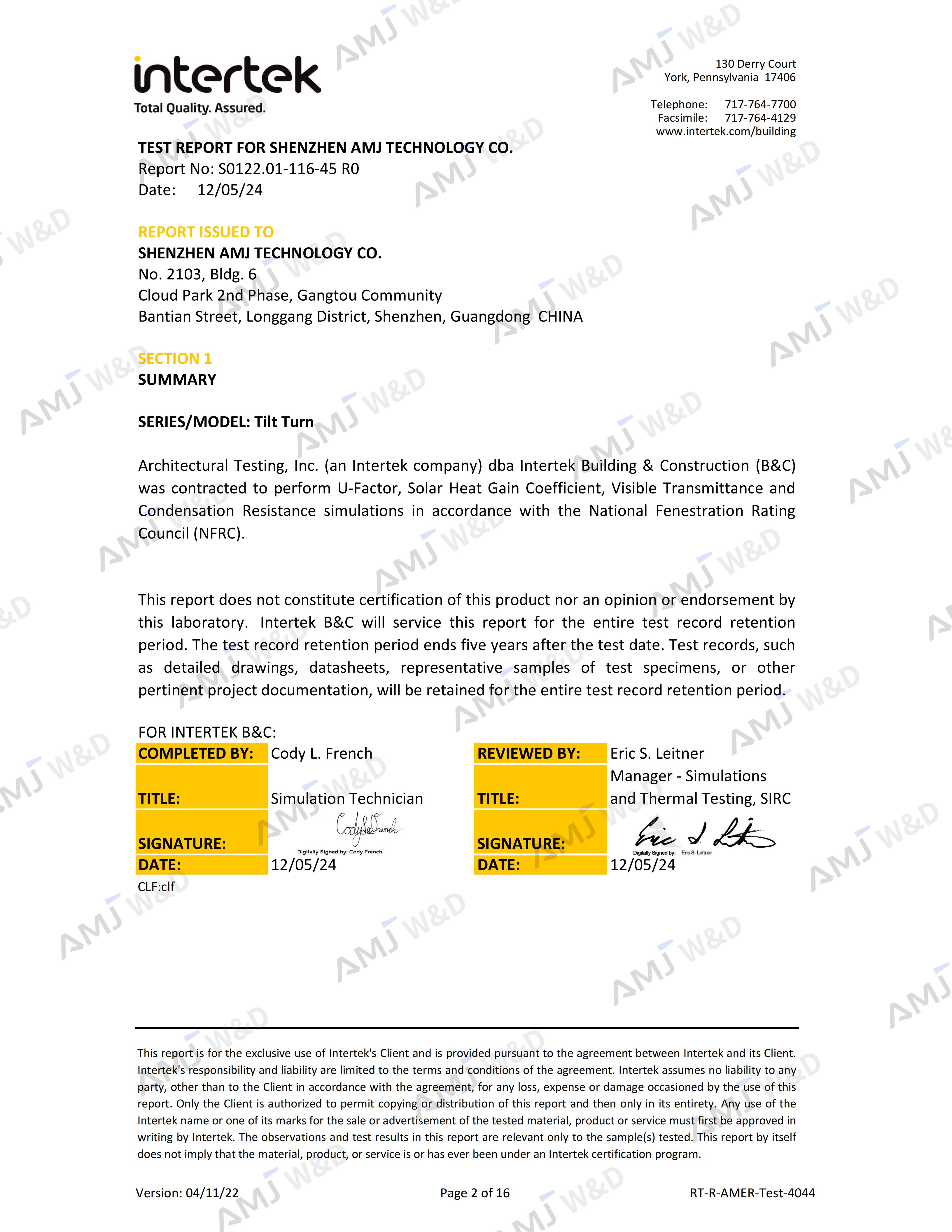

NFRC

CSA

ENERGY STAR

ISO

Key Differences Between the Three Tilt & Turn Window Systems

Only specifications that differ are included below. Shared hardware, sash size, sash capacity, screen, installation, and layout options are not repeated.

Comparison	Standard Thermal Break Tilt & Turn Window	High-Insulation Tilt & Turn Window CURRENT	Premium Triple-Glazed Tilt & Turn Window
System Depth	67mm	78.3mm	88.4mm
Frame	62mm	62mm	57mm
Sash	70.5mm	70.5mm	70.2mm
Mullion	84mm	84mm	78mm
Thermal Break	24mm	35.3mm	44mm
Standard Glass	5 Low-E + 15 Ar + 5	5 Low-E + 20 Ar + 5	5 Low-E + 12 Ar + 5 + 12 Ar + 5
Maximum IGU	39mm	47mm	62mm
Estimated U-Factor	≥0.21	≥0.21	≥0.19
Estimated Water Resistance	220Pa	220Pa	290Pa
Estimated Air Leakage	0.05 L/s·m²	0.05 L/s·m²	0.13 L/s·m²
Estimated Wind Pressure	≤2160Pa	≤2160Pa	≤2880Pa
Estimated Sound Insulation	37dB	37dB	38dB

Frequently Asked Questions

What are the main advantages of this high-insulation tilt and turn window?

It combines tilt ventilation and full inward opening with a 35.3mm thermal break, insulated glass up to 47mm, German G-U hardware, and fixed screen options.

How is it different from the standard thermal break system?

The opening method is the same. The main differences are the deeper 78.3mm frame, wider 35.3mm thermal break, 20mm argon double-glazing cavity, and 47mm maximum IGU.

Can it use triple glazing?

Yes. A 5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm configuration is listed.

What information should I send for a quotation?

Send the project location, rough opening sizes or window schedule, quantity, glass, color, screen, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

Start Your High-Insulation Tilt & Turn Window Project

Send your drawings, window schedule, rough opening sizes, or BOQ for sash sizing, glass selection, screen options, and project pricing.

Request a Project Quote Chat on WhatsApp

Here are the key questions project buyers, contractors, developers and distributors usually ask before working with AMJ.

Are you a factory?

Yes. AMJ is a factory-based aluminum window and door manufacturer in Guangdong, China, with our own production plant, technical team, equipment, QC process, and export packaging system.

What should I send for a quotation?

Please send project drawings, window and door schedule, sizes, quantities, glass requirements, frame color, hardware options, project location, and expected delivery time.

Can you customize products according to project drawings?

Yes. We can customize sizes, opening styles, glass, colors, hardware, and system solutions according to your drawings and project requirements.

Are your products suitable for export projects?

Yes. We provide aluminum window and door solutions for residential, commercial, and custom projects, and can match suitable configurations according to different market requirements.

Do you have certifications or test reports?

Yes. AMJ has NFRC, CSA and ISO management system certifications, and experience with AS2047 / AGWA requirements for the Australian market. Project-specific testing can also be arranged if needed.

What types of aluminum windows and doors do you offer?

We offer casement, sliding, awning, double hung, tilt-turn windows, as well as sliding, casement, bi-fold, pivot and other aluminum door systems.

How do you control quality before shipment?

Before shipment, we check profiles, glass, hardware, dimensions, surface finish, opening operation, sealing, assembly quality, and packaging. Photo/video inspection or third-party inspection is also available.

How do you package products for export?

We use reinforced export packaging, protective film, corner protection, foam, crates or steel frames, and clear job-site labels to reduce damage and support easier installation.

What is your normal production lead time?

Normally, production takes around 25–35 days after drawings, specifications, payment terms, and production details are confirmed. The exact lead time depends on order quantity, product system, glass, color, and hardware configuration.

What warranty and after-sales support do you provide?

AMJ provides up to 10 years product warranty depending on the product system, glass, hardware, and project conditions. We also provide installation guides, installation videos, technical support, spare parts support, and project follow-up service.

...
