Standard Thermal Break Aluminum Tilt and Turn Window

Tilt & Turn Window – Standard Thermal Break System

This aluminum tilt and turn window combines secure top ventilation with a full inward-opening position for cleaning, access, and wider airflow.

A 1.8mm profile, 24mm thermal break, German G-U hardware, insulated glass up to 39mm, and a fixed interior screen make it a practical choice for homes, apartments, townhouses, villas, and light commercial projects.

Tilt for Ventilation

The sash tilts inward at the top for controlled airflow.

Turn for Full Access

The sash opens inward for cleaning and a wider opening.

1.8mm Aluminum Profile

67mm System Depth

24mm Thermal Break

500–1000 × 500–2800mm Sash Size Range

100kg Maximum Sash Capacity

Two Opening Modes Without a Complicated Window Layout

The same sash supports everyday ventilation and full inward opening, while the frame remains compatible with common residential project details.

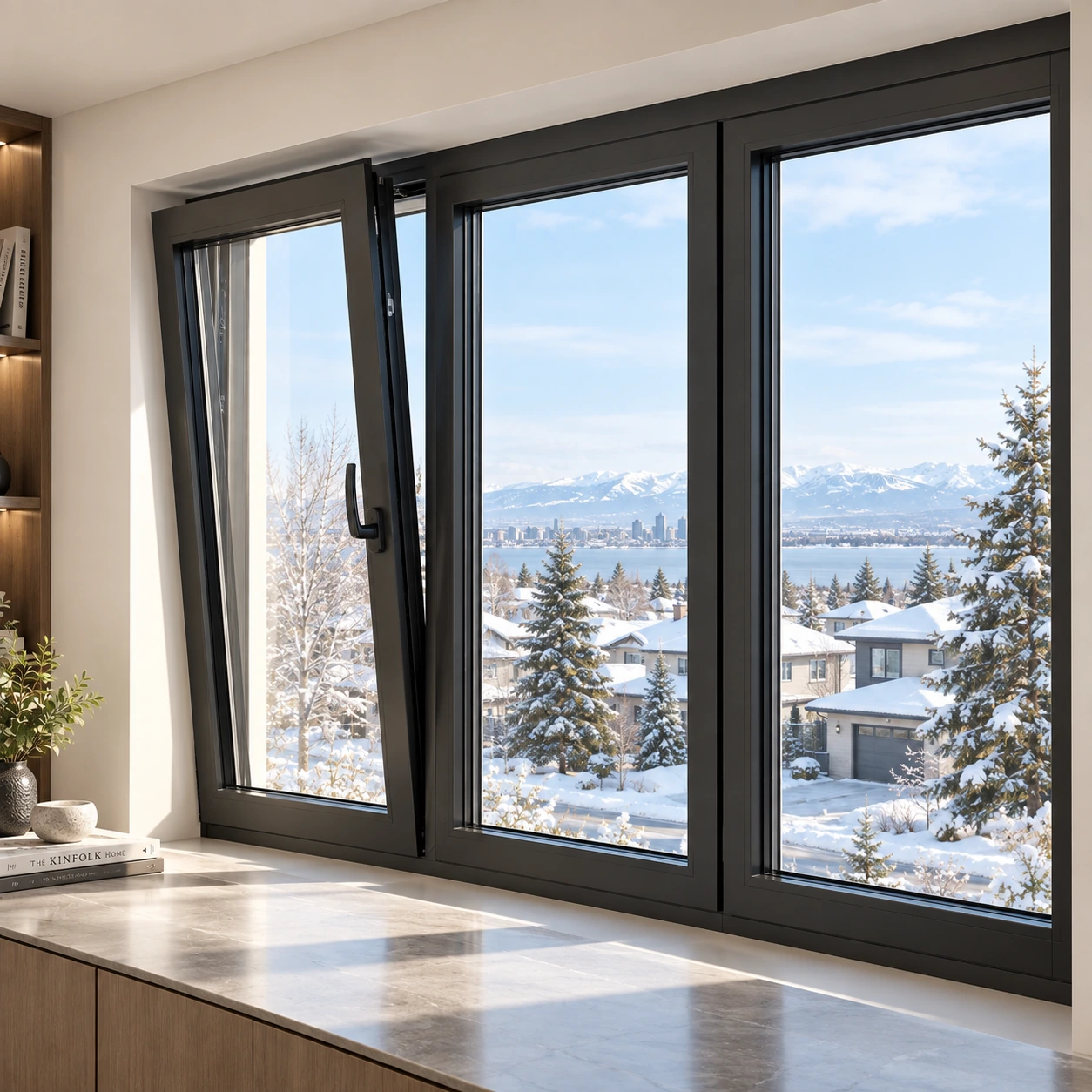

Tilt Position

Ventilation with the Sash Still Retained by the Frame

The top of the sash tilts inward for controlled airflow. This mode is useful for bedrooms, living spaces, apartments, and multi-family projects where everyday ventilation matters.

Turn Position

Full Inward Opening for Cleaning and Access

The side-hinged inward turn position gives full access to the glass and opening, making exterior glass cleaning easier from inside.

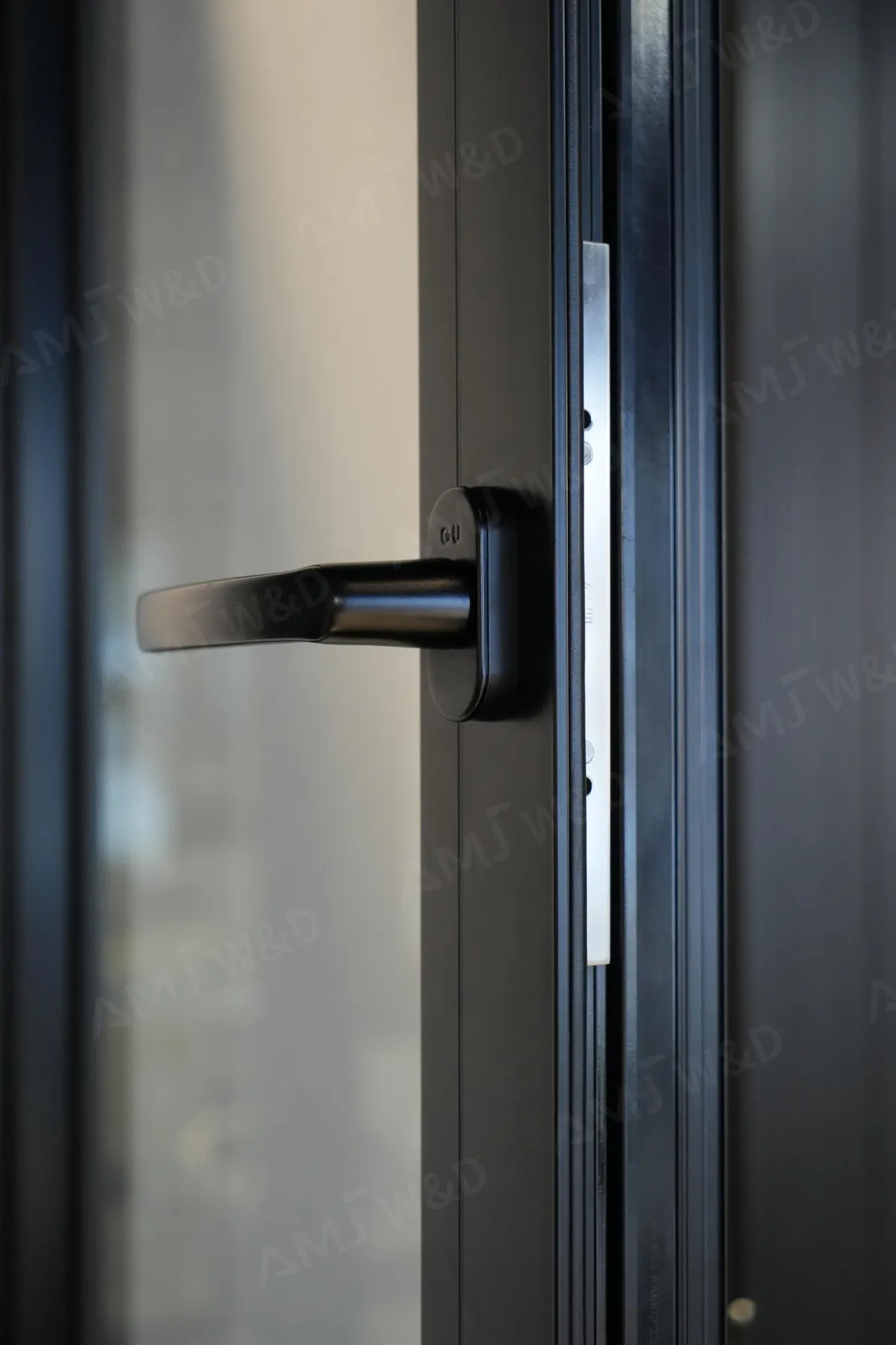

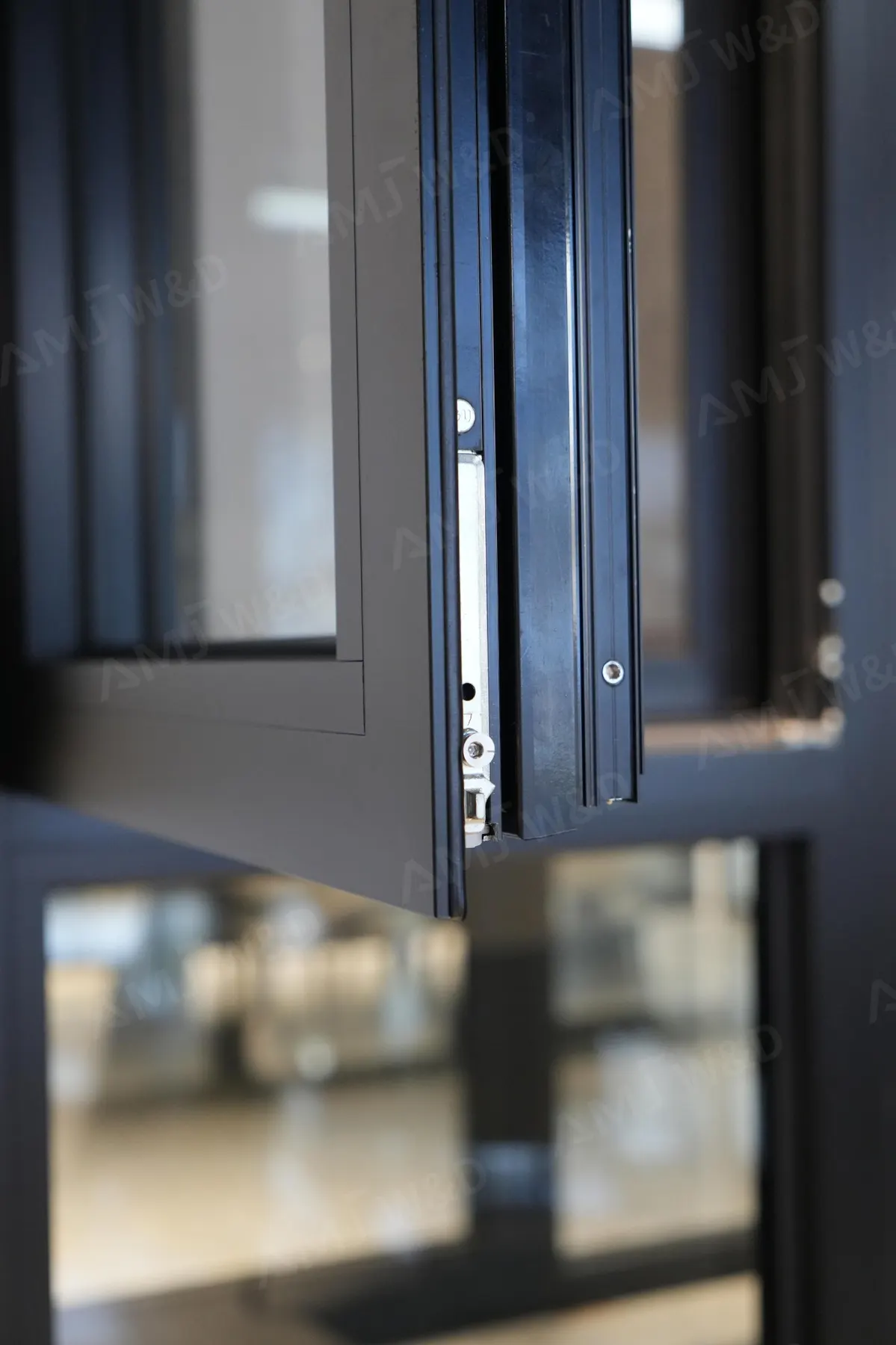

German G-U Hardware

Black or white G-U hardware is standard; HK Kinlong is optional.

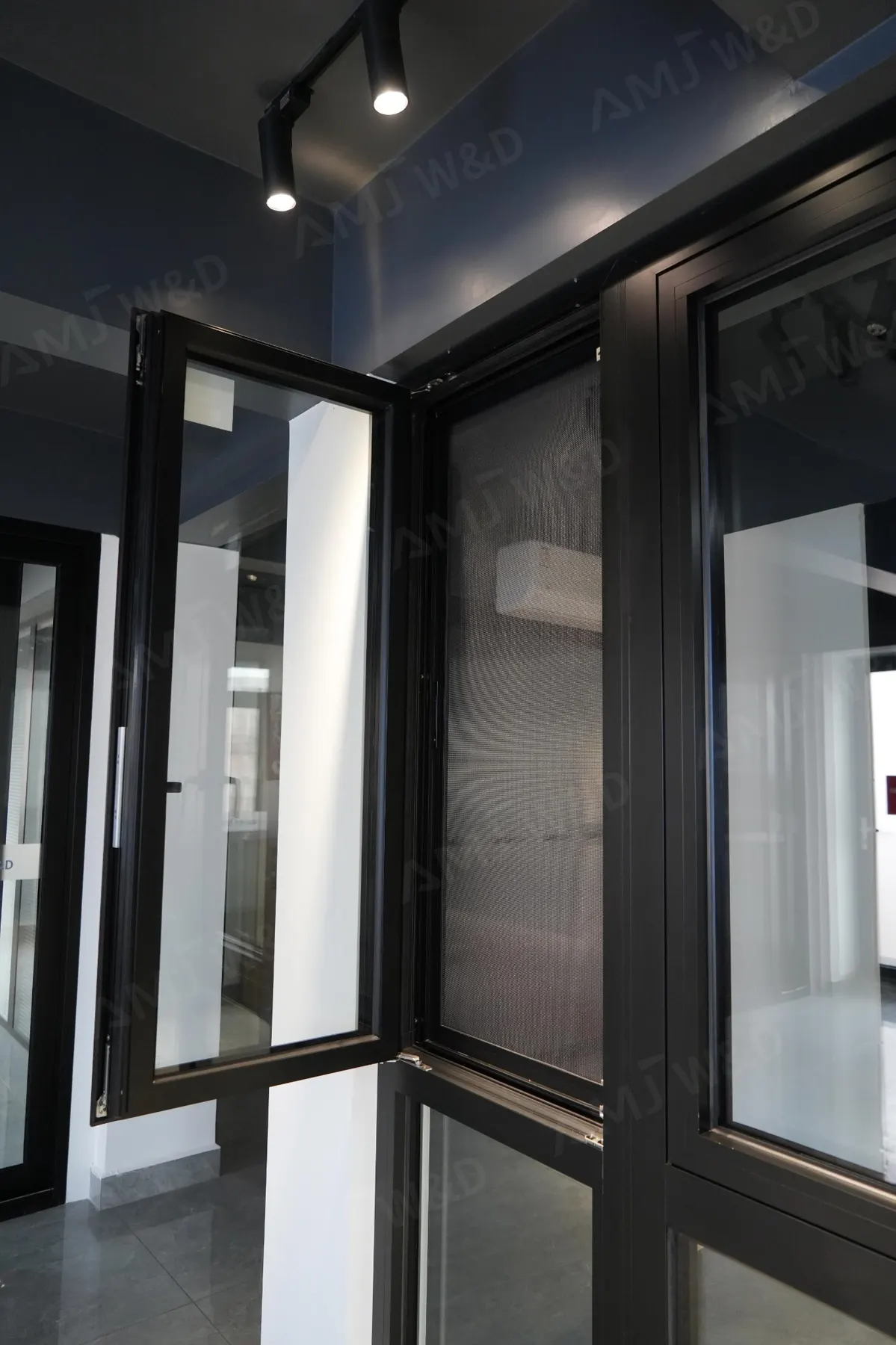

Fixed Screen Choices

Stainless steel, fiberglass, or aluminum mesh can be selected.

Project Layout Flexibility

Single opening, opening with fixed glass, fixed windows, and corner combinations are available.

Tilt & Turn Window Operation Video

See how the handle controls the tilt ventilation position and the full inward turn position.

Configured Around the Window Schedule and Project Opening

Send the rough opening sizes, window schedule, BOQ, glass requirements, screen choice, installation detail, and project location for review.

Product Configuration

Opening method 90° inward tilt-and-turn operation.

Profile thickness 1.8mm.

Standard hardware German G-U in black or white.

Optional hardware HK Kinlong in black or white.

Sash size 500–1000mm wide × 500–2800mm high.

Maximum sash capacity 100kg.

Standard double glass 5mm Low-E + 15mm argon + 5mm tempered clear glass.

Triple glazing 5mm Low-E + 12mm argon + 5mm + 12mm argon + 5mm tempered clear glass.

Maximum IGU 39mm.

Fixed screen Stainless steel mesh, fiberglass mesh, or aluminum mesh.

Installation Nail fin or mounting tabs.

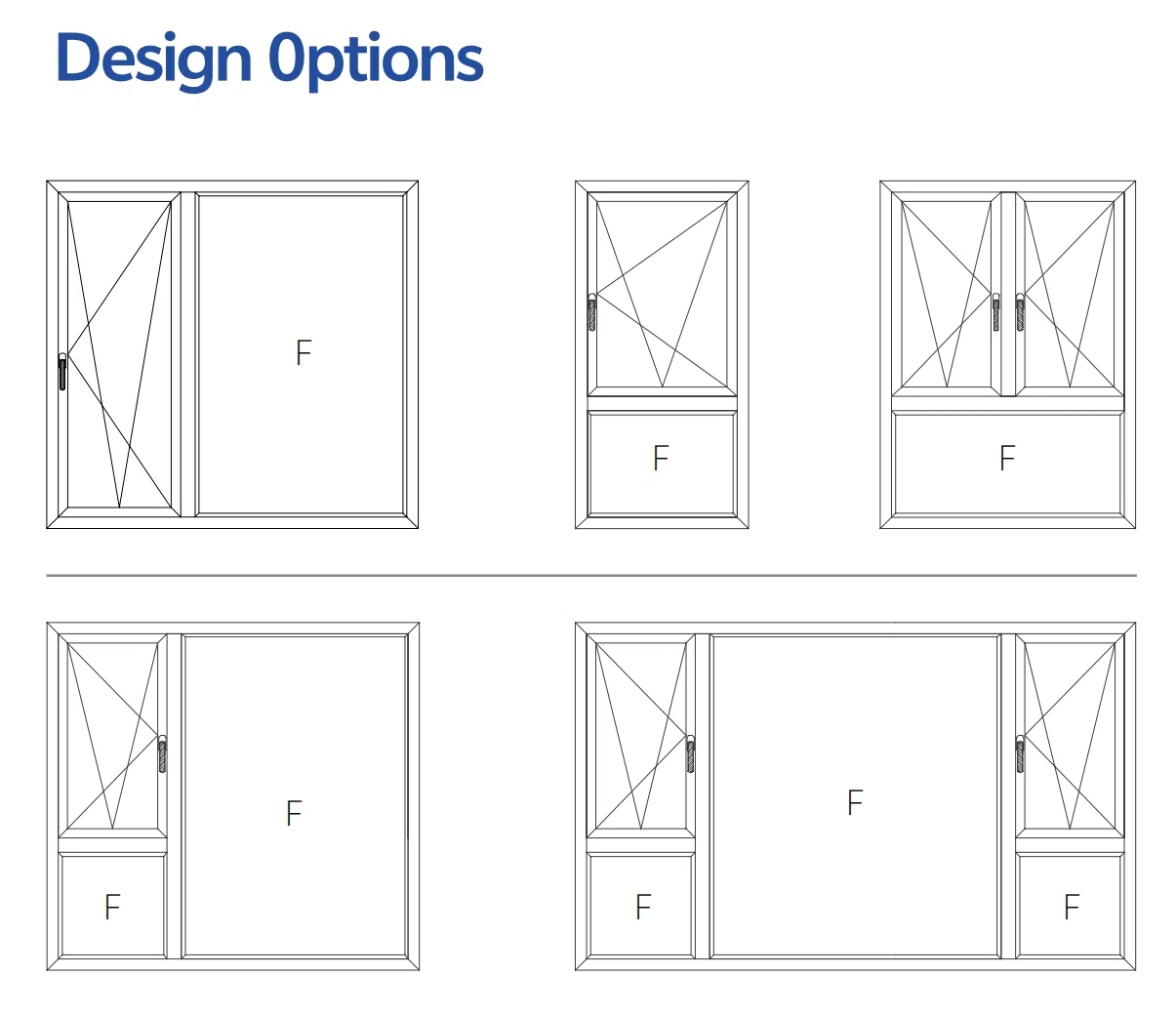

Available layouts Single opening, one opening with one fixed panel, pure fixed window, and 90° or 135° corner combinations.

System dimensions 67mm system depth; 62mm frame; 70.5mm sash; 84mm mullion; 24mm thermal break.

Estimated Performance References

≥0.21 Estimated U-Factor
BTU/(h·ft²·°F)

220Pa Estimated Water Resistance

0.05 L/s·m² Estimated Air Leakage

≤2160Pa Estimated Wind Pressure Resistance

37dB Estimated Sound Insulation

CW-PG30 Estimated Performance Rating

All performance figures are estimated values from the latest AMJ product specification V2 dated July 23, 2026. Final values depend on window size, glass, configuration, installation, and the applicable project test report.

Single Tilt & Turn

One operable inward-opening sash.

One Opening + One Fixed

Operable sash beside fixed glass.

Pure Fixed Window

Matching fixed unit for combination layouts.

90° / 135° Corner

Corner combinations subject to drawing review.

Our Strength

Production Process Project Services Certificates

1. Checking & Alignment

2. Cutting & Punching

3. Milling Holes

4. Assembly

5. Glass Assembly

6. Packaging

7. Delivery

8. Installation

Drawing & Engineering Review

Sample Support

Quality Inspection

U.S. Showrooms

48-Hour On-Site Support

Warranty Service

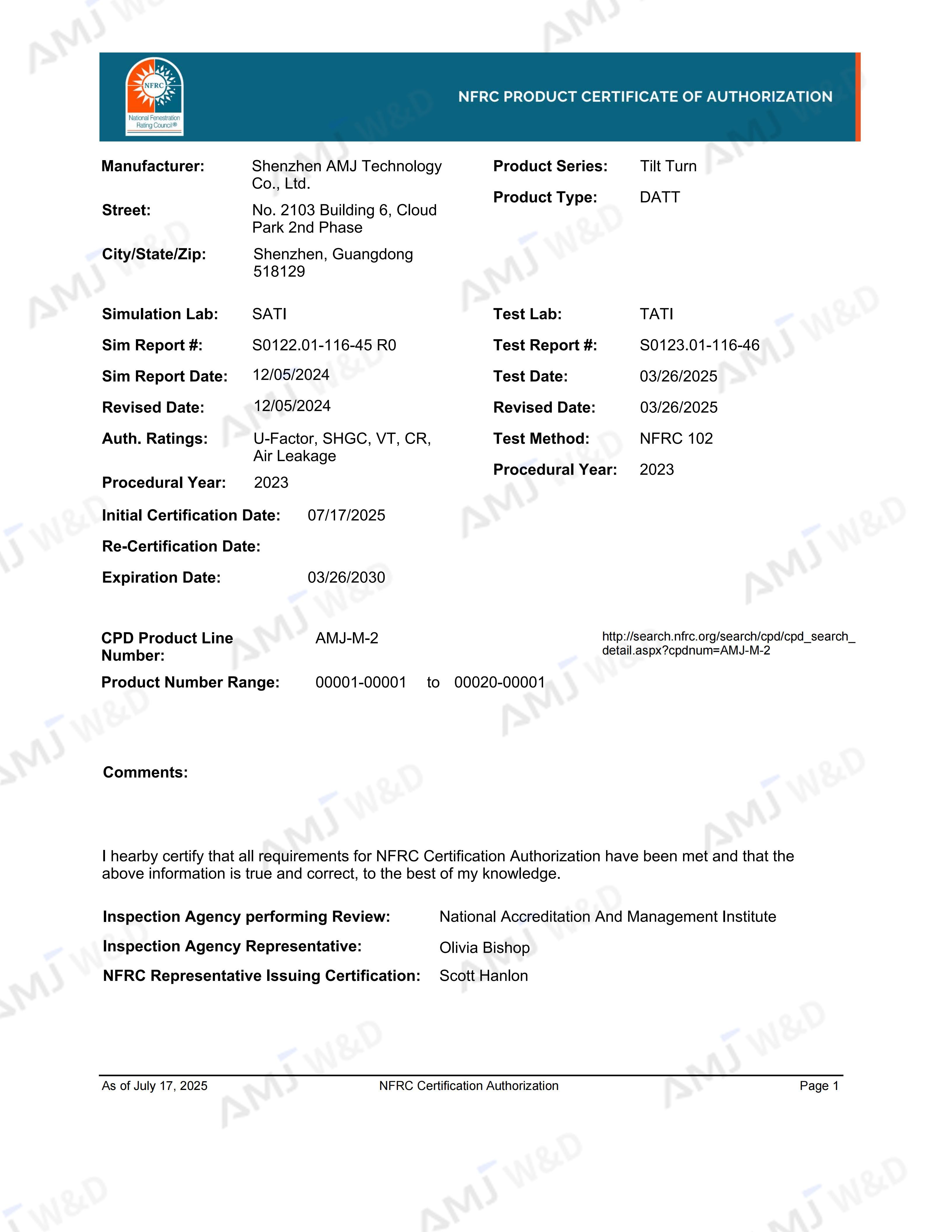

NFRC

CSA

ENERGY STAR

ISO

Key Differences Between the Three Tilt & Turn Window Systems

Only specifications that differ are included below. Shared hardware, sash size, sash capacity, screen, installation, layouts, and CW-PG30 references are not repeated.

Comparison	Standard Thermal Break Tilt & Turn Window CURRENT	High-Insulation Tilt & Turn Window	Premium Triple-Glazed Tilt & Turn Window
System Depth	67mm	78.3mm	88.4mm
Frame	62mm	62mm	57mm
Sash	70.5mm	70.5mm	70.2mm
Mullion	84mm	84mm	78mm
Thermal Break	24mm	35.3mm	44mm
Standard Glass	5 Low-E + 15 Ar + 5	5 Low-E + 20 Ar + 5	5 Low-E + 12 Ar + 5 + 12 Ar + 5
Maximum IGU	39mm	47mm	62mm
Estimated U-Factor	≥0.21	≥0.21	≥0.19
Estimated Water Resistance	220Pa	220Pa	290Pa
Estimated Air Leakage	0.05 L/s·m²	0.05 L/s·m²	0.13 L/s·m²
Estimated Wind Pressure	≤2160Pa	≤2160Pa	≤2880Pa
Estimated Sound Insulation	37dB	37dB	38dB

Frequently Asked Questions

What are the main advantages of this tilt and turn window?

It combines secure top ventilation and full inward opening in one sash, with German G-U hardware, a 24mm thermal break, fixed screen options, and insulated glass up to 39mm.

What is the difference between tilt and turn operation?

Tilt mode opens the top of the sash inward for controlled ventilation. Turn mode opens the sash inward from the side for cleaning, access, and wider airflow.

What fixed screen materials are available?

Stainless steel mesh, fiberglass mesh, and aluminum mesh are listed as fixed screen options.

What information should I send for a quotation?

Send the project location, rough opening sizes or window schedule, quantity, glass, color, screen, installation detail, and delivery ZIP code to info@amjbm.com.

What is the minimum order quantity?

We offer flexible MOQs. Sample sets can be reviewed before bulk production, and tiered pricing is available for full container load project orders.

Start Your Tilt & Turn Window Project

Send your drawings, window schedule, rough opening sizes, or BOQ for sash sizing, glass selection, screen options, and project pricing.

Request a Project Quote Chat on WhatsApp
