North American Crank Operation with a Fixed Interior Screen

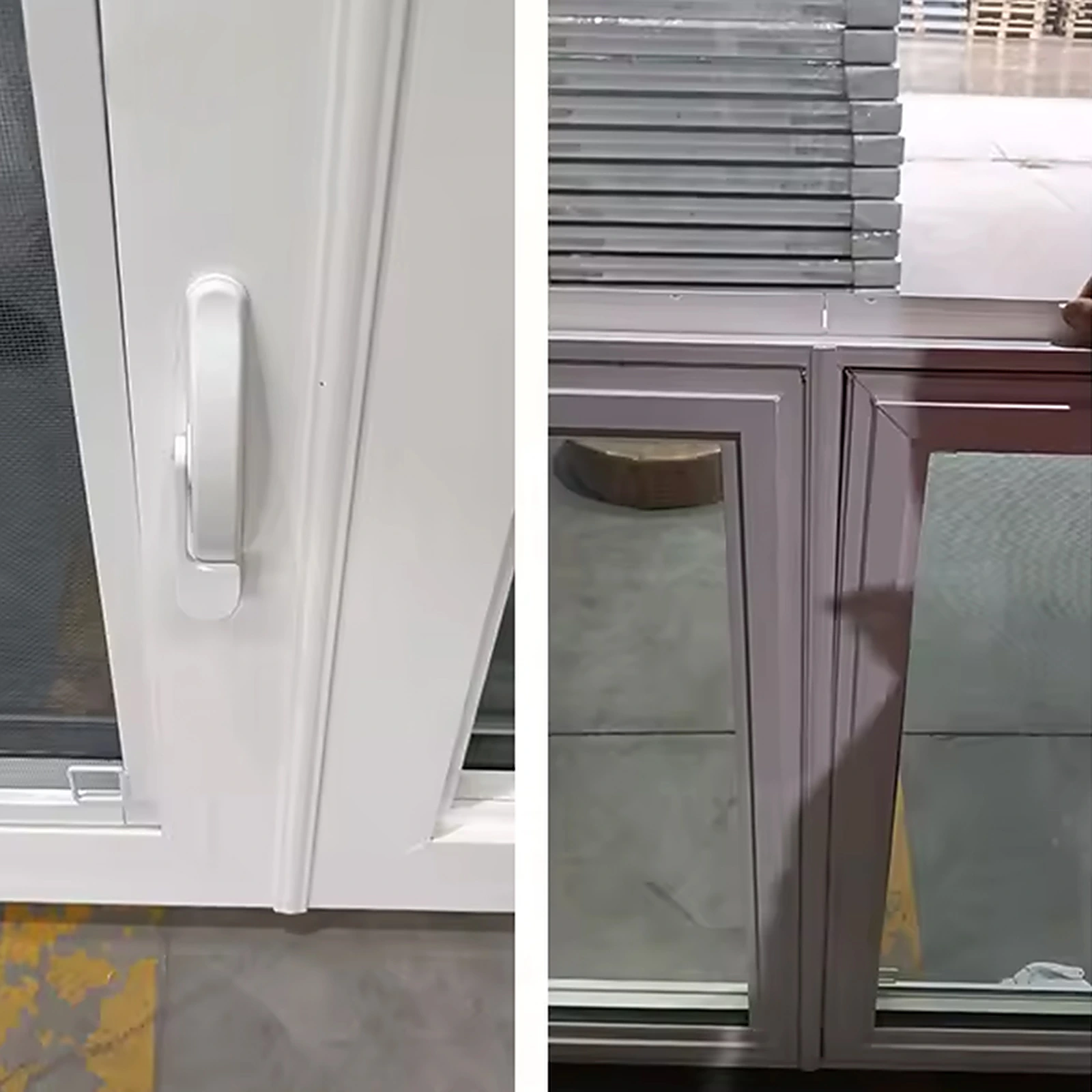

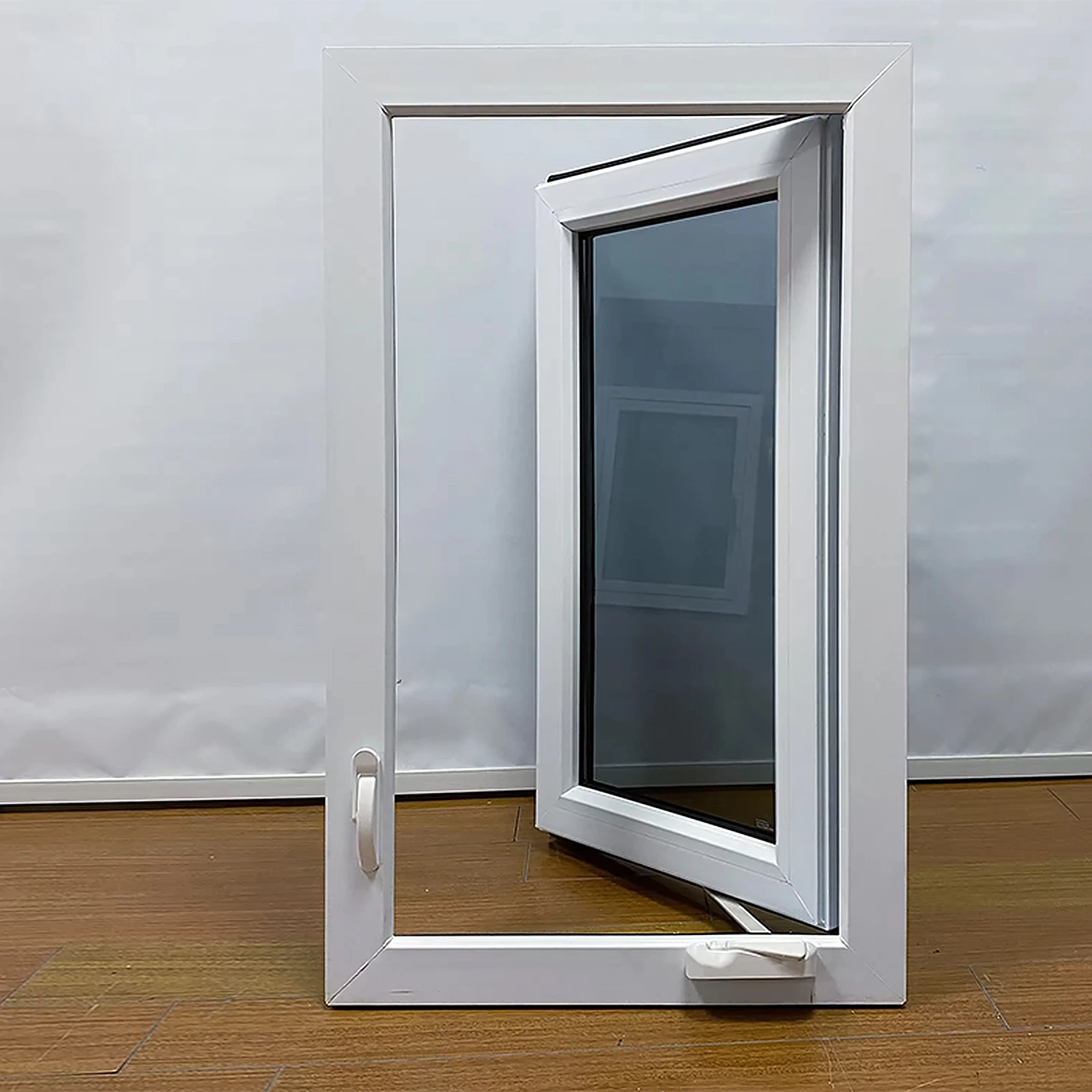

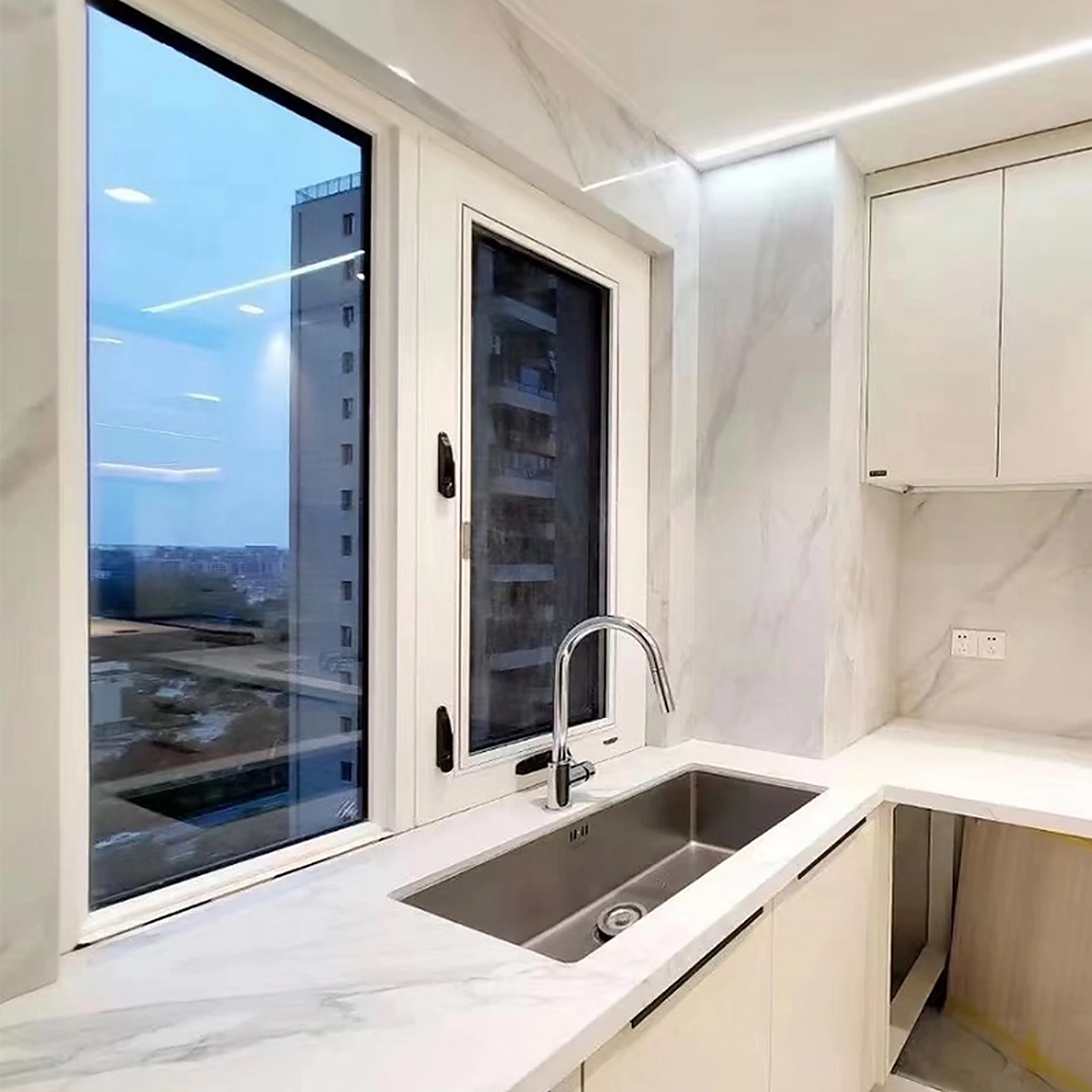

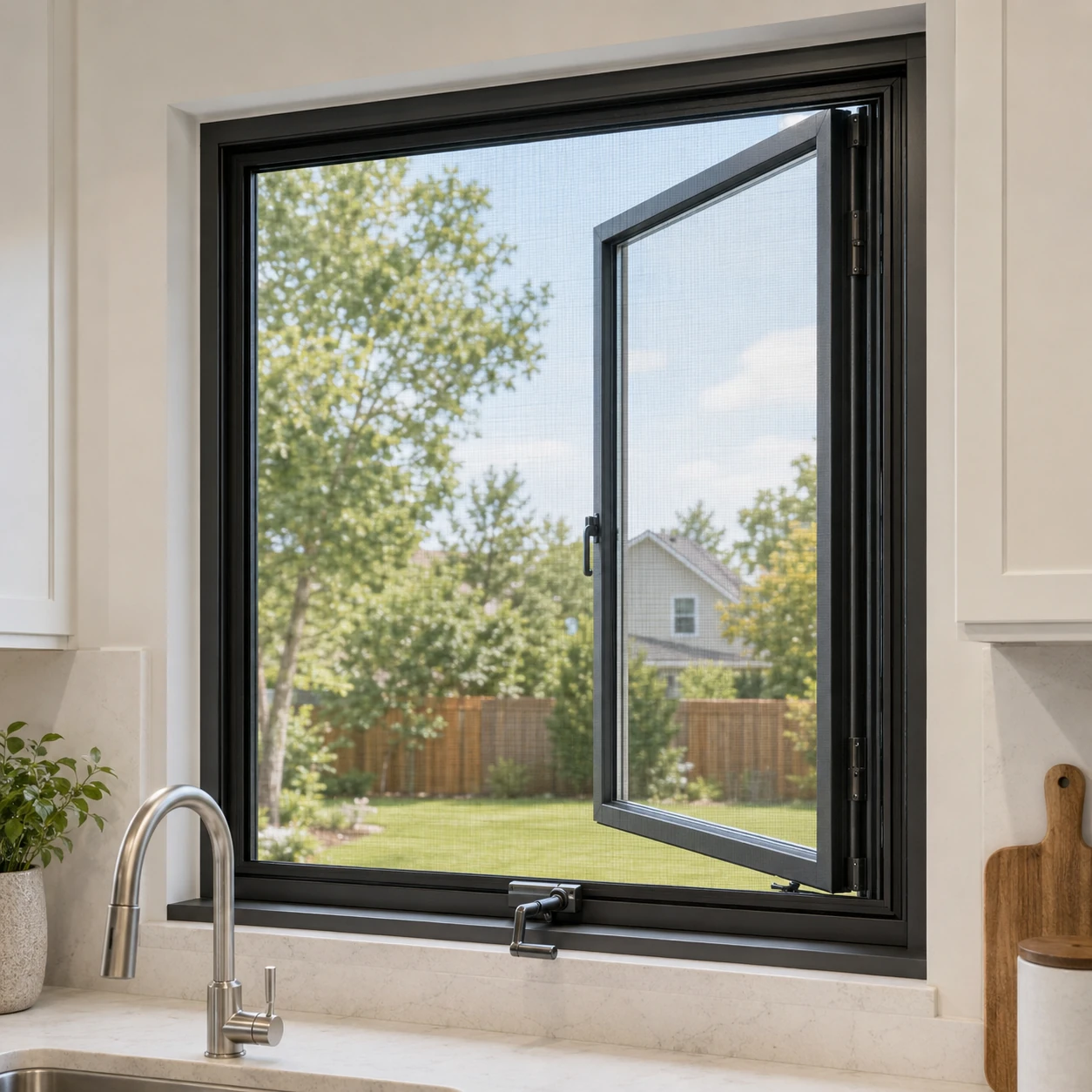

This thermal break aluminum crank-out casement window uses a hand-operated crank to open the side-hinged sash outward. The operator makes controlled ventilation easy, while the fixed interior screen stays in place.
A 102mm system depth, 2.0mm aluminum profile, Low-E argon-filled tempered glass, and project-ready installation options make it a practical choice for North American homes, apartments, townhouses, modular housing, and light commercial buildings.
Why Choose a Crank-Out Aluminum Casement Window?
The main difference is how the sash is operated. The crank gives controlled outward opening, keeps the screen on the interior, and suits familiar North American window layouts.
Smooth Crank-Out Operation
The hand crank opens and closes the sash with controlled movement, making the window easier to operate than a large sash pushed directly by hand.
Fixed Interior Screen
The insect screen remains on the room side while the glass sash opens outward. Stainless steel mesh, fiberglass mesh, and aluminum mesh are available.
Strong 2.0mm Aluminum Structure
The heavier 2.0mm aluminum profile and 102mm system depth provide a solid platform for residential and project-based window packages.
Low-E Argon Insulated Glass
Standard 5mm Low-E + 12mm argon + 5mm tempered clear glass supports indoor comfort, energy performance, and everyday sound control.
High Water and Wind References
The latest specification lists 600Pa water resistance and wind pressure resistance up to 4000Pa for properly configured units.
Practical Residential Sash Range
The crank-out casement sash is available from 450–800mm wide and 600–1800mm high, with a maximum sash weight of 60kg.
Flexible Window Combinations
Choose a single crank-out sash, fixed window, opening sash with a fixed panel, or a configuration with a fixed insect screen.
North American Installation Options
Nail fin, mounting tabs, upper and lower subframes, and angle aluminum options help match different wall details and contractor installation methods.
Configured for North American Window Packages
Send a window schedule, BOQ, rough opening sizes, or architectural drawings. The sash layout, fixed screen, glass, installation method, and finish can be reviewed before production.
Glass, Screen and Design Options
- Standard glass: 5mm Low-E + 12mm argon + 5mm tempered clear glass.
- Maximum IGU: insulated glass units up to 26mm.
- Casement sash size: 450–800mm wide × 600–1800mm high.
- Sash capacity: up to 60kg and a maximum single-sash area of 1.8m².
- Crank hardware: hand-operated crank system in black or white.
- Fixed screen options: stainless steel mesh, fiberglass mesh, or aluminum mesh.
- Available layouts: single crank-out casement, fixed window, one opening sash with one fixed panel, or a window with a fixed screen.
- Installation: nail fin, mounting tabs, upper and lower subframes, and angle aluminum.
Performance References for Project Review
- Reference U-Factor: 0.44 BTU/(h·ft²·°F), subject to the final configuration and applicable test report.
- Air leakage: reference value of 0.05 L/s·m².
- Water resistance: reference water penetration resistance of 600Pa.
- Wind pressure: reference resistance up to 4000Pa for properly engineered units.
- Sound control: reference acoustic performance of approximately 33dB.
- Thermal break construction: 20mm frame thermal break with 14.8mm sash and adapter-frame thermal breaks.
Which Aluminum Casement Window Fits Your Project?
The three systems share outward-opening ventilation, but differ in operation, frame depth, screen design, and insulated glass capacity.
Standard Thermal Break Casement Window
A balanced handle-operated system for standard residential and light commercial packages.
Cost-controlled homes, apartments, townhouses, and general project windows.
High-Insulation Aluminum Casement Window
A deeper handle-operated system with more room for thicker double or triple glazing.
Cold climates and projects requiring a wider thermal break and greater glass capacity.
North American Crank-Out Casement Window
A crank-operated system with a fixed interior screen and a sturdy 2.0mm profile.
North American-style residential projects that prioritize crank operation and a fixed screen.
Our Strength
1. Checking & Alignment
2. Cutting & Punching
3. Milling Holes
4. Assembly
5. Glass Assembly
6. Packaging
7. Delivery
8. Installation
Drawing & Engineering Review
Sample Support
Quality Inspection
U.S. Showrooms
48-Hour On-Site Support
Warranty Service
NFRC
CSA
ENERGY STAR
ISO
Frequently Asked Questions
What are the main advantages of this crank-out casement window?
The crank operator provides controlled outward opening without pushing the sash by hand. The fixed interior screen stays in place, while the 2.0mm aluminum profile, Low-E insulated glass, 600Pa water-resistance reference, and wind-pressure reference up to 4000Pa support reliable residential and project use.
Which fixed screen materials are available?
The window can be supplied with fixed stainless steel mesh, fiberglass mesh, or aluminum mesh. The best option depends on ventilation, durability, and project requirements.
What information should I send for a quotation?
Send drawings, rough opening sizes, BOQ or a window schedule, quantity, project location, glass, color, screen option, and delivery target to info@amjbm.com.
What is the minimum order quantity?
We offer flexible MOQs. You can order sample sets for evaluation, and we provide competitive tiered pricing for full container load (FCL) project orders.
What are the typical lead time and warranty?
Standard production can start from approximately 25 days after drawing and material approval. Larger customized projects commonly require 30–55 days. The standard warranty is 7 years.
Start Your Crank-Out Casement Window Project
Send your drawings, BOQ, window schedule, or rough opening sizes for screen, glass, installation, and project pricing review.
