Foshan AMJ Windows and Doors Co., Ltd. That structural difference matters more than appearance. A picture window is mainly a glass-and-frame decision. A bay window also becomes a building projection that needs support, weatherproofing and coordination with the surrounding wall.
Picture Window vs Bay Window: Quick Comparison
| Decision Point | Picture Window | Bay Window |
|---|---|---|
| Basic structure | One fixed window or a fixed combination in the wall plane. | Several panels project outward from the wall. |
| Ventilation | A picture window itself does not open; pair it with operable units if ventilation is needed. | Side panels may be operable depending on the design. |
| Interior space | Does not create a projecting interior alcove. | Can create a ledge or small interior projection. |
| Installation | Generally simpler wall opening and perimeter coordination. | Needs additional support and weatherproofing around the projection. |
| Best use | Views, daylight, large fixed glass and clean elevations. | Architectural projection and added interior depth. |

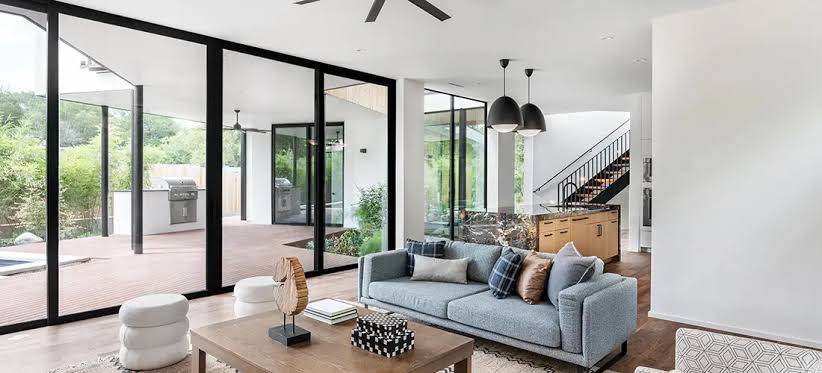

When a Picture Window Is the Better Fit
Large view, simple structure
If the project wants a large piece of fixed glass without changing the wall geometry, a picture window is usually the more direct solution.
Combination window layouts
A fixed center panel can be paired with casement or awning sections where ventilation is required.
Repeated project openings
For apartments, townhouses or hotels, fixed and combination windows can be easier to repeat because they do not add a projecting bay structure to every opening.

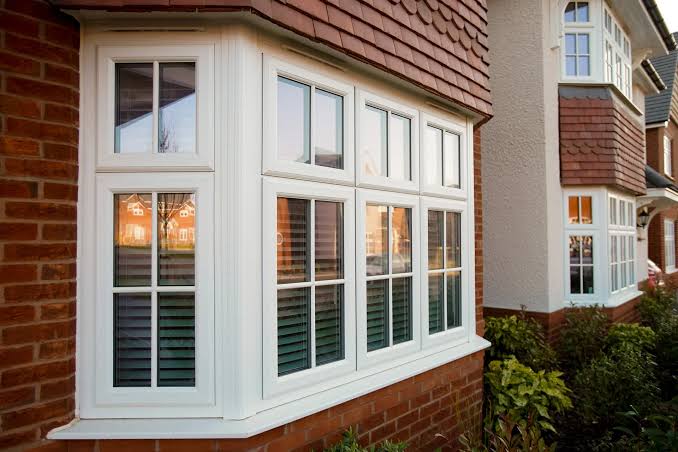

When a Bay Window Is the Better Fit
A bay window makes sense where the architecture intentionally calls for a projection. The project team needs to coordinate structural support, flashing, cladding transitions and the panel angles before the wall opening is built.
Large Picture Windows Still Have Glass Limits
| Glass Build-Up | Maximum Area | Maximum Short Side for Fully Framed Glass |
|---|---|---|
| 5 + 12A + 5 mm | 3.3 m² | 1.6 m |
| 6 + 12A + 6 mm | 4.4 m² | 1.9 m |
| 8 + 9A + 8 mm | 6.6 m² | 2.4 m |
A glass pane needs to satisfy both the area limit and the edge-dimension limit. Final picture-window size also depends on frame capacity, mullion layout and project performance.
Applications
- Living room: picture window for the main view; add operable side units only if ventilation is needed.
- Stairwell: fixed picture window where daylight matters more than operation.
- Hotel or apartment: repeatable fixed/operable combinations can simplify the window schedule.
- Feature façade: bay window only where the projected geometry is part of the architectural design.
FAQ
Are picture windows still in style?Yes. Large fixed glass remains useful where a project wants daylight, views and a clean modern elevation.
Are picture windows a good idea?They are a good fit when ventilation is not needed from that specific opening. If airflow is required, combine the fixed panel with an operable unit.
What are the disadvantages of bay windows?They are more complex to support and weatherproof because they project beyond the wall.
Are picture windows less expensive?They can be simpler than projected bay assemblies, but price still depends on glass size, frame, finish, quantity and installation conditions.
Send your elevation, opening size and ventilation requirements. AMJ can review a fixed or combination aluminum window proposal.
